48V 36V 24V to 12V Step Down DC-DC Converter Input(20V-60V) Voltage Buck Reducer Regulator Transformer (30A 360W)
- Input Voltage Range: DC 20V-60V / Output Parameters: DC 12V, 30A, 360W.Please ensure that the input power is greater than the load power. This product is only used for power conversion

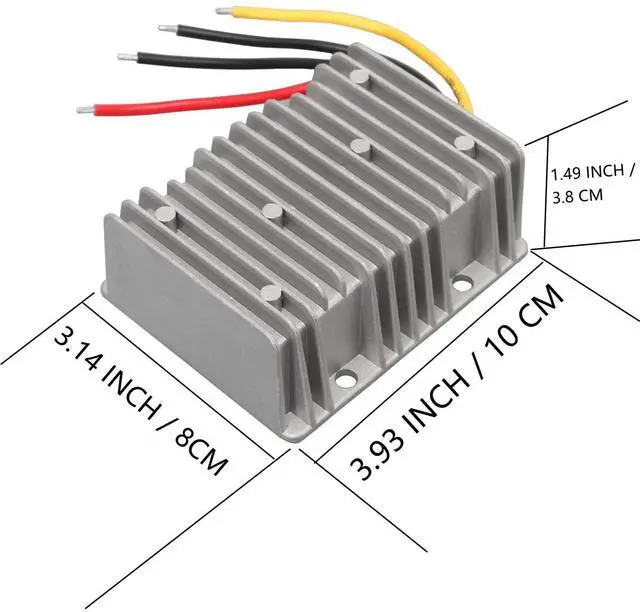

- Wiring:Red: Input + Black: Input - Yellow: Output + Black: Output - Size: 3.93* 3.14 *1.49 inches / 100*80*38mm AWG:12
- High conversion efficiency:Synchronous Rectification Technology, multiple intelligent protection functions,conversion efficiency up to 95%.Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
- Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product model: 48V to 12V
DC Step Up ConverterOutput current: 30AOutput
power:
360WBrand: KAABEE
Input voltage: between DC (20-60)
VOutput voltage: DC
12VVoltage accuracy: 1%Load
regulation rate: 0.2
%Linear adjustment rate: 0.2
%No load current:
24mARipple: 80mAConversion
efficiency: 94%
- 96%Module nature: DC-DC non isolated power supplyProtection grade: IP67Operating
temperature: - 35
C~+80 CBoundary dimension: 100 * 80 * 38Net weight: 450gWiring
mode: lead, line
length 12CMRepair time: 1
yearService life: 100, 000 hours
DC Step Up ConverterOutput current: 30AOutput
power:
360WBrand: KAABEE
Input voltage: between DC (20-60)
VOutput voltage: DC
12VVoltage accuracy: 1%Load
regulation rate: 0.2
%Linear adjustment rate: 0.2
%No load current:
24mARipple: 80mAConversion
efficiency: 94%
- 96%Module nature: DC-DC non isolated power supplyProtection grade: IP67Operating
temperature: - 35
C~+80 CBoundary dimension: 100 * 80 * 38Net weight: 450gWiring
mode: lead, line
length 12CMRepair time: 1
yearService life: 100, 000 hours
