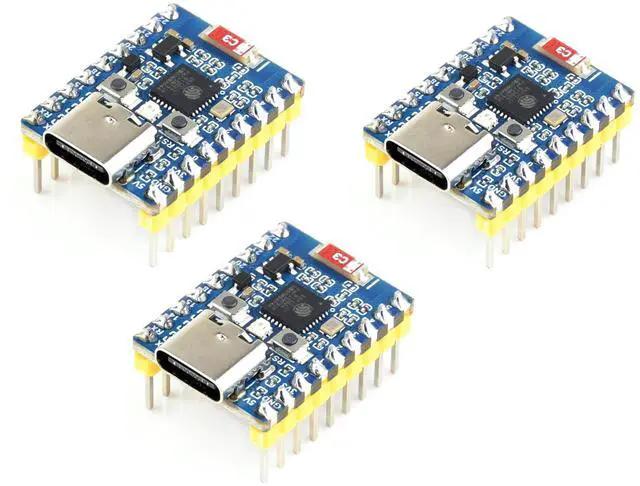

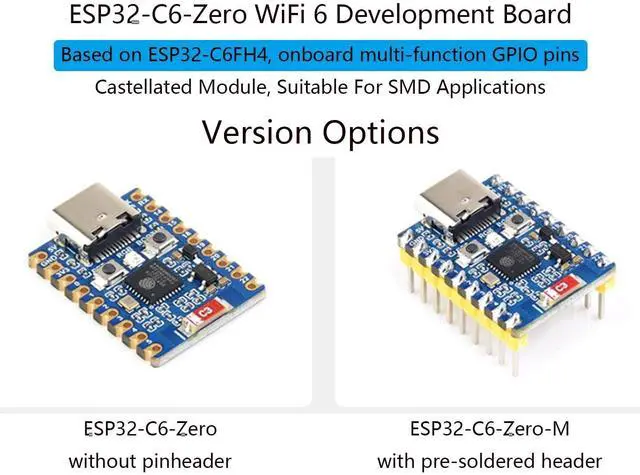

3PCS ESP32-C6 Mini Development Board with Pre-Soldered Header, Based on ESP32-C6FH8, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board

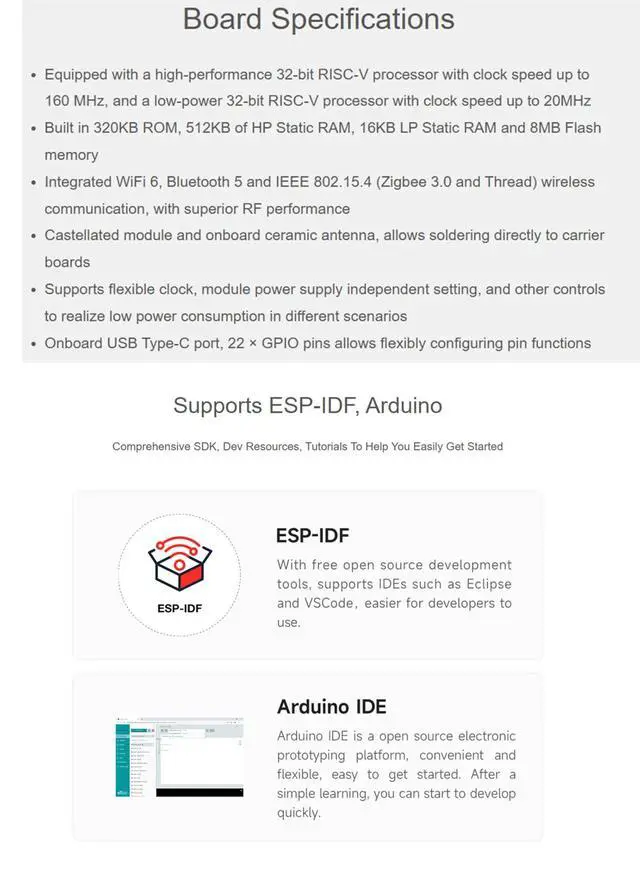

- ESP32-C6-Zero WiFi 6 Development Board. Based on ESP32-C6FH8, onboard multi-function GPIO pins. Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz.
- Built in 320KB ROM, 512KB of HP Static RAM, 16KB LP Static RAM and 8MB Flash memory.

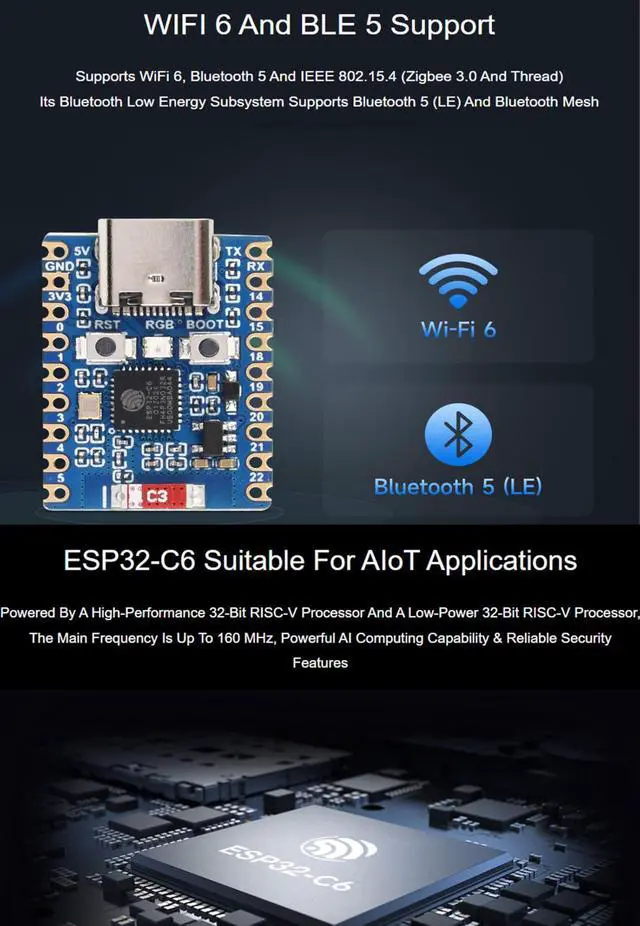

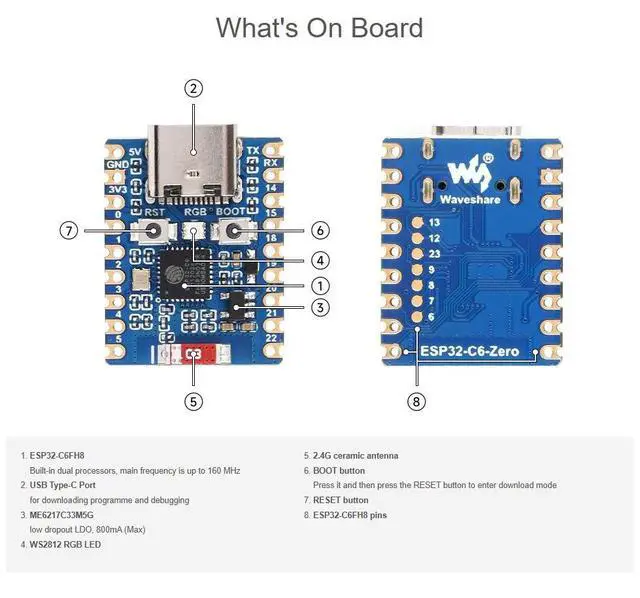

- Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards.
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. Onboard USB Type-C port, 22 GPIO pins allows flexibly configuring pin functions.
- We provide Online How-to-use Document/User Manual for reference: bit.ly/4pKgPOu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-C6-Zero WiFi 6 Development Board. Based on ESP32-C6FH8, onboard multi-function GPIO pins. Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz. ^^ Built in 320KB ROM, 512KB of HP Static RAM, 16KB LP Static RAM and 8MB Flash memory. ^^ Integrated WiFi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards.
^^ Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. Onboard USB Type-C port, 22 GPIO pins allows flexibly configuring pin functions. ^^ We provide Online How-to-use Document/User
Manual for reference: bit. ly/4pKgPOu
^^ Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. Onboard USB Type-C port, 22 GPIO pins allows flexibly configuring pin functions. ^^ We provide Online How-to-use Document/User
Manual for reference: bit. ly/4pKgPOu
