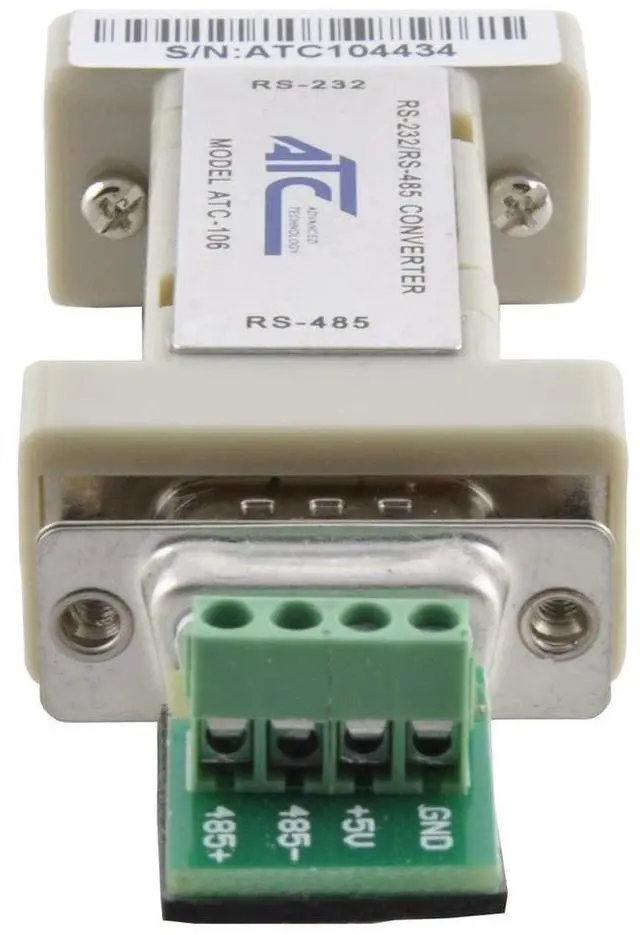

GRIDCONNECT ATC-106 RS232 to RS485 DB9 Converter Non-Isolated
- BAUD RATE up to 115 K. DIMENSIONS88 x 33 x 17 mm. MPN ATC-106
- PRODUCT POWER SUPPLY - Self powered using TX,RX,RTS,CTS RS232 signals and can be powered using +5VDC/40mA if RS232 is not strong enough

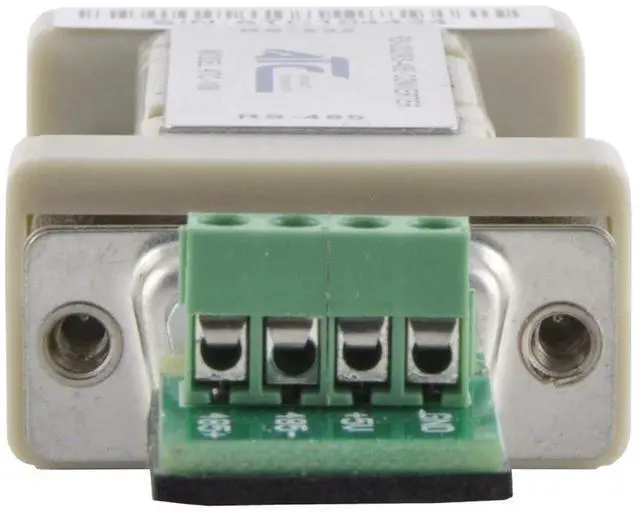

- SERIAL INTERFACES - RS232: DB9 Female, RS485: DB9 Male / 4 position terminal block
- SERIAL TYPES - RS232, RS485 TRANSMISSION DISTANCE: 0-1200 m @ 24 AWG
- TEMPERATURE RANGE - Operating: -0C to +50C (32F to 122F). Humidity: 5% to 95%
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The ATC-106 converts a DB9 RS232 female connection to a DB9/4 position terminal block RS485 half duplex connection. The ATC-106 is non-isolated and derives power from the RS232 TX/RX signals. The GC-ATC-106 can go up to 115K baud. The GC-ATC-106NH can go up to 460K.
