Innomaker USB3 Vision Industrial Camera IMX296 1.58MP Monochrome Global Shutter Camcorder, 1456x1088@60FPS, GenICam Compliant, Hardware Trigger & Strobe, Arbitrary ROI

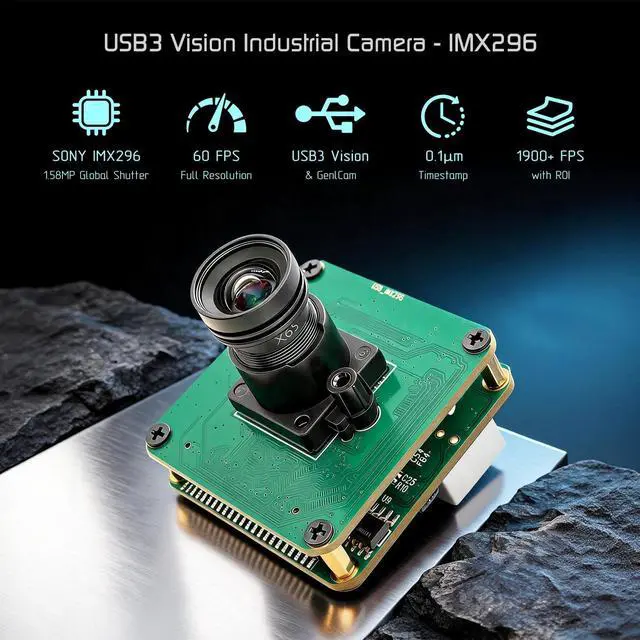

- High-Performance IMX296 Sensor: 1/2.9" global shutter CMOS with 1.58MP (1456x1088) resolution, 3.45m pixels, and true 60FPS at full resolution (MONO8) delivers distortion-free imaging for motion analysis, scientific research, and high-speed industrial applications

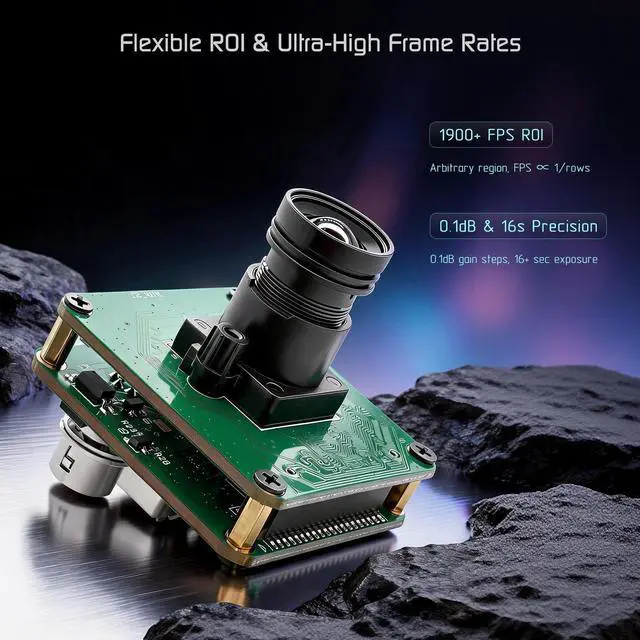

- Flexible ROI & Ultra-High Frame Rates: Arbitrary single-region ROI support boosts frame rates inversely with rows, exceeding 1900FPS in reduced-height modes, analog gain 0-48dB (0.1dB steps) and long exposure up to 16+ seconds for precise control

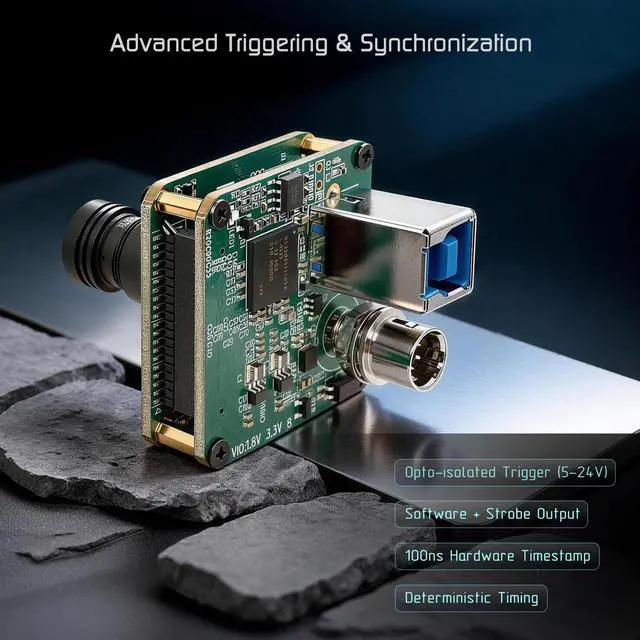

- Advanced Triggering & Synchronization: Opto-isolated hardware trigger (5-24V), software trigger, and strobe output with 0.1s (100ns) hardware timestamping for deterministic timing in robotic pick-and-place, inspection, and area-scan emulation

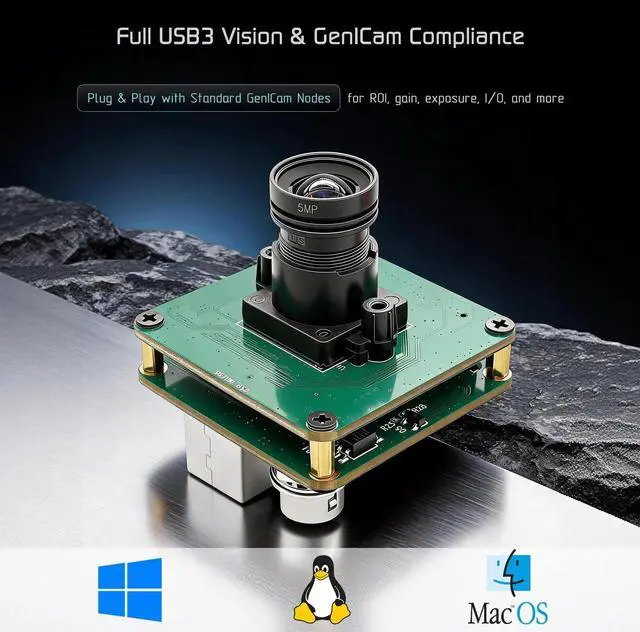

- Full USB3 Vision & GenICam Compliance: 100% plug & play with standard GenICam nodes for ROI, gain, exposure, I/O, and more, includes on-board temperature sensor, "Find Me" LED, and unique 64-bit serial number for multi-camera setups
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High-Performance IMX296 Sensor: 1/ 2.9" global shutter CMOS with 1.58MP (1456x1088) resolution, 3.45 m pixels, and true 60FPS at full resolution (MONO8) delivers distortion-free imaging for motion analysis, scientific research, and high-speed industrial applications ^^ Flexible ROI & Ultra-High
Frame Rates: Arbitrary single-region ROI support boosts frame rates inversely with rows, exceeding 1900FPS in reduced-height modes, analog gain 0-48dB ( 0.1 dB steps) and long exposure up to 16+ seconds for precise control ^^
Advanced Triggering & Synchronization: Opto-isolated hardware trigger (5-24V), software trigger, and strobe output with 0.1 s (100ns) hardware timestamping for deterministic timing in robotic pick-and-place, inspection, and area-scan emulation ^^ Full USB3 Vision & GenICam Compliance: 100% plug & play with standard GenICam nodes for ROI, gain, exposure, I/O, and more, includes on-board temperature sensor, "Find Me" LED, and unique 64-bit serial number for multi-camera setups ^^ Rugged Industrial Design with
Lens Options: Default M12 lens (YT10068-2mp 6MM, no IR filter), optional CS lens (FA1614/10MP/C), compatible with Aravis, eBUS Player, OpenCV on Windows/Linux/macOS, includes USB 3.0 cable and 6-pin Hirose trigger cable
Frame Rates: Arbitrary single-region ROI support boosts frame rates inversely with rows, exceeding 1900FPS in reduced-height modes, analog gain 0-48dB ( 0.1 dB steps) and long exposure up to 16+ seconds for precise control ^^
Advanced Triggering & Synchronization: Opto-isolated hardware trigger (5-24V), software trigger, and strobe output with 0.1 s (100ns) hardware timestamping for deterministic timing in robotic pick-and-place, inspection, and area-scan emulation ^^ Full USB3 Vision & GenICam Compliance: 100% plug & play with standard GenICam nodes for ROI, gain, exposure, I/O, and more, includes on-board temperature sensor, "Find Me" LED, and unique 64-bit serial number for multi-camera setups ^^ Rugged Industrial Design with
Lens Options: Default M12 lens (YT10068-2mp 6MM, no IR filter), optional CS lens (FA1614/10MP/C), compatible with Aravis, eBUS Player, OpenCV on Windows/Linux/macOS, includes USB 3.0 cable and 6-pin Hirose trigger cable
