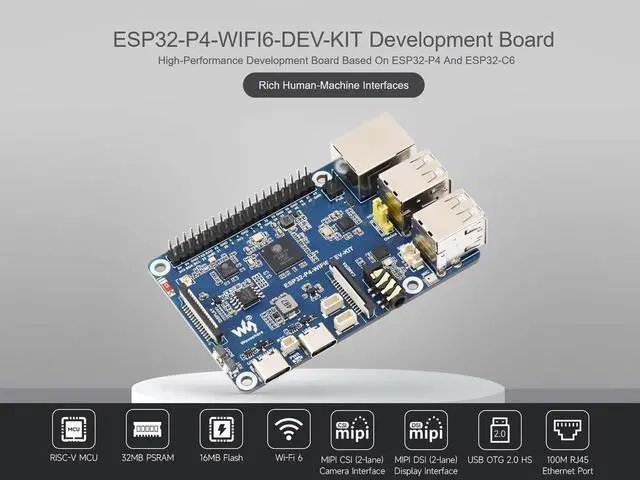

ESP32-P4-WIFI6-DEV-KIT Development Board Adopts ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5, with MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, PoE Module Header, etc.

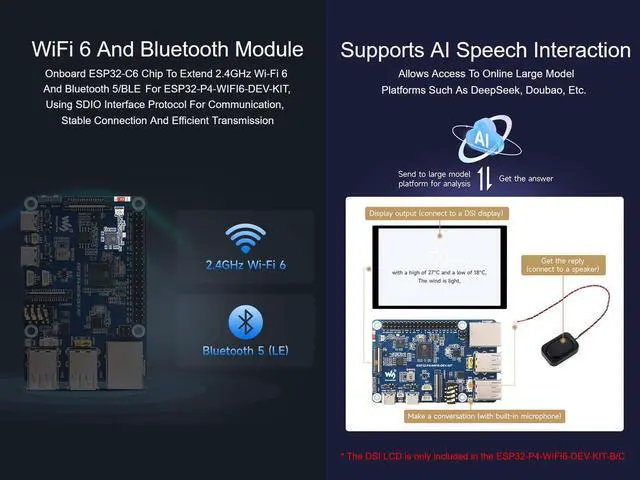

IntroductionESP32-P4-WIFI6-DEV-KIT high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. Onboard ESP32-C6 chip to extend 2.4GH z Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4-WIFI6-DEV-KIT, using SDIO interface protocol for communication. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and SDIO Host 3.0 for high-speed connectivity. FeaturesHigh-performance MCU with RISC-V 32-bit dual-core and single-core processors32MB PSRAM in the chip's package, with onboard 16MB Nor Flash 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCMPowerful image and voice processing capability.

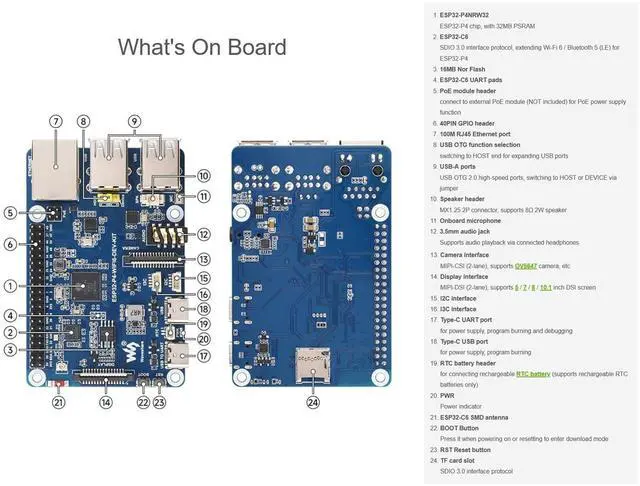

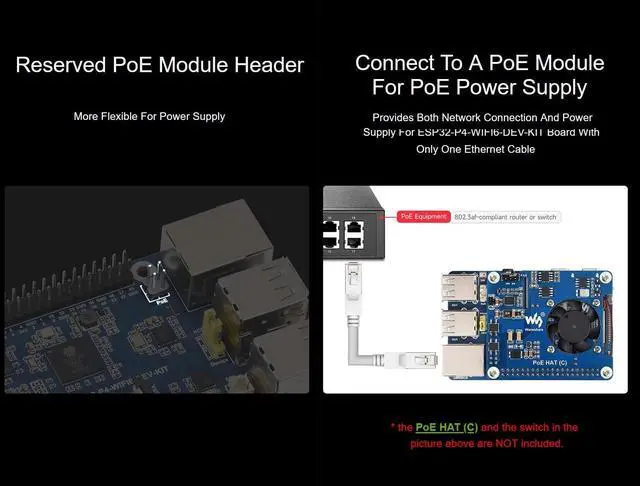

Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoderCommonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc. Reserved PoE Module header, connect to a PoE Module for PoE power supply, provides both network connection and power supply for ESP32-P4-WIFI6-DEV-KIT board with only one Ethernet cableAdtaping 2*20 GPIO headers with 28 x remaining programmable

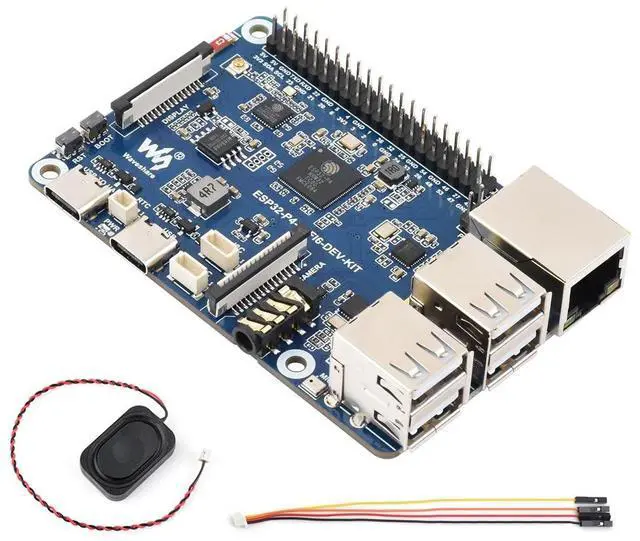

GPIOsSecurity features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege SeparationPackage ContentESP32-P4-WIFI6-DEV-KIT x 18 2W speaker x 1SH 1.0 4PIN cable ~150mm x 2Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.
