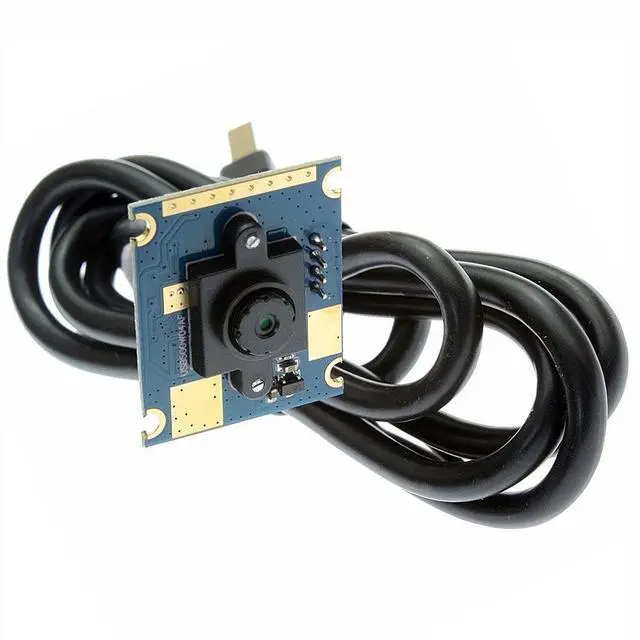

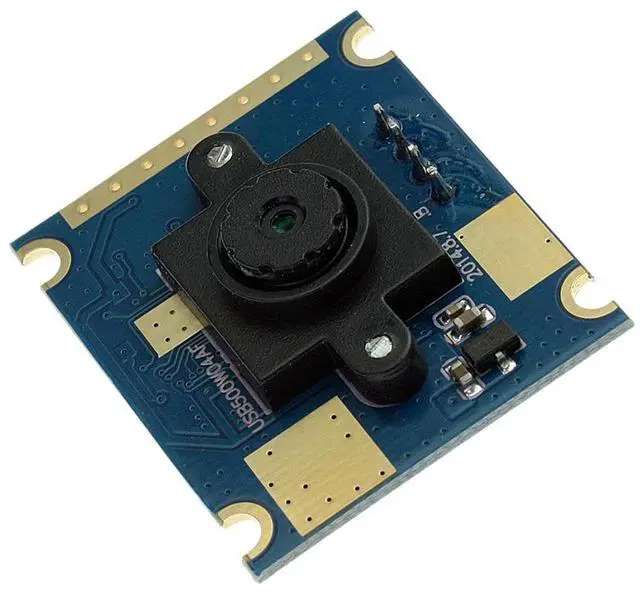

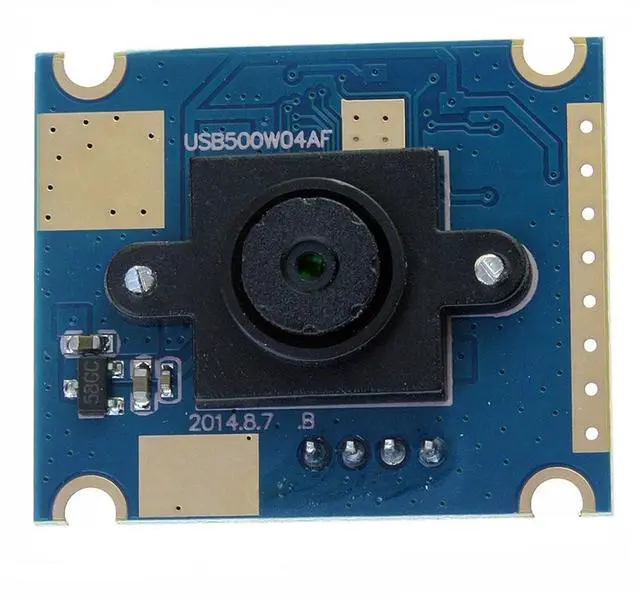

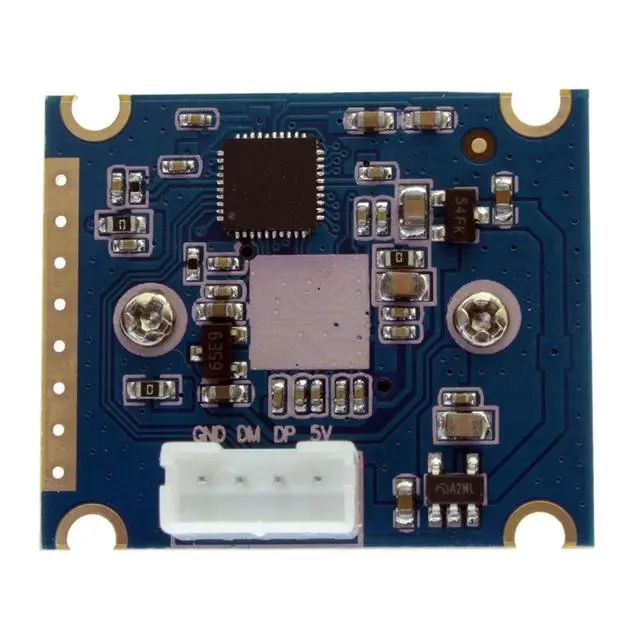

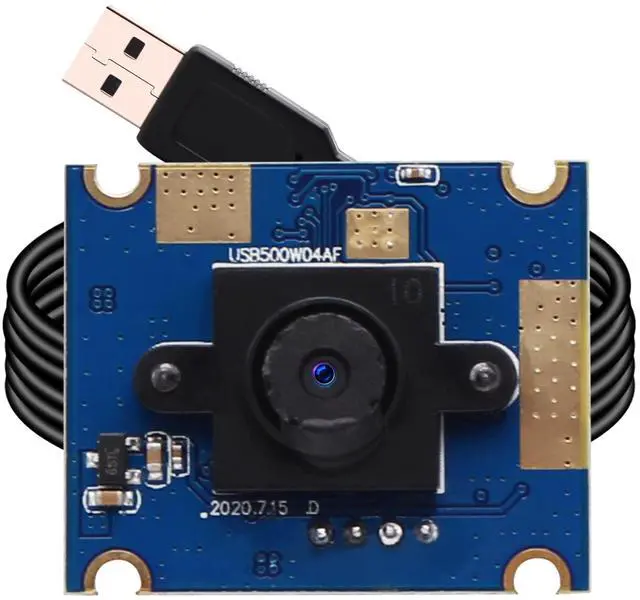

ELP 5mp 60degree Fixed Lens USB Camera with OV5640 Sensor for Linux/Android/mac/Windows PC Webcam USB2.0 UVC Vide Camera Module Opencv Raspberry Pi USB with Cameras for Computer, PC, Laptop

Why we choose MJPEG USB Camera? Choose "MJPEG" final purpose is to reduce data stream, improve the video frame, so that the video will more smooth and occupy less bandwidth. Such as 1megapixel common camera, YUV format only have 10fpswhile MJPEG usb camera can up to 30fps. Most Linux USB port device is USB 2.0, becuase bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream. Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB 2.0 yet.

Product Name: ELP-USB500W04AF-L60Sensor OV5640 (1/4) Max. Resolution 2592 (H) *1944 (V) Sensitivity600mV/Lux-secPixel Size 1.4 m x 1.4 mImage area 3673.6 mx 2738.4 mMaximum Image Transfer Rate 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
Camera Board Assembly technique SMT (ROSH) FocusManualResolution 600LW/PH (Center) interface USB 2.0 High Speedprotocol USB Video ClassUVCS/N Ratio36dBDynamic Range 68dBShutter Rolling shutter/ frame exposurePackage CSP, Bare DieAGC/AEC/AWB/ABF AutoOutput Formats YUYV/MJPEG
Adjustable parameter Brightness Contrast Hue Saturation Sharpness Gamma WhiteBalance Exposure FocusPackage LQFN-40pinLens Parameter Size: 1/4, Iris: F 2.8, Focus: 3.2 mm, FOV: 65DegreeRelative
Illumination (Sensor): 70%IR
Filter: 65010nm
