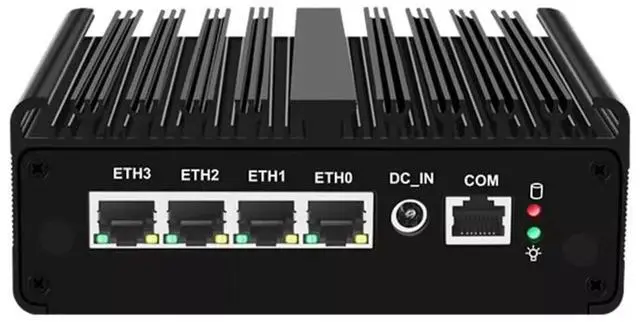

Main image of UDPTCP Fanless Mini PC 6305 with M.2 Nvme 4*i226 2.5G LAN, Micro Firewall Appliance 2*USB3.0,SIM Card Slot, WiFi,Mini Desktop Computer Hardware, Micro Router Appliance, AES-NI, OPNsense,NO RAM NO SSD

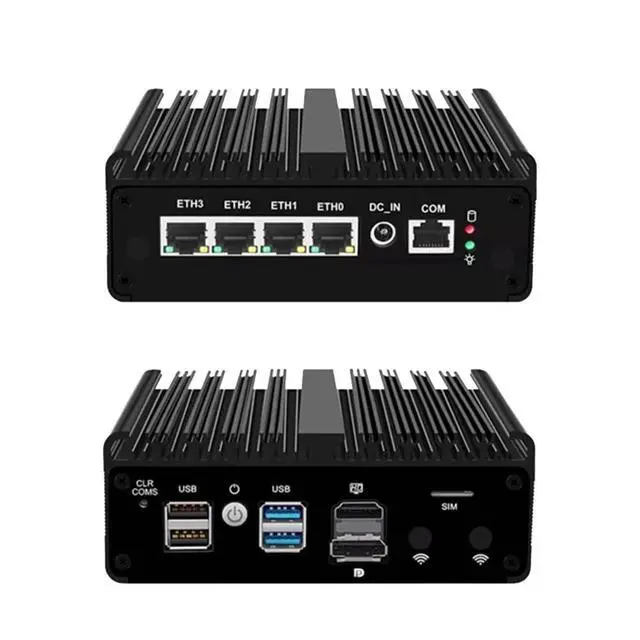

Alt view image 2 of 5 - UDPTCP Fanless Mini PC 6305 with M.2 Nvme 4*i226 2.5G LAN, Micro Firewall Appliance 2*USB3.0,SIM Card Slot, WiFi,Mini Desktop Computer Hardware, Micro Router Appliance, AES-NI, OPNsense,NO RAM NO SSD

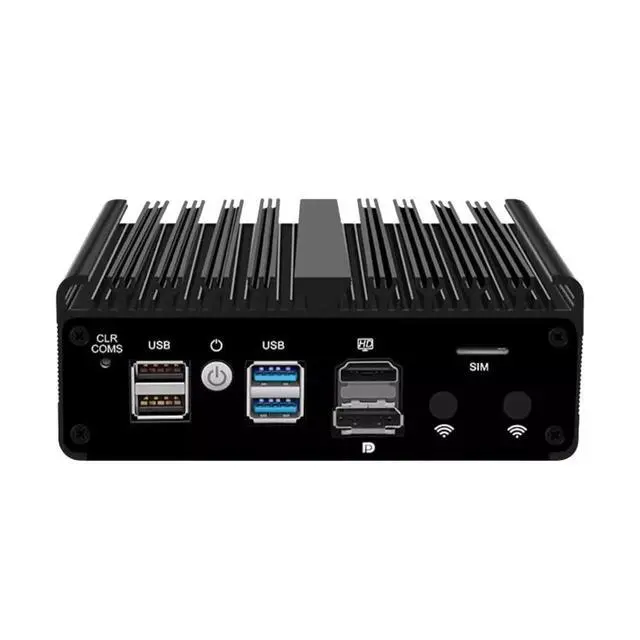

Alt view image 3 of 5 - UDPTCP Fanless Mini PC 6305 with M.2 Nvme 4*i226 2.5G LAN, Micro Firewall Appliance 2*USB3.0,SIM Card Slot, WiFi,Mini Desktop Computer Hardware, Micro Router Appliance, AES-NI, OPNsense,NO RAM NO SSD

Alt view image 4 of 5 - UDPTCP Fanless Mini PC 6305 with M.2 Nvme 4*i226 2.5G LAN, Micro Firewall Appliance 2*USB3.0,SIM Card Slot, WiFi,Mini Desktop Computer Hardware, Micro Router Appliance, AES-NI, OPNsense,NO RAM NO SSD

Alt view image 5 of 5 - UDPTCP Fanless Mini PC 6305 with M.2 Nvme 4*i226 2.5G LAN, Micro Firewall Appliance 2*USB3.0,SIM Card Slot, WiFi,Mini Desktop Computer Hardware, Micro Router Appliance, AES-NI, OPNsense,NO RAM NO SSD

Shop All Alphacool Products | Visit SIMPLIZED Store

UDPTCP Fanless Mini PC 6305 with M.2 Nvme 4i226 2.5G LAN, Micro Firewall Appliance 2USB3.0,SIM Card Slot, WiFi,Mini Desktop Computer Hardware, Micro Router Appliance, AES-NI, OPNsense,NO RAM NO SSD

Powerful Celeron 6305 Processor: 6305 Processor, 2 Cores 2 Threads, 4M Cache, The highest turbo frequency is 1.80 GHz, TDP 15W. Compatible with OPNsense, Linux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
Quad 2.5GbE LAN: Mini Router PC with 4 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used. 1xMPCIE wireless slot, support WiFi/4G/3G(USB protocol) connection.
DDR4 Memory & Large Storage Capacity: Firewall box computer with 2 x DDR4 SO-DIMM memory 3200MHz compatible with 2400/2666MHz, 1 x M.2 2280 NVMe SSD slot, 1 x SATA 3.0 for 2.5" SSD/HDD (SATA 3.0 Cable Included)
UHD Graphics & Dual Display: 6305 processor integrated UHD Graphics, HD and DP dual display interfaces support 4K@60Hz.

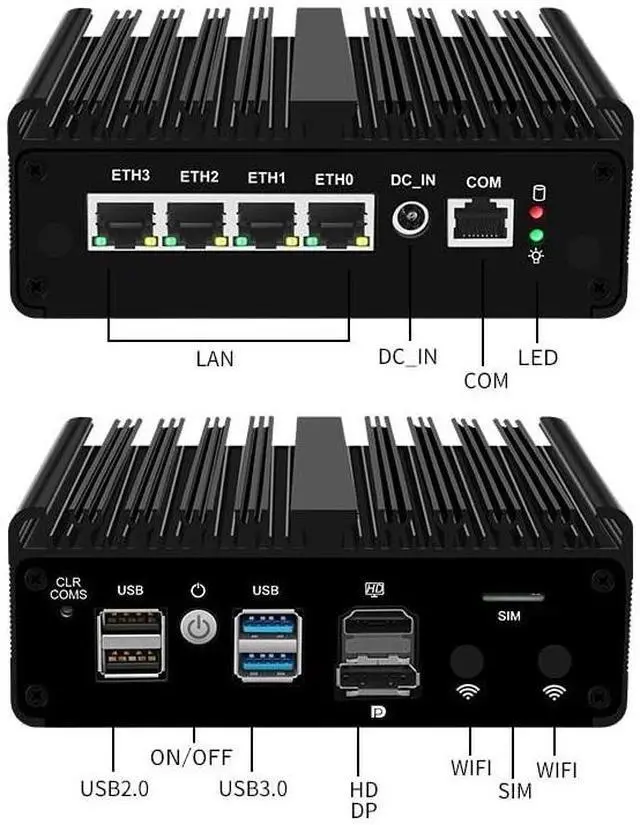

Rich interfaces: 4 x2.5G i226V-LAN,2 xUSB3.0, 2 xUSB2.0, 1*COM c

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product Highlight-4xInteli226-V 2.5G RJ45 LANs, 2xUSB 3.0, 2xUSB 2.0, 1xRJ45 COM console, 1x4G/3G SIM slot. -2xDDR4 SODIMM non-ecc ram slots, support 2400/2666MHz.
-Support two storage: 1xM. 2 NVMe/PCIe 3.0 x2 2280 SSD+1x 2.5 ''SATA 3.0 7mm SSD/HDD. -1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G (USB protocol) connection (optional). -Support 1xHDMI 2.0 and 1xDP dual 4K video display. -Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc. -Solid aluminum alloy fanless system with longer Y-shaped fins has better cooling efficiency with a temperature 10-15 lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7x24 hours. Also it is a good option to add a USB fan if you have.
