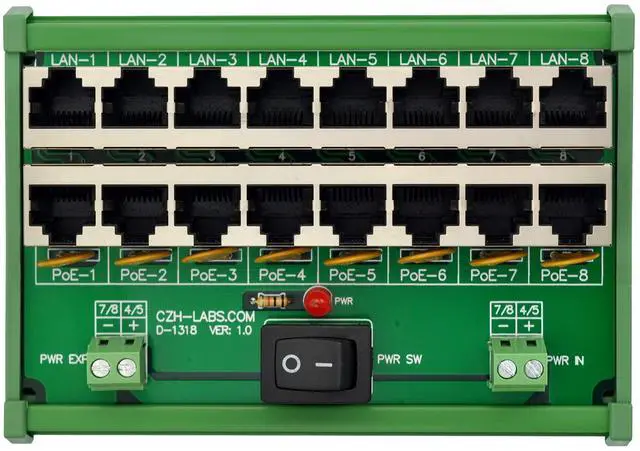

CZH-LABS DIN Rail Mount 8 Ports Passive RJ45 PoE Power Injection Board, Power Over Ethernet Injector Module.

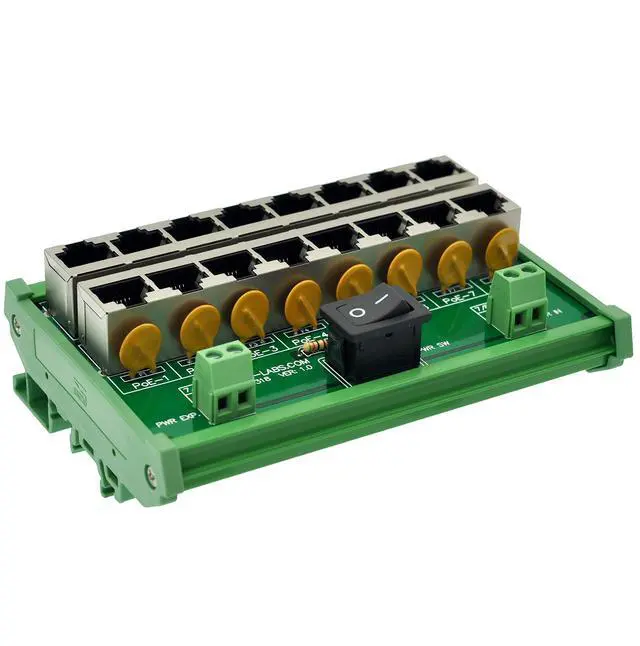

1, Simple Power up 8 Passive 10/100Mbps PoE devices by one power source Application use for Access Points, IP cameras, IP phones, etc. 2, Power Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1A mp / 72V). Power Expansion Output terminal block can connect power supply to next device. 3, Switch On/Off to save electricity while not use, LED indication for switch On/Off status.
4,

Specifications

: Terminal Block
Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl Block
Expansion Output: maximum current 10Amp;

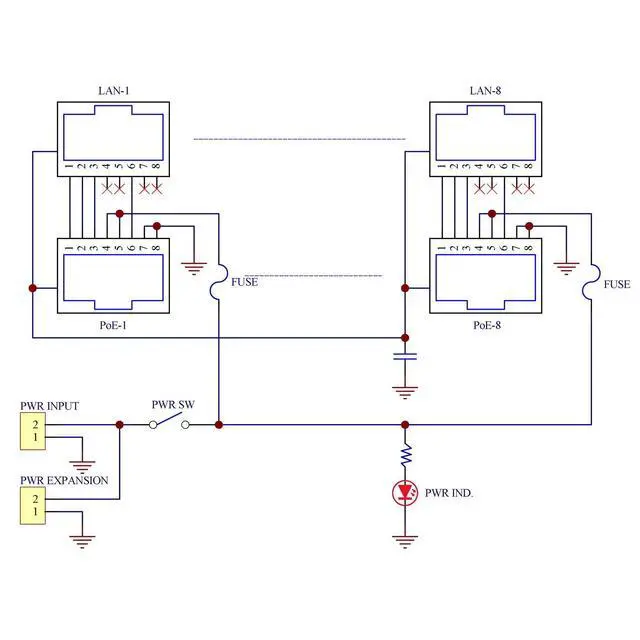

LIN-X Input: RJ45 1 / 2 / 3 / 6 pins (data), 4 / 5 / 7 / 8 pins not connected;
PoE-X Output: RJ45 1 / 2 / 3 / 6 pins (data). 4 / 5 pins power +, 7 / 8 pins power -;
Data Rate: 10 / 100Mbps; PoE Power Output Maximum

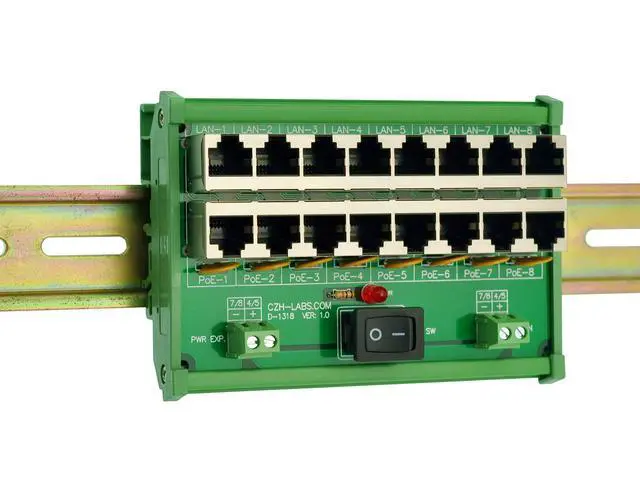

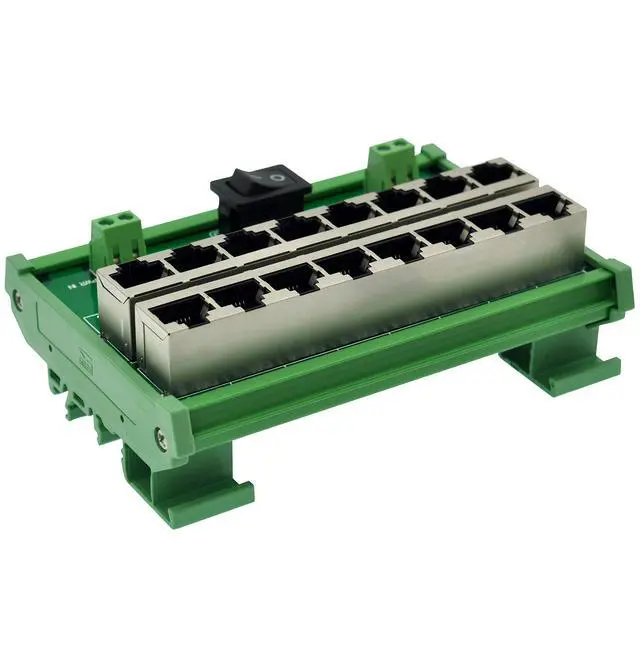

Current (per channel): 720mA. 5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.

Specifications

: Terminal Block
Power Input: 12VDC - 60VDC, maximum current 10Amp.
Termianl Block Expansion Output: maximum current 10Amp.
LIN-X Input: RJ45 1 / 2 / 3 / 6 pins (data), 4 / 5 / 7 / 8 pins not connected.
PoE-X Output: RJ45 1 / 2 / 3 / 6 pins (data). 4 / 5 pins power +, 7 / 8 pins power -.
Data Rate: 10 / 100Mbps. PoE Power Output Maximum
Current (per channel): 720mA.
Terminal blocks: Pitch 5.0 mm/ 0.197", Wire range 28AWG ~ 12AWG / 2.5 mm square, Strip length 7mm. Screws - M 2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.
