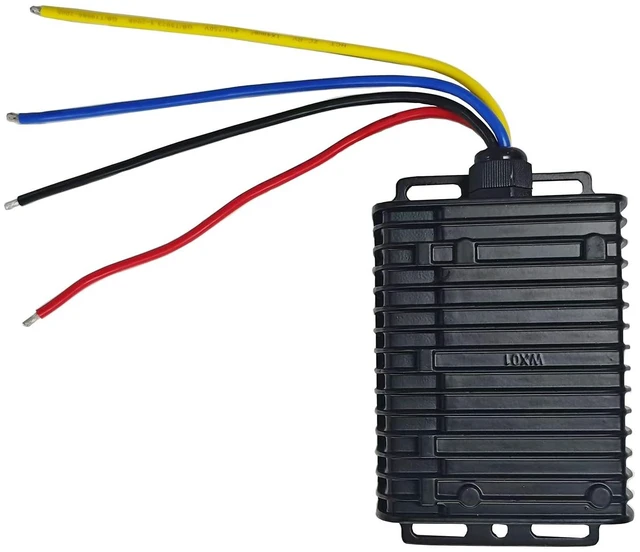

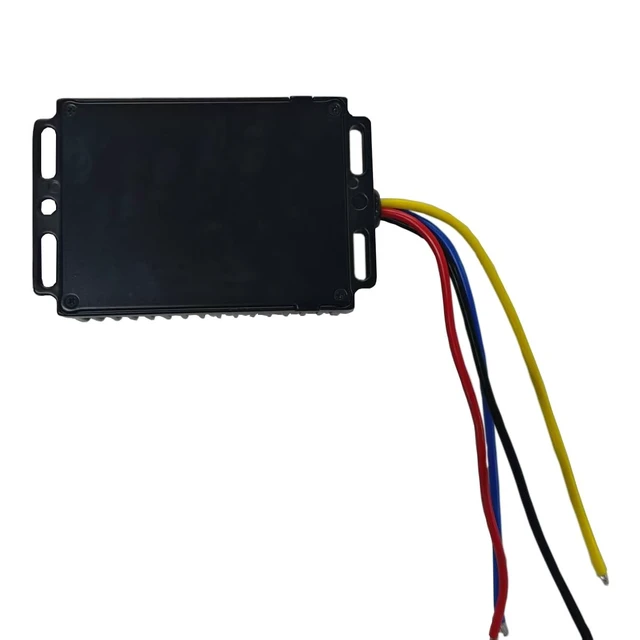

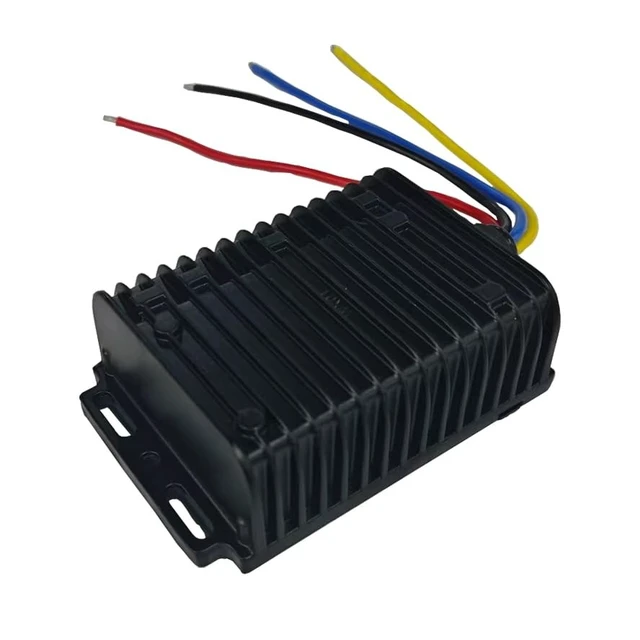

Vehicle Isolated 48V 60V 72V to 12V DC Step Down Converter Isolation Reducer for Golf CART (40A)
- Wide voltage input: DC 48V-72V / output parameters: DC 12V, 40A, 480W. Built-in 7 high-frequency and low-resistance electrolytic capacitors make the voltage stable and have a longer service life. Wide anti-voltage fluctuation range, control accuracy
- High conversion efficiency: Built-in isolation high-frequency transformer, conversion efficiency up to 93%, lower heat generation, fast response speed, good stability, small size, light weight, low energy consumption, reducing electromagnetic and radio frequency interference
- Protection: High-quality aluminum alloy box, fast heat dissipation. Built-in overload, over current, over voltage, over temperature, short circuit protection. Intelligent temperature control, stop working when the temperature exceeds the set temperature when the power supply is working, and protect the power supply from damage.
- Application /Uses: Widely used in golf carts, photovoltaics, electricity, monitoring systems, automobiles, electric bicycles, motorcycl
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Wires Define1.
Red: Input +2.
Black: Input -3.
Yellow: Output +4.
Blue: Output -Weight(N.
W): 1.2 kgsInput ParameterInput
Voltage Range: 48V-72VOutput
ParameterOutput Voltage: 12VOutput
Current: 40A
MaxLoading: 480W
MaxEfficiency: Typical values 92%Voltage
Stability: 1%Load
stability: 1%Insulation
resistance: Between output and input > 50MBetween input and casing > 50MBetween output and casing > 50MProtect
Function: Input reverse connection protection (replacing fuse)
Output Protection: Temperature
Protection 95Overcurrent Protection: the converter stops working when the output current reaches the protection current valueShort-circuit
Protection: when the output is short-circuited, the converter stops working, and automatically resumes work after the short-circuit is eliminatedOvervoltage Protection Product Feature1.
Waterproof: IP672.
Storage Temperature: -40 - 603.
Working Temperature: -25 - 554. With waterproof glue increases the vibration level
Red: Input +2.
Black: Input -3.
Yellow: Output +4.
Blue: Output -Weight(N.
W): 1.2 kgsInput ParameterInput
Voltage Range: 48V-72VOutput
ParameterOutput Voltage: 12VOutput
Current: 40A
MaxLoading: 480W
MaxEfficiency: Typical values 92%Voltage
Stability: 1%Load
stability: 1%Insulation
resistance: Between output and input > 50MBetween input and casing > 50MBetween output and casing > 50MProtect
Function: Input reverse connection protection (replacing fuse)
Output Protection: Temperature
Protection 95Overcurrent Protection: the converter stops working when the output current reaches the protection current valueShort-circuit
Protection: when the output is short-circuited, the converter stops working, and automatically resumes work after the short-circuit is eliminatedOvervoltage Protection Product Feature1.
Waterproof: IP672.
Storage Temperature: -40 - 603.
Working Temperature: -25 - 554. With waterproof glue increases the vibration level
