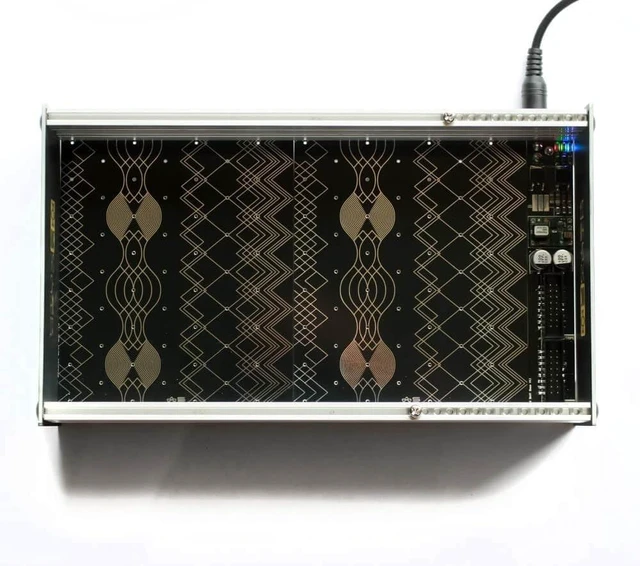

EcoSkiff - Eurorack Case (44HP, Powered w/ 12V Brick)

EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.
Save on money and space: get just as much HP as you need!
Available in the following sizes: - 24HP- 44HP- 64HP- 84HP- 104HPFeatures and specifications: - The skiff goes together with just a Phillips head screwdriver! - Comes with 3mm slide nuts-
Over-current protection: shuts off each power rail automatically if modules use too much current on that rail-
Max module depth: 44mm- Max module depth above power supply: 33mmSpecifications, 24HP-44HP: -
Power output: +12V @ 1A-12V @300mA5V@ 150mA-
Power connectors: 2 (plus optional flying bus cable)

Specifications

,
64HP-104HP: -
Power output: +12V @ 2A-12V @750mA5V@ 1.5A -
Power connectors: 15- Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DCAssembly required (but no soldering needed). For assembly instructions, please visit the Synthrotek website. Requires a 12V 5A center positive power brick with a 5.5 mm x 2.1 mm tip.
