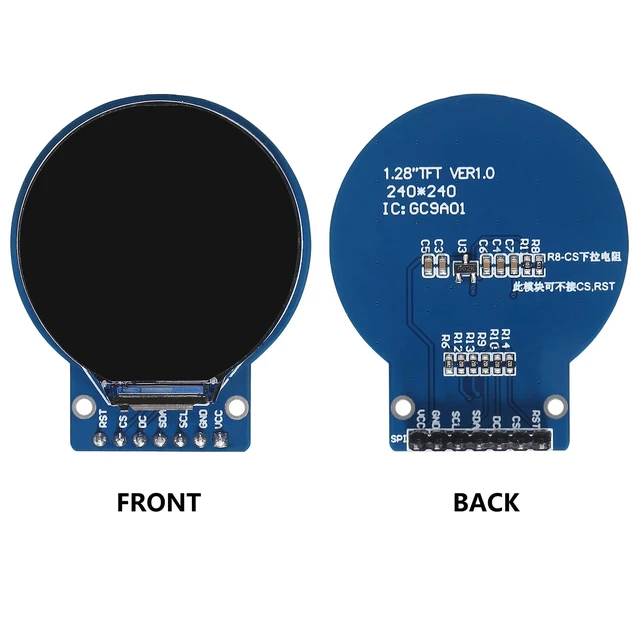

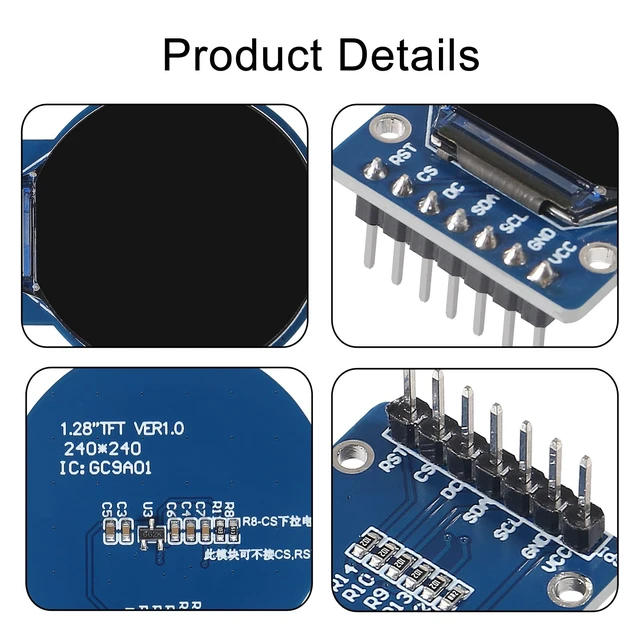

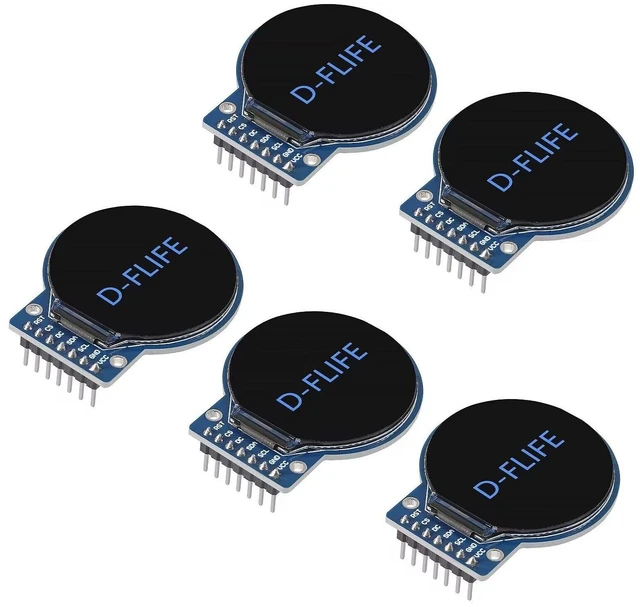

D-FLIFE 1.28 Inch TFT LCD Display Module Round RGB 240 * 240 GC9A01 Driver 4 Wire SPI Interface 240x240 PCB for Arduino (5pcs)
- 1.28 Inch TFT LCD Display Module Round RGB 240*240 GC9A01 Driver 4 Wire SPI Interface
- Interface mode: SPI;Color: full color RGB
- Driving voltage: 3-5V;Perspective: IPS full perspective
- Operating temperature:-20-70

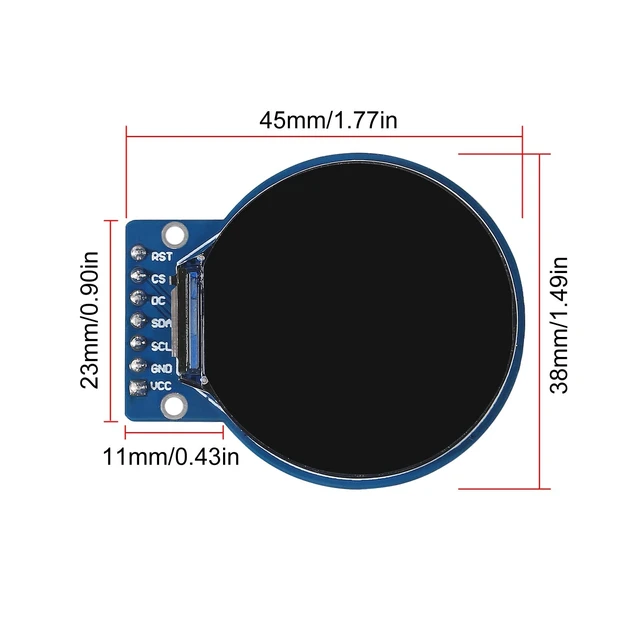

- Size: 1.28";Resolution:240x240;Driver chip:GC9A01
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
1.
VCC: Power2.
GND: Power Ground3.
SCL: This pin is used to be serial interface clock4.
SDA: SPl interface input/output pin. the data is latched on the rising edge of the SCL signal. 5.
DC: Display data/command selection pin in 4-line serial interface6.
CS: Chip selection pin; Low enable, high disable7.
RST: This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
Package: 3 x LCD Display Screen
VCC: Power2.
GND: Power Ground3.
SCL: This pin is used to be serial interface clock4.
SDA: SPl interface input/output pin. the data is latched on the rising edge of the SCL signal. 5.
DC: Display data/command selection pin in 4-line serial interface6.
CS: Chip selection pin; Low enable, high disable7.
RST: This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
Package: 3 x LCD Display Screen
