DIYmalls 915MHz ESP32 LoRa V3 LoRa32 OLED Development Board + 915 MHz LoRa Antenna for Meshtastic (Pack of 2), not Compatible with LoRa 32 V2
Limited time offer, ends 12/20 By LMSshop

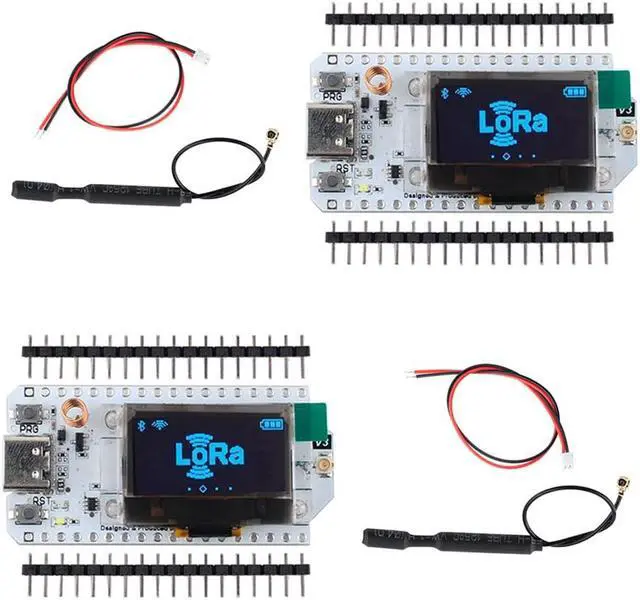

- -You will receive, 2pcs 915 MHz esp32 lora V3, 2pcs 915mhz lora antenna,and 2pcs 2pin 1.25mm cable.
- -LoRa v3 board 915mhz comes unassembled, soldering required by you, not equipped with 3.7v lithium battery as well.
- -You can power 915 lora board via 3.7V lithium battery, 3.3V / 5V pin, or on-board type C 5V. To make it work better, 5V type C power is recommended.
- -It comes without the case for lora v3, but the 915 antenna is suitable for lora v3 case. You can find the lora case in DIYmalls store via searching B0BR3MQ9BG
- -If you have any question, please confirm it with DIYmalls as follow: click "DIYmalls"(you can find "Sold by DIYmalls" under Buy Now button), in the new page, click "Ask a question".
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Feasture:

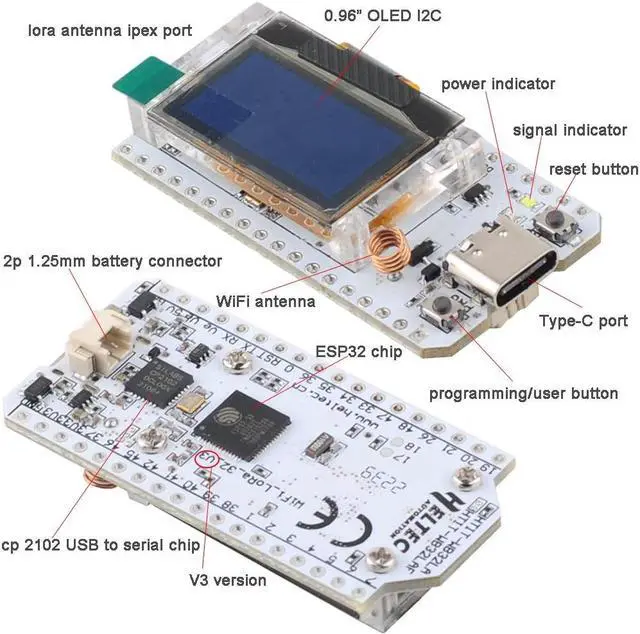

-ESP32-S3FN8 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz.
-SX1262 LoRa node chip.
-Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding etc.

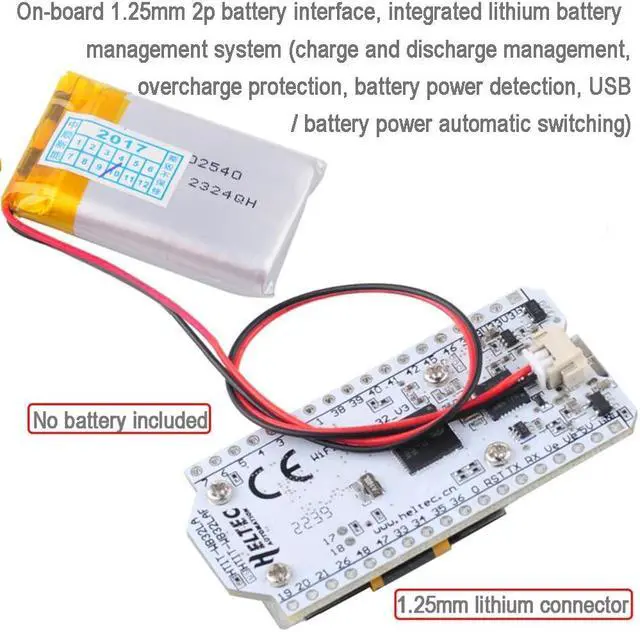

-Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, -USB / battery power automatic switching).
-Integrated W-F, LoRa, BLE three network connections, onboard W-F, BlE dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.

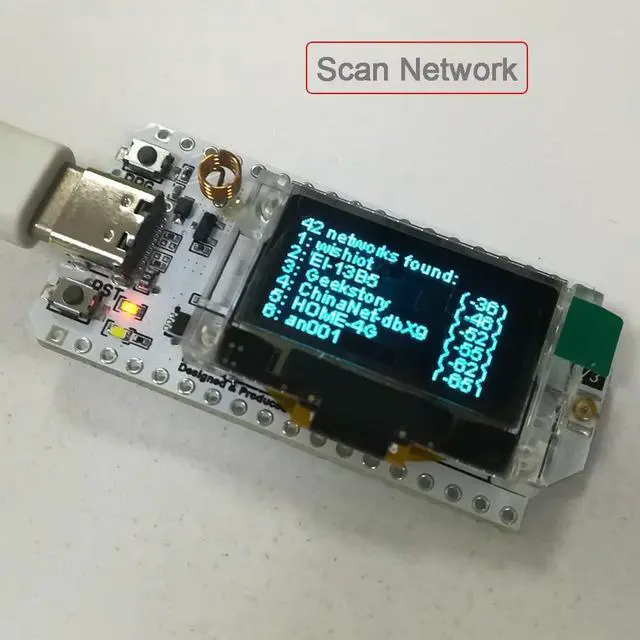

-Onboard 0.96 -inch 128*64 dot matrix OLED display to display debugging information, battery power etc.
-Integrated CP210x 2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
Package Included:
2 x LoRa 32 V3 board
2 x 1.25 mm 2pin cable
2 x lora antenna 915
Feasture:
-ESP32-S3FN8 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz.
-SX1262 LoRa node chip.
-Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding etc.
-Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, -USB / battery power automatic switching).
-Integrated W-F, LoRa, BLE three network connections, onboard W-F, BlE dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.
-Onboard 0.96 -inch 128*64 dot matrix OLED display to display debugging information, battery power etc.
-Integrated CP210x 2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
Package Included:
2 x LoRa 32 V3 board
2 x 1.25 mm 2pin cable
2 x lora antenna 915
