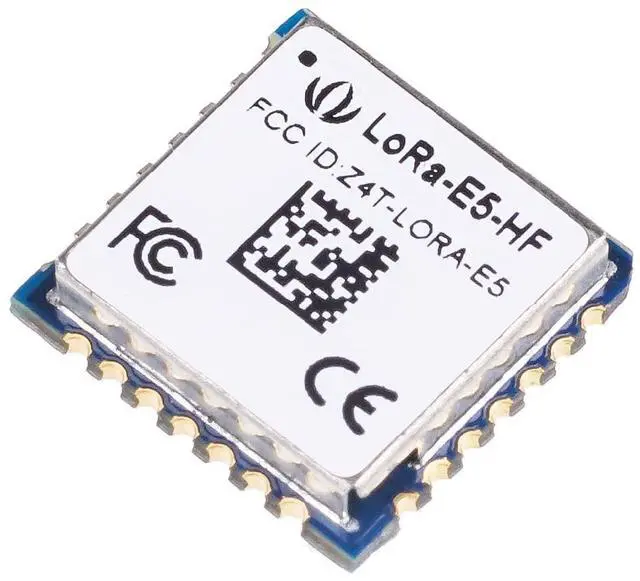

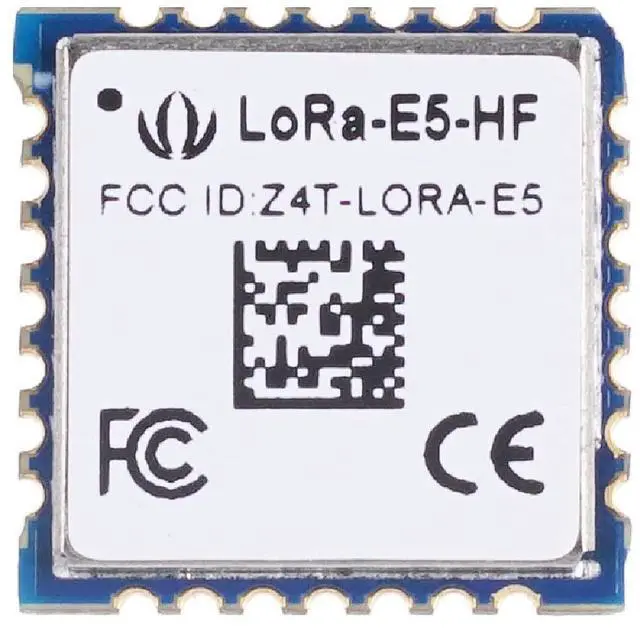

Seeed Studio LoRa-E5 (STM32WLE5JC) Module, ARM Cortex-M4 and SX126x Embedded, Supports LoRaWAN on EU868 & US915.
- Worldwide CompatibilityLoRa-E5 LoRaWAN module is embedded with LoRaWAN protocol, AT command, support global LoRaWAN frequency plan.
- Ultra-low Power Consumption LoRa-E5 LoRaWAN module is designed with ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU and LoRa SX126X. It supports (G)FSK mode and LoRa. 62.5kHz, 125kHz, 250kHz, and 500kHz bandwidth can be used in LoRa mode, making it suitable for the design of various IoT nodes, as low as 2.1uA sleep current (WOR mode).

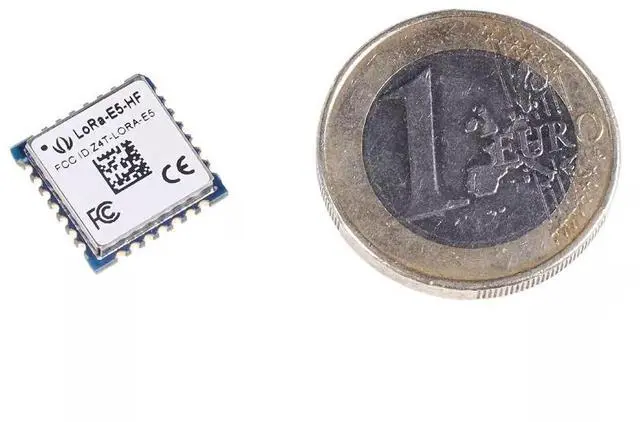

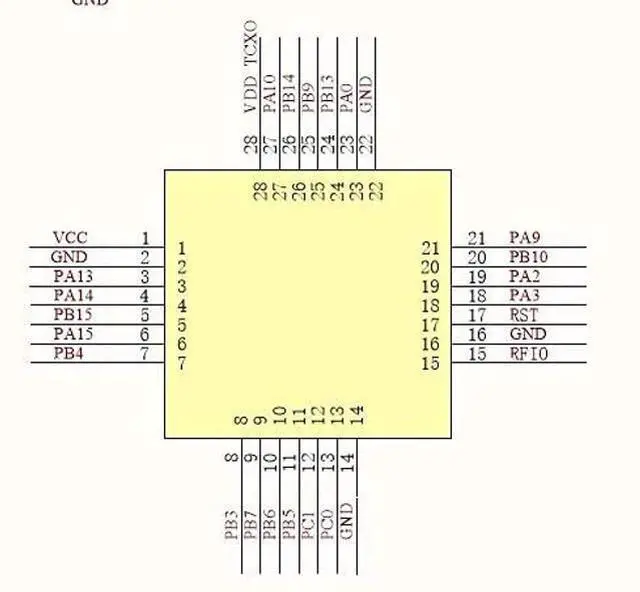

- Compacted Size and High Performance 12mm * 12mm * 2.5mm 28 pins SMT; TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW. This LoRa E5 module is designed with industrial standards, hence it's highly suitable to be used in designing industrial IoT products, with a wide working temperature at -40 ~ 85.
- Great Flexibility For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Seeed Studio LoRa-E5 Development Kit - based on LoRa-E5 STM32WLE5JC, LoRaWAN Protocol and Worldwide Frequency Supported.
