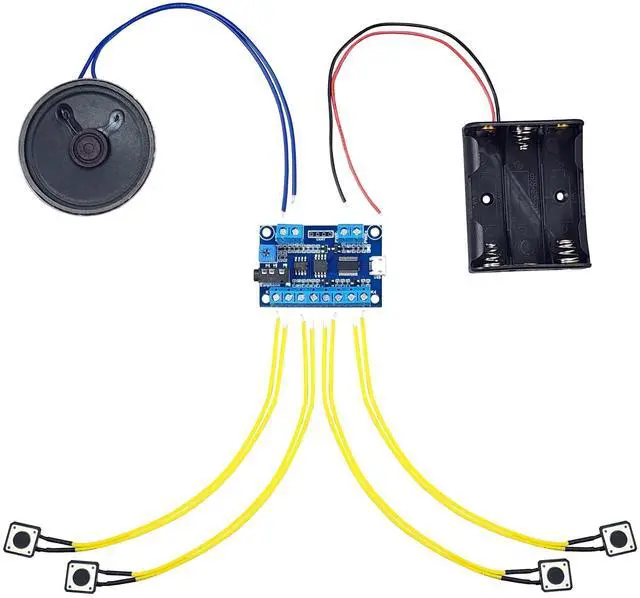

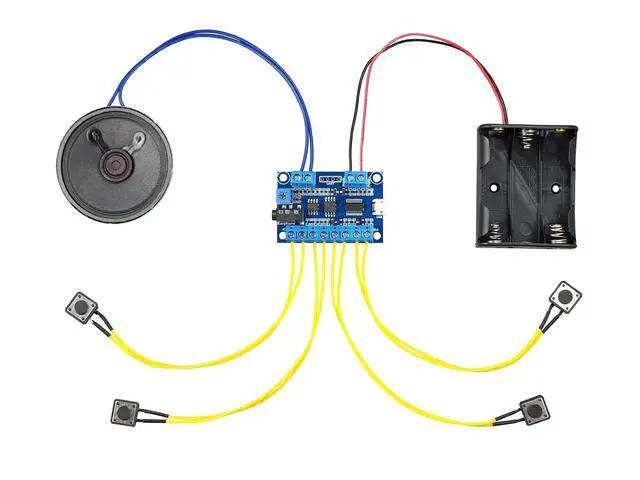

USB Recording Module (Multi Sound Files per Button) with Buttons, Speaker and Battery Box

Features: Uses a micro USB port to directly plug into the USB port of PC for easy use of the sound module. Built-in an 8MB flash memory, which is able to store a total of about 8 minutes long MP3 files of Supports earlier Windows, Windows 10, and Mac operating systems
Support audio format: MP3 and WAV Able to play multiple audio files on per button. Built-in a class D 3Watts amplifier IC and a 3.5 mm audio Directly drives a 0.5W atts to 3Watts (4ohms to 8ohms) speaker Volume is adjustable through adjusting the blue potentiometer Built-in headphone output for easy use if the external speaker is not something that will work with your project. 4-Key Operations with 7 Triggering
Modes 0: Short press the button to start playing, and during playing, if you press the button again, the playback will be interruptible and it will play from the beginning.
1: Press the button and hold to start playing repeatedly, and when the button is released the board stops playing.
2: Short press the button to start playing, and during playing, if you press the button again, the playback will be NOT interruptible.
3: Short press the button to start playing repeatedly and press the button again to stop.
4: Press the button and hold to start playing once, and when the sound file goes to the end, the board stops playing.
5: Interruptible and switches to the next sound file.
6:
UninterruptibleDatasheets:
http: //www. electronics123. net//datasheet/FN-T418%20MP3%20Player%20Sound%20Module. pdf www. electronics123. com/page/faq-fn-t418Features of the Battery HolderWith leads (150mm)

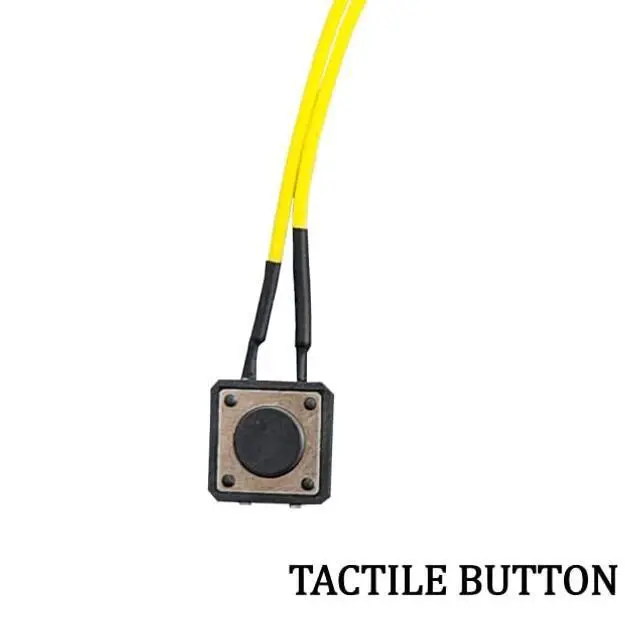

For: 3 x AA (LR06) Features of the ButtonWith 12" (305mm) leadsEnds stripped and tinned 0.12" (3mm)

Specifications

: Momentary Push SwitchFlat rubber head (white) 3mm heightFeatures of the speakerSmall
SizePower rating:
3WImpedance: 857mm diameter and 12mm high6 inches of wire pre-attached.
