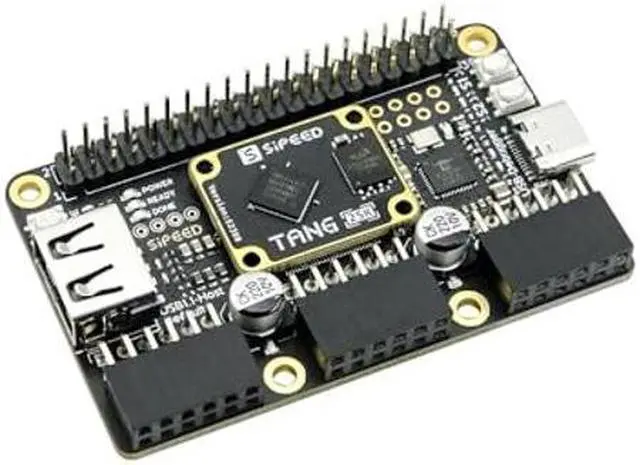

Main image of youyeetoo Sipeed Tang Primer 25K Dock FPGA Development Board MCU, RISCV, Modularisation, Gowin GW5A, PMOD SDRAM, 23K LUT4, MIPI 2.5Gbps (25K Basic Package)

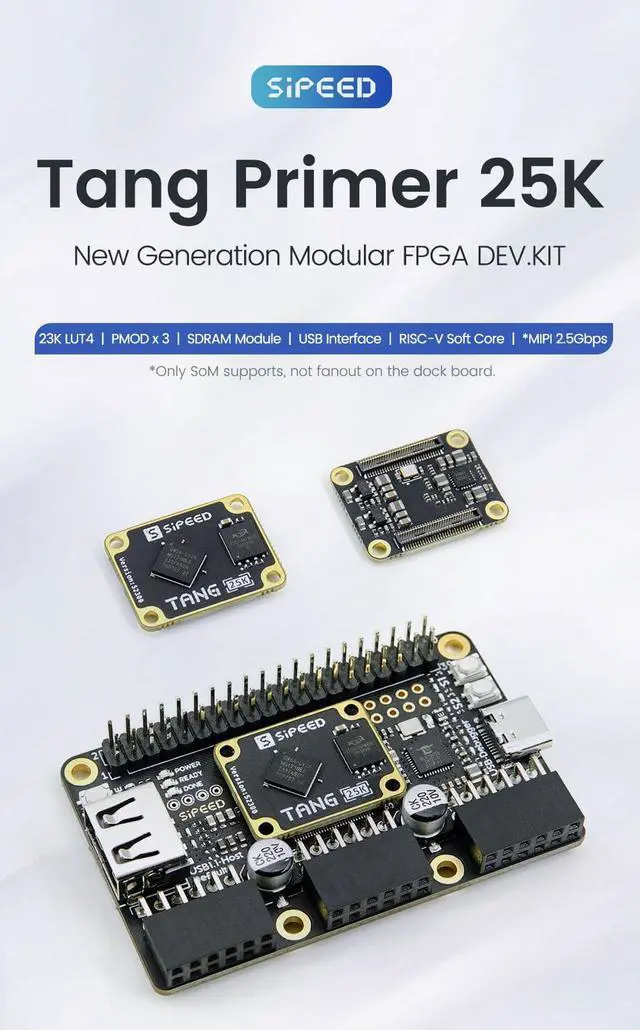

Alt view image 2 of 5 - youyeetoo Sipeed Tang Primer 25K Dock FPGA Development Board MCU, RISCV, Modularisation, Gowin GW5A, PMOD SDRAM, 23K LUT4, MIPI 2.5Gbps (25K Basic Package)

Alt view image 3 of 5 - youyeetoo Sipeed Tang Primer 25K Dock FPGA Development Board MCU, RISCV, Modularisation, Gowin GW5A, PMOD SDRAM, 23K LUT4, MIPI 2.5Gbps (25K Basic Package)

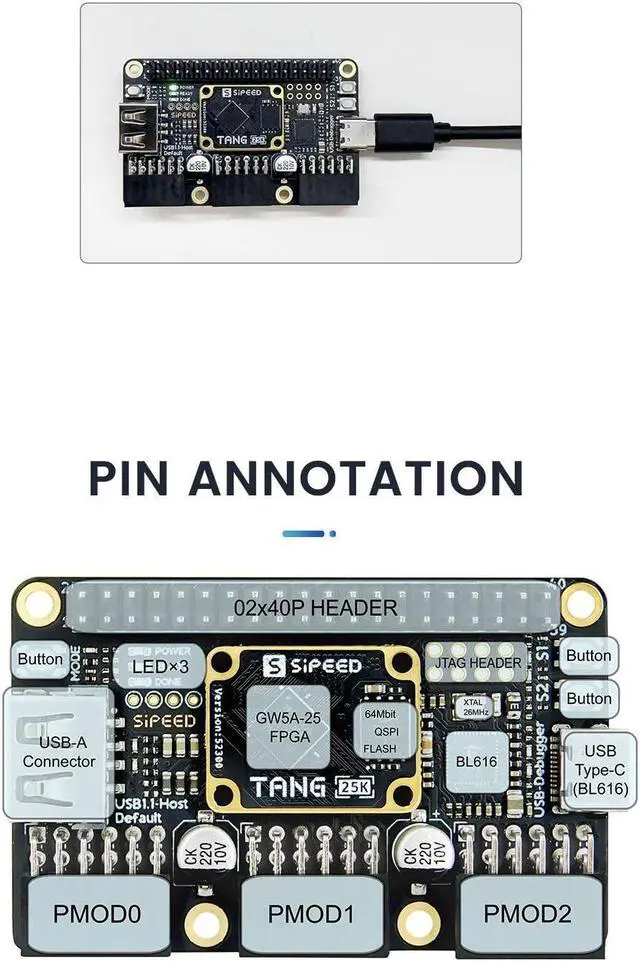

Alt view image 4 of 5 - youyeetoo Sipeed Tang Primer 25K Dock FPGA Development Board MCU, RISCV, Modularisation, Gowin GW5A, PMOD SDRAM, 23K LUT4, MIPI 2.5Gbps (25K Basic Package)

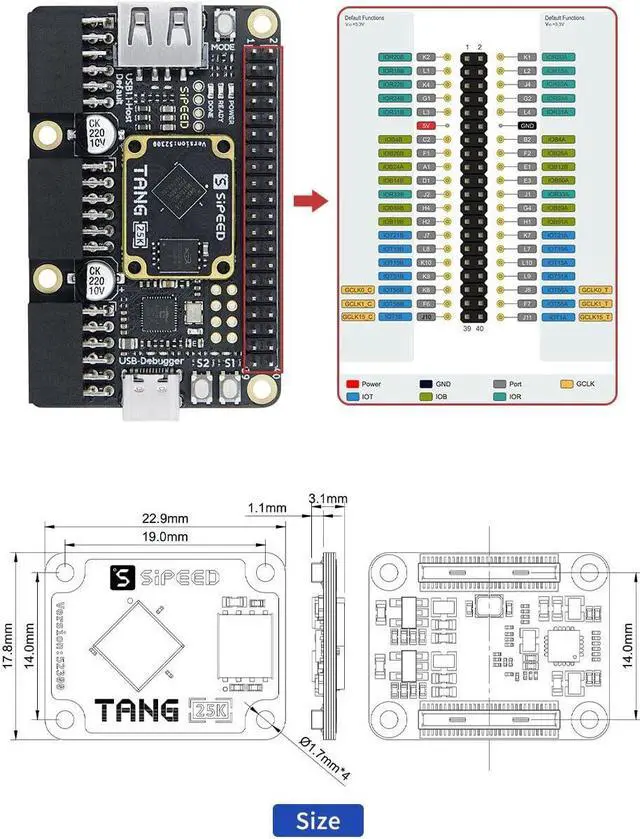

Alt view image 5 of 5 - youyeetoo Sipeed Tang Primer 25K Dock FPGA Development Board MCU, RISCV, Modularisation, Gowin GW5A, PMOD SDRAM, 23K LUT4, MIPI 2.5Gbps (25K Basic Package)

Shop All KW-Commerce Products | Visit Mafengkeji Store

youyeetoo Sipeed Tang Primer 25K Dock FPGA Development Board MCU, RISCV, Modularisation, Gowin GW5A, PMOD SDRAM, 23K LUT4, MIPI 2.5Gbps (25K Basic Package)

Tang Primer 25K Dock board is a new generation of modular dock board,equipped with an USB-JTAG debugger, 3 PMOD interfaces, and a 40P pin header interface.
It integrates Gowin GW5A-LV25MG121,64Mbit SPI FLASH,DC-DC power supply.
SoM board provides 76 GPIOs,1 hard-core 4lane MIPI D-PHY,and 3 power outputs.
By providing 5V power to the SOM and configuring correctly, you can easily use the SoM.
[WIKI] https://wiki.sipeed.com/primer25k

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Tang Primer 25K Dock board is a new generation of modular dock board, equipped with an USB-JTAG debugger, 3 PMOD interfaces, and a 40P pin header interface. You can use the PMOD interface to connect simple modules such as HDMI modules, Gamepad modules, and LED modules. And you can also use the 40P pin header interface to connect more complex modules such as SDRAM modules and dual DVP camera modules.

Tang Primer 25K SoM board is a compact, highly integrated FPGA SoM board. lt integrates GowinGW5A-LV25MG121, 64Mbit SPI FLASH, DC-DC power supply, and BTB connector in an area smaller than the coin. SoM board provides 76 GPIOs, 1 hard-core 4laneMIPI D-PHY, and 3 power outputs. By providing 5V power to the SOM and configuring correctly, you can easily use the SoM.
