MDBT50Q-U512K Nordic nRF52833 Solution u.FL Connector 42 GPIO Bluetooth Module BT5.2 FCC IC CE Telec KC SRRC (3pcs Pak)

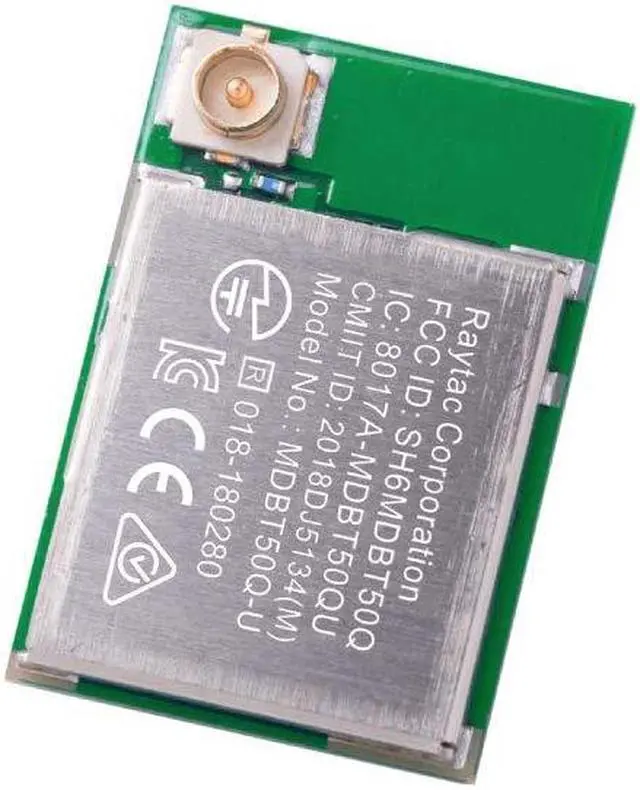

- Nordic nRF52833 u.FL Connector Module (for External Antenna) / MDBT50Q-U512K
- Supports multiprotocol for Bluetooth Low Energy, ANT+, Zigbee, Thread (802.15.4)
- BT5.2, FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC Pre-Certified

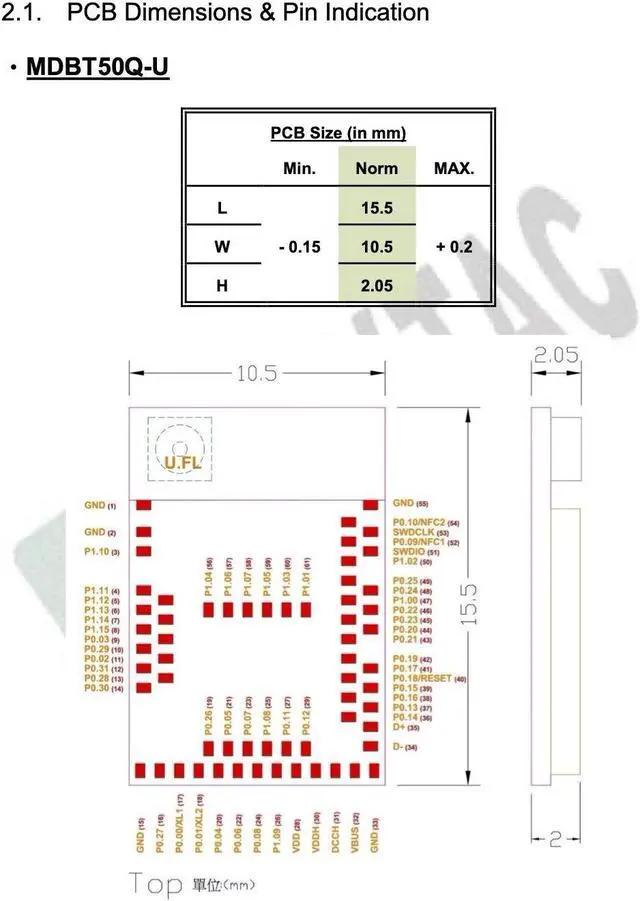

- 42 GPIO / 10.5 x 15.5 x 2.05 mm / 512 KB Flash Memory / 128 KB RAM
- Interface: QSPI & USB & I2C & SPI & UART & I2S & PDM & PWM & NFC
- RoHS & Reach Compliant
- Operation Temp.: -40°C to 105 °C (-40°F~221°F) / 1.7 to 5.5 V supply voltage
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Raytacs MDBT50Q-U512K is a BT 5.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52833 SoC solution, which
incorporates: GPIO, SPI, UART, I2C, I2S, PMD, PWM, ADC, NFC and USB interfaces for connecting peripherals and sensors.
Features: Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 15.5 x (W) 10.5 x (H) 2.05 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
incorporates: GPIO, SPI, UART, I2C, I2S, PMD, PWM, ADC, NFC and USB interfaces for connecting peripherals and sensors.
Features: Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), IEEE 802.15. 4 ( & Zigbee) & 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 15.5 x (W) 10.5 x (H) 2.05 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
