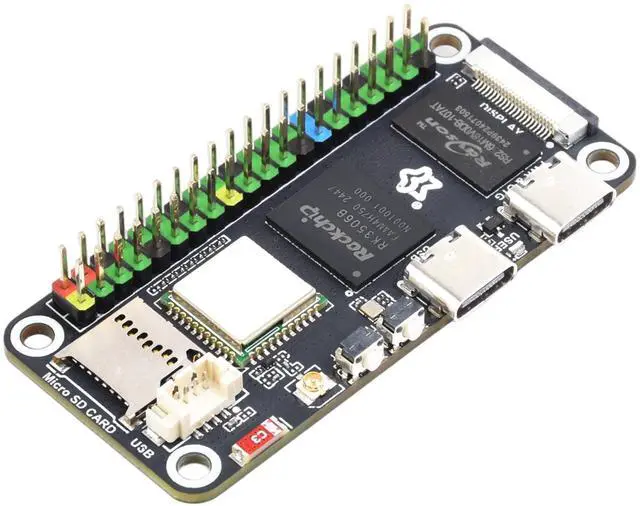

Lyra Zero W Micro Linux Dev Board Based On RK3506B Chip, Triple-Core Arm Cortex-A7 and Arm Cortex-M0 Processors, Onboard TF Card Slot, DSI Interface, USB-C Host Port, and MX1.25 USB Host Header

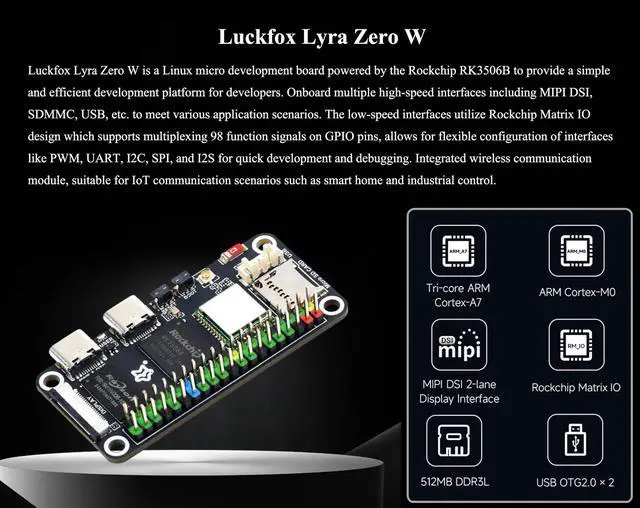

- Lyra Zero W is a Linux micro development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, SDMMC, USB, etc. to meet various application scenarios.
- The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.

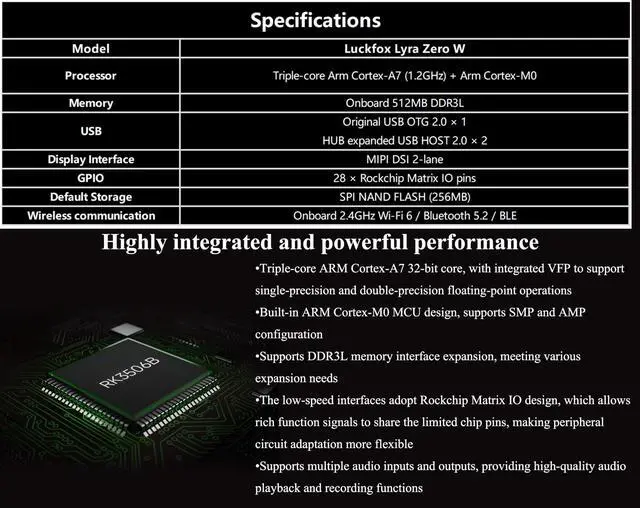

- Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single-precision and double-precision floating-point operations. Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration. Supports DDR3L memory interface expansion, meeting various expansion needs.
- The low-speed interfaces adopt Rockchip Matrix IO design, which allo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Lyra Zero W Micro Linux Dev Board Based On RK3506B Chip, Triple-Core Arm Cortex-A7 and Arm Cortex-M0 Processors, Onboard TF Card Slot, DSI Interface, USB-C Host Port, and MX 1.25 USB Host Header
