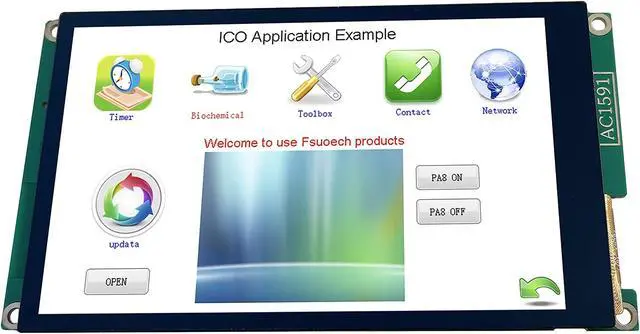

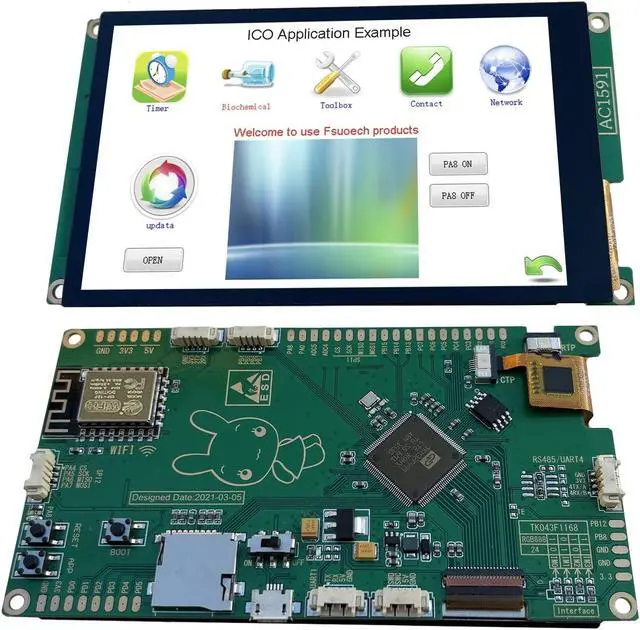

Fsuoech IPS 4.3 Inch TFT LCD Capacitive Touchscreen Development Board 800x480 ESP WiFi Internet of Things Intelligent Display M4 Board TKM32F499
- High cost performance, the product includes a high-performance M4 chip, 16M FLASH,8M RAM and 800*480 high resolution full view TFT LCD screen, which can be directly programmed on the chip, more flexible and faster than serial screen
- High-performance TK499 chip,240MHz, with FPU, supporting hardware floating point calculation; Large storage space:16MB FLASH and 8MB RAM, can run complex interface programs
- With WIFI module, support wireless display, facilitate access to IoT; USB download, you can use USB update program, icon and font library;
- Provide abundant peripherals: serial port, SPI, GPIO, USB, SDIO, five-way button, 1 LED light, two ADC, etc;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

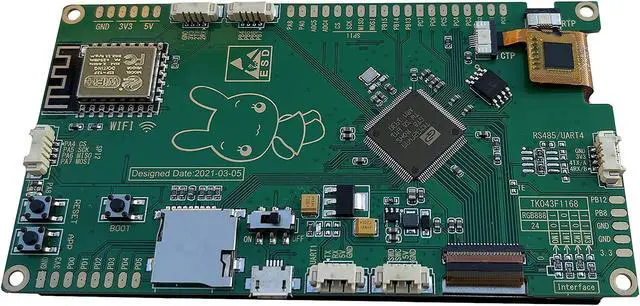

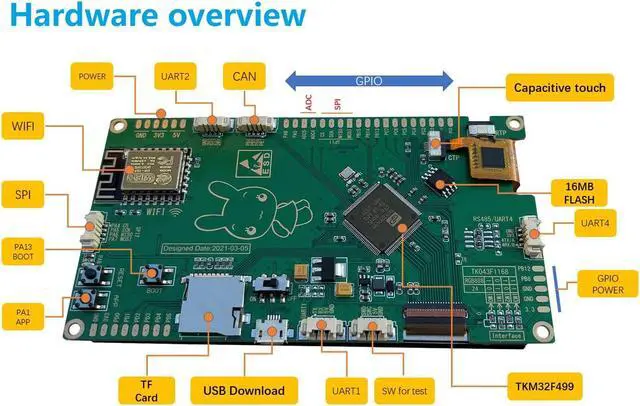

Hardware
Chipset: TKM32F499 240MHz Cortex-M4 microprocessor
FLASH: QSPI flash 16MB
SRDAM: 8MB
Button: Reset, BOOT, APP
Modular interface: UART, SPI, SDIO, I2C, LED PWM, PWM, ADC, resistance touch IP, TK80, LTDC

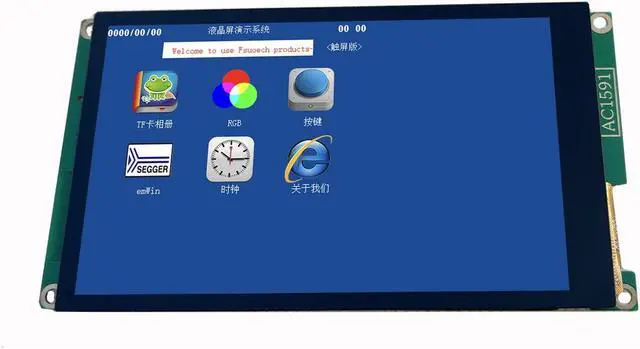

Display: IPS 4.3 inch, Full view angle, 800x480
Working voltage: 5V
Working current: About 300MA
Working temperature range: -40°C ~ +70°C
Size Weight: 116.2 mm* 62.9 mm* 8.5 mm (71g)
Power Supply
Power Supply: USB 5V/1A
JST Connector: 4Pin 1.25 mm
USB: Micro-USB
Wi-Fi: ESP8266-12F
Software specification:
Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
Packing Includes:
1pc development board with 4.3 inch IPS LCD Capacitive/Resistive Touch Screen
1pc 4GB TF card Class10
3pcs 4-pin wires
Specifications
:Chipset: TKM32F499 240MHz Cortex-M4 microprocessor
FLASH: QSPI flash 16MB
SRDAM: 8MB
Button: Reset, BOOT, APP
Modular interface: UART, SPI, SDIO, I2C, LED PWM, PWM, ADC, resistance touch IP, TK80, LTDC
Display: IPS 4.3 inch, Full view angle, 800x480
Working voltage: 5V
Working current: About 300MA
Working temperature range: -40°C ~ +70°C
Size Weight: 116.2 mm* 62.9 mm* 8.5 mm (71g)
Power Supply
Specifications
:Power Supply: USB 5V/1A
JST Connector: 4Pin 1.25 mm
USB: Micro-USB
Wi-Fi: ESP8266-12F
Software specification:
Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
Packing Includes:
1pc development board with 4.3 inch IPS LCD Capacitive/Resistive Touch Screen
1pc 4GB TF card Class10
3pcs 4-pin wires
