Frienda 10 Pieces I2C OLED Display Module OLED Screen Driver IIC I2C Tabellone Seriale con Display Auto-Luminoso Compatible with Arduino/Raspberry PI(Blue)
- Driver and communication: embedded driver IC; Communication is IIC/ I2C interface, only needs 2 I/O ports; Compatible with MMDVM, Pi-Star, and compatible with Raspberry pi
- Product information: resolution is 128 x 64; View angle is more than 160 degrees; Supporting voltage is from 3.3V to 5V DC; Power consumption during normal operation is 0.04W, full screen lit is 0.08W
- Driver and communication: embedded driver IC; Communication is IIC/ I2C interface, only needs 2 I/O ports; Compatible with MMDVM, Pi-Star, and compatible with Raspberry pi
- Self-luminous design: the OLED display module is self-luminous, so that no backlight is required; It features high contrast, bright and crisp dots, which is convenient for you to read tiny fonts
- Create fonts: there are no fonts embedded in the OLED controller, so users can use the font generation software to create the fonts
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Applicable for head-mounted displays, MP3, MP4, watch, meters and other intelligent instruments.
The OLED display module is self-luminous, which means OLED display is higher compared to that of LCD display in a dark environment.
Featuring an easy switch-cap charge pump that turns 5V into a low voltage drive for the OLE
Ds, which makes the module the easiest ways to bring OLED into a project.

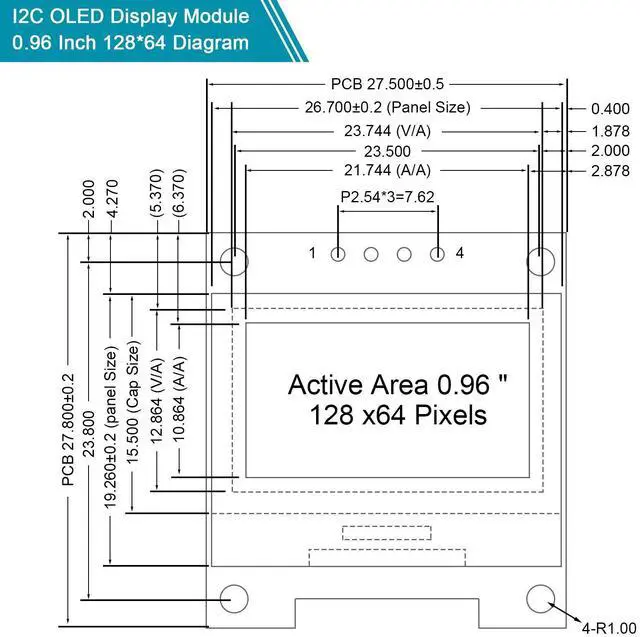

Size: 0.96 inch
Display: blue
High resolution: 128 x 64
Voltage: 3.3V - 5V DC
Viewing angle: more than 160 degrees
Working Temperature: - 30 - 70 degrees Celsius
Screen material: glass, need good protection

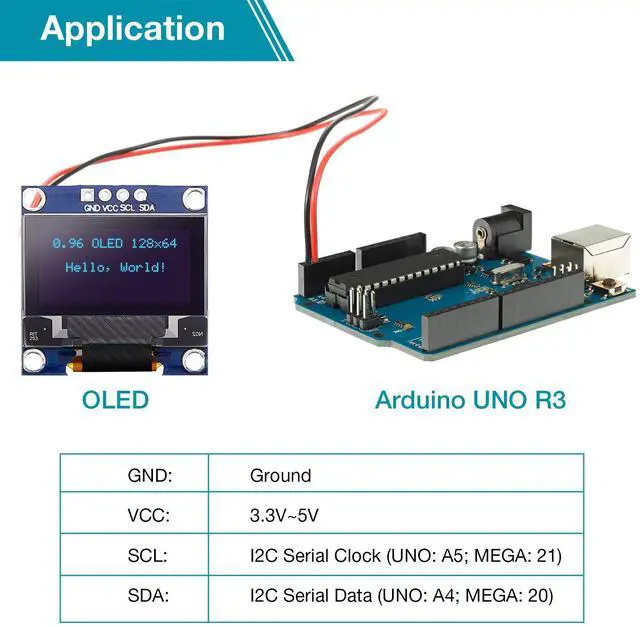

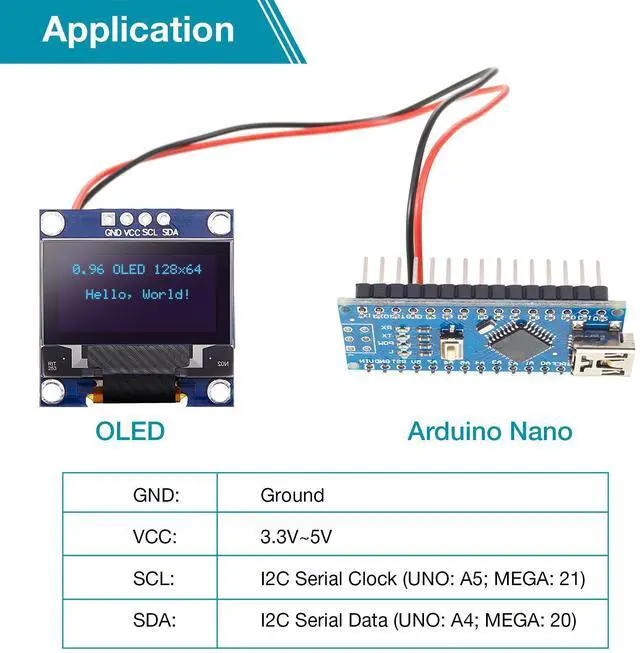

I2C Interface:
GND: ground
VCC: 3.3V - 5V
SCL: I2C serial clock (A5; MEGA: 21)
SDA: I2C serial data (A4; MEGA: 20)
Package includes:
10 x OLED Display modules in 0.96 inches 128 x 64 blue
Notes:
The mention of brand names and any related models above is only for purposes of demonstrating compatibility, not for brand use, our brand is Frienda.
Applicable for head-mounted displays, MP3, MP4, watch, meters and other intelligent instruments.
The OLED display module is self-luminous, which means OLED display is higher compared to that of LCD display in a dark environment.
Featuring an easy switch-cap charge pump that turns 5V into a low voltage drive for the OLE
Ds, which makes the module the easiest ways to bring OLED into a project.
Specifications
:Size: 0.96 inch
Display: blue
High resolution: 128 x 64
Voltage: 3.3V - 5V DC
Viewing angle: more than 160 degrees
Working Temperature: - 30 - 70 degrees Celsius
Screen material: glass, need good protection
I2C Interface:
GND: ground
VCC: 3.3V - 5V
SCL: I2C serial clock (A5; MEGA: 21)
SDA: I2C serial data (A4; MEGA: 20)
Package includes:
10 x OLED Display modules in 0.96 inches 128 x 64 blue
Notes:
The mention of brand names and any related models above is only for purposes of demonstrating compatibility, not for brand use, our brand is Frienda.
