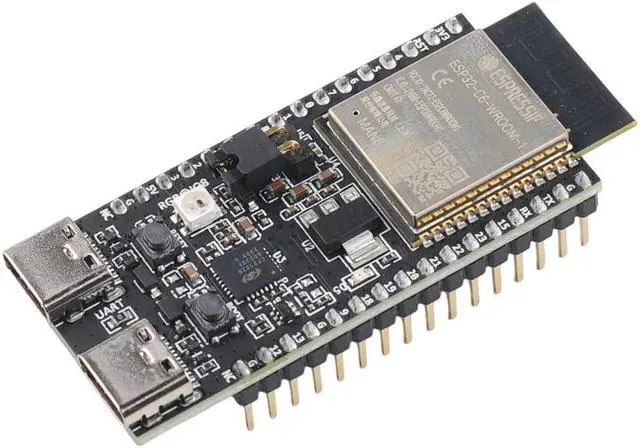

ESP32-C6-DevKitC-1 N8 Development Board ESP32 C6 32-bit 8MB SPI Flash ESP32-C6-WROOM-1 Module Supports Wi-Fi BLE Zigbee3.0 Thread1.3

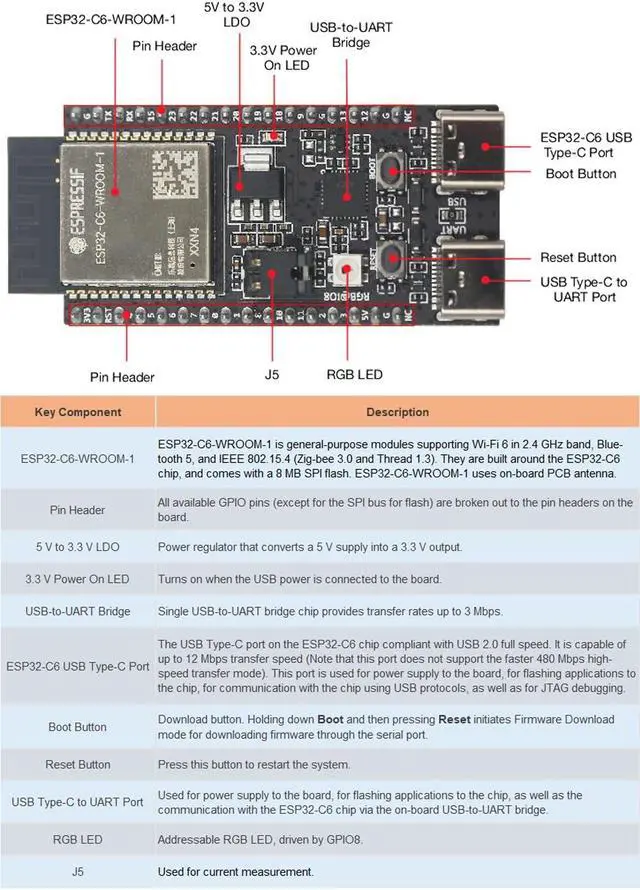

- ESP32-C6-DevKitC-1 is an entry-level development board based on ESP32-C6-WROOM-1, integrates complete Wi-Fi, Blue-tooth LE, Zig-bee, and Thread functions, supports 2.4 GHz Wi-Fi 6 (802.11 ax), Bluetooth5(LE), Zigbee3.0 and Thread1.3 (802.15.4)
- Built around ESP32-C6 series of SoCs, 32-bit RISC-V single-core microprocessor, comes with a 8 MB SPI flash, uses on-board PCB antenna

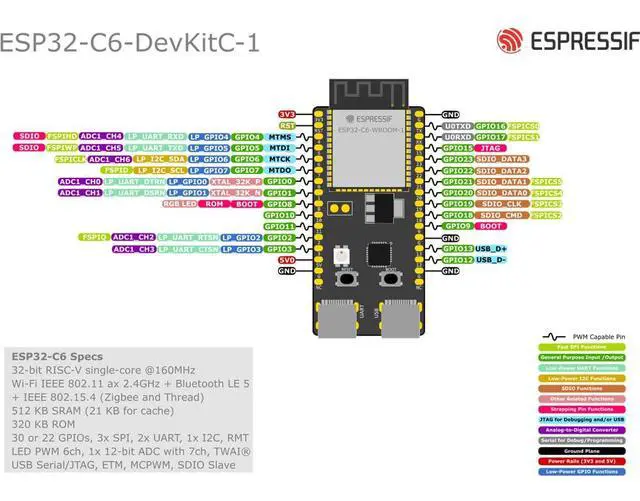

- Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard
- There are three mutually exclusive ways to provide power to the board: USB Type-C to UART Port and ESP32-C6 USB Type-C Port (either one or both), default power supply (recommended) 5V and GND pin headers 3V3 and GND pin headers
- Applications: Smart Home, Pos machines, Industrial Automation, Service robot, Health Care Audio Devices, Consumer Electronics, Generic Low-power loT Sensor Hubs, Smart Ag
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
CPU and On-Chip Memory
ESP32-C6 embedded, 32-bit RISC-V single-core microprocessor, up to 160 MHz
ROM: 320 KB
HP SRAM: 512 KB
LP SRAM: 16 KB
Wi-Fi:
1T1R in 2.4 GHz band
Operating frequency: 24122484 MHz
IEEE 802.11 ax-compliant
Fully compatible with IEEE 802.11 b/g/n protocol
Blue-tooth:
BluetoothLE: Bluetooth 5.3 certified
Blue-tooth mesh
High power mod (20dBm)
Speed: 125Kbps, 500Kbps, 1Mbps, 2Mbps
Advertising extensions
Multiple advertisement sets
Channel selection algorithm#2
LE power control
Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
IEEE 802.15. 4:
Compliant with IEEE 802.15. 42015 protocol
OQPSK PHY in 2.4 GHz band
Data rate: 250Kbps
Thread 1.3
Zigbee 3.0
Peripherals:
GPIO, SPI, parallel IO interface, UART, I2C, I2S, RM (TX/RX), pulse counter, LED PWM, USB Serial/JTA Gcontroller, MCPWM, SDIO 2.0 slave controller, GDMA, TWAI controller, on-chip debug functionality via JTAG, event task matrix, ADC, temperature sensor, general-purpose timers, watchdog timers, etc.
Integrated Components on Module:
40 MHz crystal oscillator
SPI flash
Applications:
Smart Home
Pos machines
Industrial Automation
Service robot
Health Care
Audio Devices
Consumer Electronics
Generic Low-power loT Sensor Hubs
Smart Agriculture
Generic Low-power loT Data Loggers
Package includes:
1 X ESP32-C6-DevKitC-1 N8 development board
CPU and On-Chip Memory
ESP32-C6 embedded, 32-bit RISC-V single-core microprocessor, up to 160 MHz
ROM: 320 KB
HP SRAM: 512 KB
LP SRAM: 16 KB
Wi-Fi:
1T1R in 2.4 GHz band
Operating frequency: 24122484 MHz
IEEE 802.11 ax-compliant
Fully compatible with IEEE 802.11 b/g/n protocol
Blue-tooth:
BluetoothLE: Bluetooth 5.3 certified
Blue-tooth mesh
High power mod (20dBm)
Speed: 125Kbps, 500Kbps, 1Mbps, 2Mbps
Advertising extensions
Multiple advertisement sets
Channel selection algorithm#2
LE power control
Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
IEEE 802.15. 4:
Compliant with IEEE 802.15. 42015 protocol
OQPSK PHY in 2.4 GHz band
Data rate: 250Kbps
Thread 1.3
Zigbee 3.0
Peripherals:
GPIO, SPI, parallel IO interface, UART, I2C, I2S, RM (TX/RX), pulse counter, LED PWM, USB Serial/JTA Gcontroller, MCPWM, SDIO 2.0 slave controller, GDMA, TWAI controller, on-chip debug functionality via JTAG, event task matrix, ADC, temperature sensor, general-purpose timers, watchdog timers, etc.
Integrated Components on Module:
40 MHz crystal oscillator
SPI flash
Applications:
Smart Home
Pos machines
Industrial Automation
Service robot
Health Care
Audio Devices
Consumer Electronics
Generic Low-power loT Sensor Hubs
Smart Agriculture
Generic Low-power loT Data Loggers
Package includes:
1 X ESP32-C6-DevKitC-1 N8 development board
