SIM7028 NB-IoT HAT for Raspberry Pi 5/4B/3B+/2B/Zero/Zero 2W and Jetson Nano,Onboard 40PIN GPIO Header, Supports Global Band NB-IoT Communication with GSM Antenna Type-C Interface

Overview

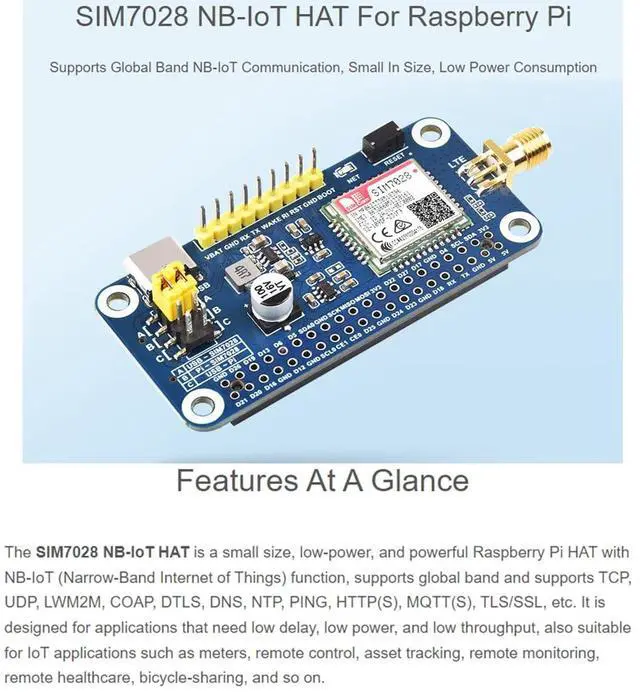

Waveshare SIM7028 NB-IoT HAT is a small size, low-power, and powerful Raspberry Pi HAT with NB-IoT (Narrow-Band Internet of Things) function, supports global band and supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP (S), MQTT (S), TLS/SSL, etc. It is designed for applications that need low delay, low power, and low throughput, also suitable for IoT applications such as meters, remote control, asset tracking, remote monitoring, remote healthcare, bicycle-sharing, and so on.

Features

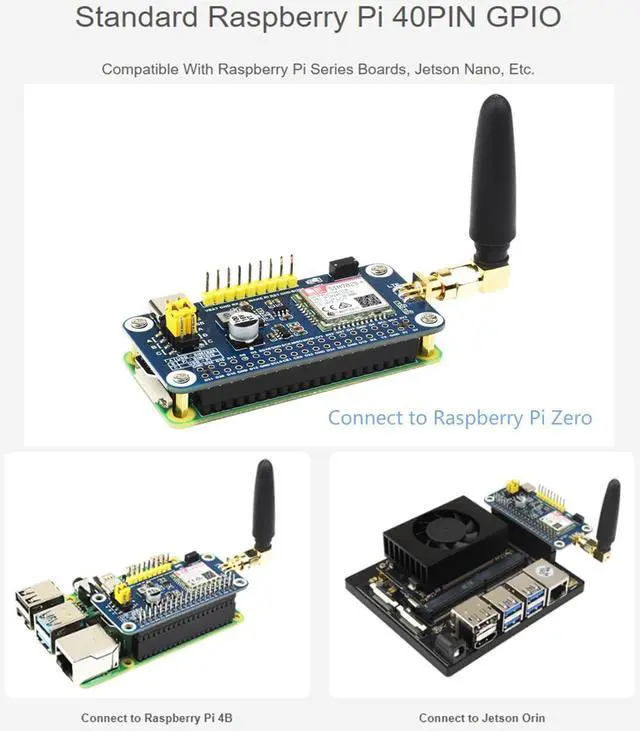

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano, etc.
Supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP (S), MQTT (S), TLS/SSL, etc.
Onboard Type-C interface for software debugging
Onboard UART control pins, for connecting with host boards like Arduino/STM32
1x LED indicators, easy to monitor the working status
Onboard USB to UART chip, the UART communication pin can be configured via jumper
Onboard nano SIM card slot, compatible with NB-IoT specific card
Baudrate: 2400bps ~ 460900bps (115200bps by default)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: SAT Class 3, GSM 11.11, USAT

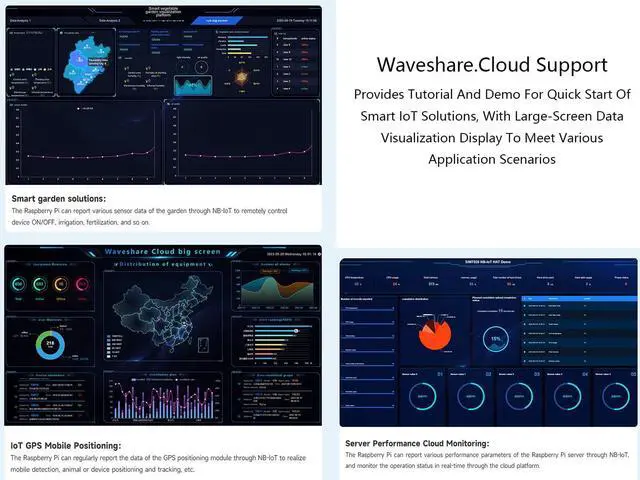

Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/ESP32)

Specifications

Communication parameters
Band: B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B70/B85
Data rate: 159Kbps (UL); 127Kbps (DL)

Operating parameters
Power supply: 5V
Logic level: 5V/ 3.3V ( 3.3V by default)
Overall current (idle mode): 4mA

Comes with Online Tutorial/Online Document,
please check: n9. cl/oofhj

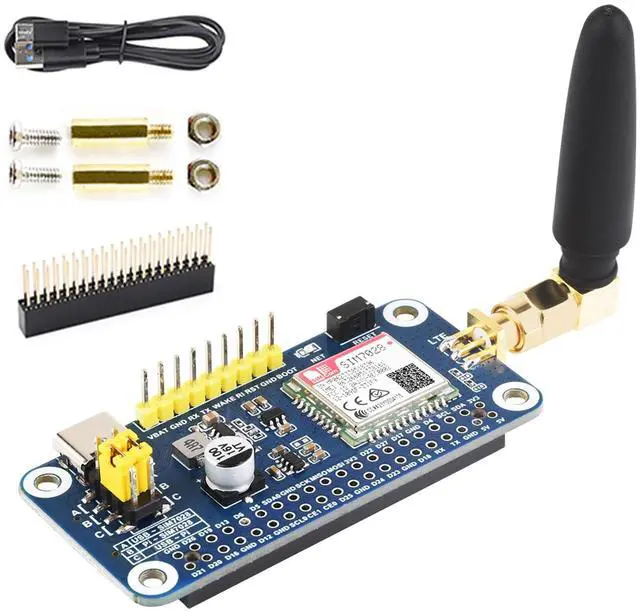

Package Content
SIM7028 NB-IoT HAT x1
GSM Antenna x1
USB Type-A to Type-C cable x1
2×20PIN female header x1
Standoffs pack x1
