Deal4GO SATA Interposer Board D3P25 LS-J106P to NVMe M.2 SSD Hard Drive SSD-3 and SSD-4 w/ 2.5" HDD Bracket R24Y6 for Dell Alienware Area-51m R2
- Compatible with Dell Alienware Area-51m R2 series ONLY.

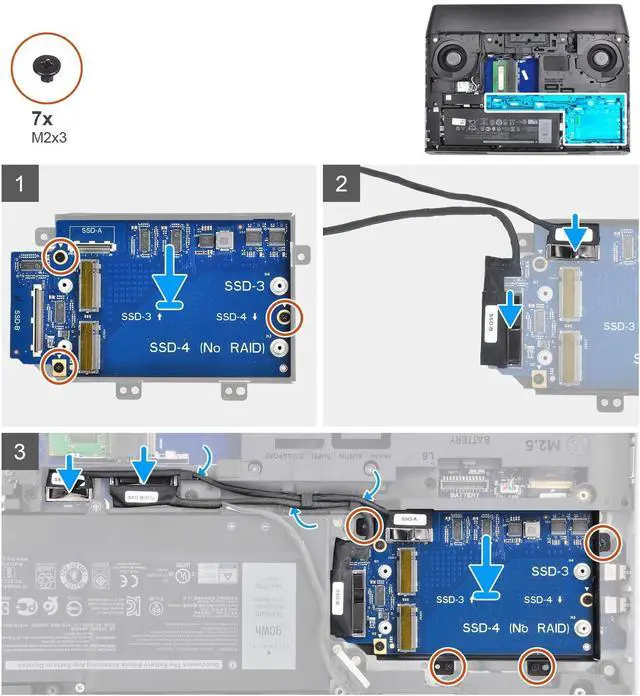

- These parts to help you install the TWO M.2 SSD by 2.5" HDD bay additional (SSD-3 & SSD-4 Slots).
- SATA interposer Board Part Number(s): D3P25, 0D3P25, CN-0D3P25, LS-J106P. HDD Bracket P/N: 0R24Y6, R24Y6, FDQ70_SSD_SLED_BRACKET_SUB_ASSY, AM2RE000400.
- Heatsink Part Number(s): 3JTF8, 03JTF8, CN-03JTF8. 30-pin Cable D P/N: 2JH8P, 02JH8P, CN-02JH8P. 50-pin Cable D P/N: 5F1WR, 5F1WR, CN-05F1WR

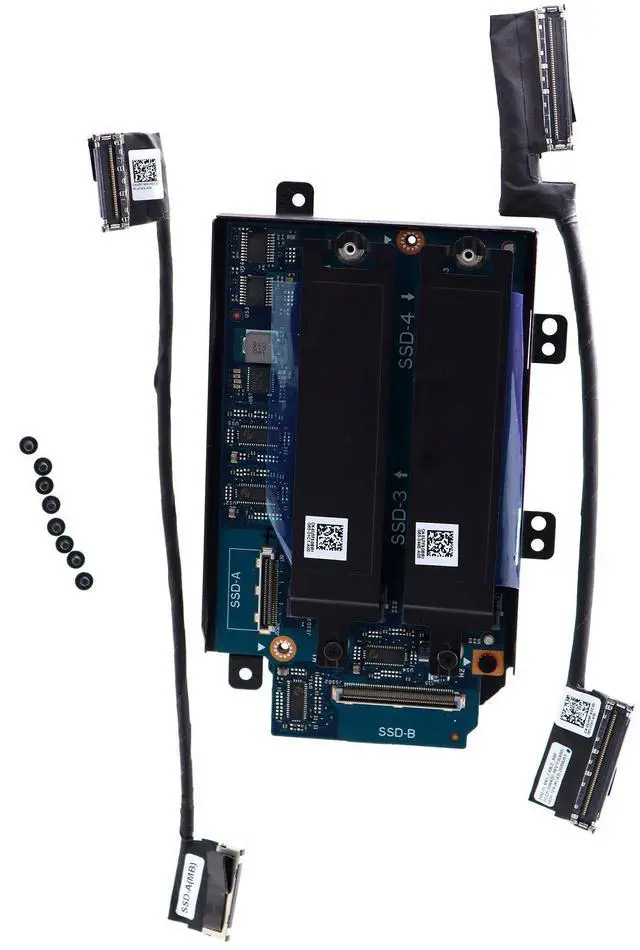

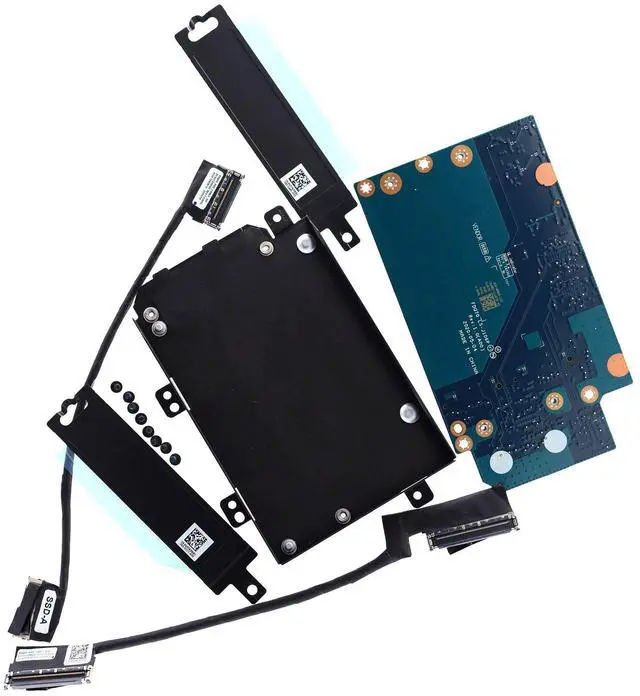

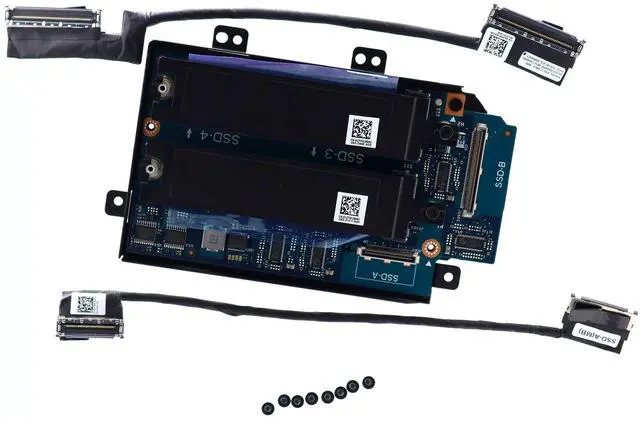

- Each Pack come with 1x SATA interposer Board, 1x 2.5" HDD Bracket, 2x M.2 2280 Heatsink, 1x 30-pin Cable, 1x 50-pin Cable, 8x Screws.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This SATA interposer Board provides the solution for you to add TWO SSD (SSD-3 & SSD-4 Slots) to Area-51m R2, Which includes the 2.5 -inch cage NVMe silicone interposer board D3P25 LS-J106P, 50-pin Cable #1 2JH8P, 30-pin Cable #2 5F1WR and all the other separate parts of screws, etc. SATA interposer Board
Part Number (s): D3P25, 0D3P25, CN-0D3P25, LS-J106PHDD
Bracket P/N: 0R24Y6, R24Y6, FDQ70_SSD_SLED_BRACKET_SUB_ASSY, AM2RE000400Heatsink
Part Number (s): 3JTF8, 03JTF8, CN-03JTF8-DBIR1-065-01B8-A0050-pin
Cable D P/N (SSD-B): 2JH8P, 02JH8P, CN-02JH8P, DC02C00NX00, FDQ70_SSD_CABLE_50P30-pin
Cable D P/N (SSD-A): 5F1WR, 5F1WR, CN-05F1WR, DC02C00N100, FDQ70_SSD_CABLE_30PReference list of compatible with
Dell Laptop Models: - Area-51m R2Whats in the box1x 2.5" SATA interposer Board1x 2.5" HDD Bracket2x M. 2 2280 Heatsink (SSD-3 & SSD-4 Slots)1x 30-pin Cable1x 50-pin Cable8x Screws (M2x3)
Part Number (s): D3P25, 0D3P25, CN-0D3P25, LS-J106PHDD
Bracket P/N: 0R24Y6, R24Y6, FDQ70_SSD_SLED_BRACKET_SUB_ASSY, AM2RE000400Heatsink
Part Number (s): 3JTF8, 03JTF8, CN-03JTF8-DBIR1-065-01B8-A0050-pin
Cable D P/N (SSD-B): 2JH8P, 02JH8P, CN-02JH8P, DC02C00NX00, FDQ70_SSD_CABLE_50P30-pin
Cable D P/N (SSD-A): 5F1WR, 5F1WR, CN-05F1WR, DC02C00N100, FDQ70_SSD_CABLE_30PReference list of compatible with
Dell Laptop Models: - Area-51m R2Whats in the box1x 2.5" SATA interposer Board1x 2.5" HDD Bracket2x M. 2 2280 Heatsink (SSD-3 & SSD-4 Slots)1x 30-pin Cable1x 50-pin Cable8x Screws (M2x3)
