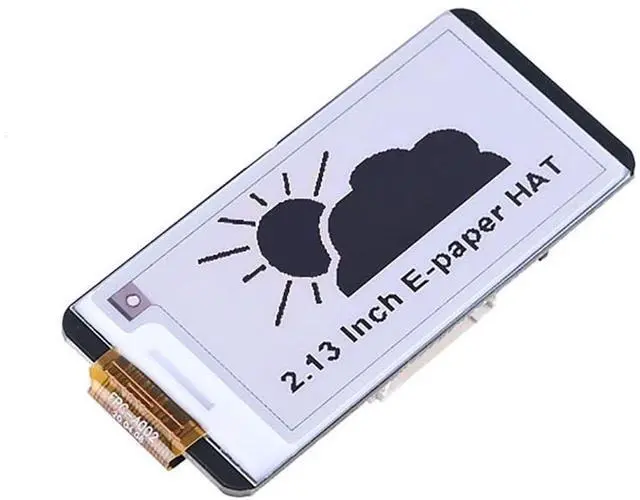

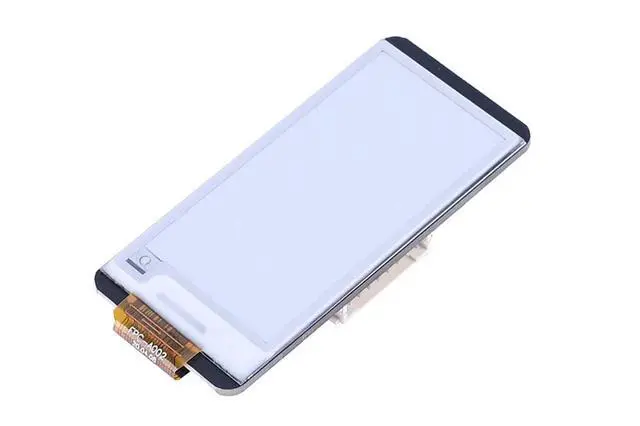

xicoolee 2.13inch E-Paper Display Module for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, 122 x 250 Pixels Two-Colour, Supports Partial 560ms and Full 950ms Refresh SPI Interface
- 122 x 250 pixels, 2.13 inch e-paper e-ink display module is based on compatible with Raspberry Pi 40PIN GPIO header design, intended for Raspberry Pi series motherboard, such as for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B
- Supports partial refresh minimum 560ms (4-wire SPI status) and full refresh Minimum 950ms (4-wire SPI status). We provide open source demo codes available for Raspberry Pi, Ardui. Mega and STM32 development boards

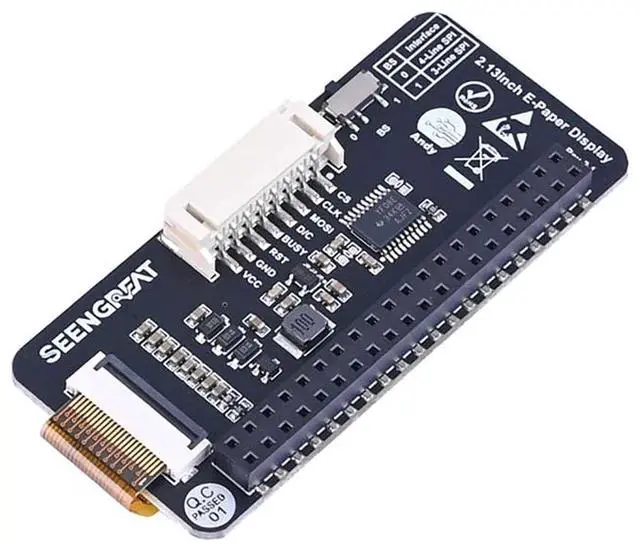

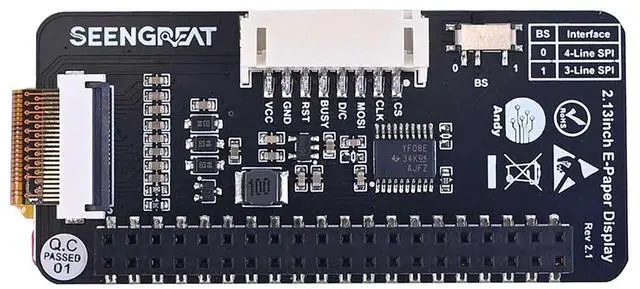

- SPI communication interface is reserved to facilitate connect to Arduino/STM32 and other control boards. SPI interface, less pin occupation. Adds a SPI line number selector switch
- Onboard Voltage Translator, which can be compatible with 3.3V and 5V MCUs
- Low power consumption. Keeps displaying last content for a long time even when power down. Basically power is only required for refreshing
+
+
Overview
Specs
Reviews
122 x 250 pixels, 2.13 inch e-paper e-ink display module is based on compatible with Raspberry Pi 40PIN GPIO header design, intended for Raspberry Pi series motherboard, such as for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B ^^ Supports partial refresh minimum 560ms (4-wire SPI status) and full refresh Minimum 950ms (4-wire SPI status). We provide open source demo codes available for Raspberry Pi, Ardui. Mega and STM32 development boards ^^ SPI communication interface is reserved to facilitate connect to Arduino/STM32 and other control boards. SPI interface, less pin occupation. Adds a SPI line number selector switch ^^ Onboard Voltage Translator, which can be compatible with 3.3V and 5V MCUs ^^ Low power consumption.
Keeps displaying last content for a long time even when power down. Basically power is only required for refreshing
Keeps displaying last content for a long time even when power down. Basically power is only required for refreshing
