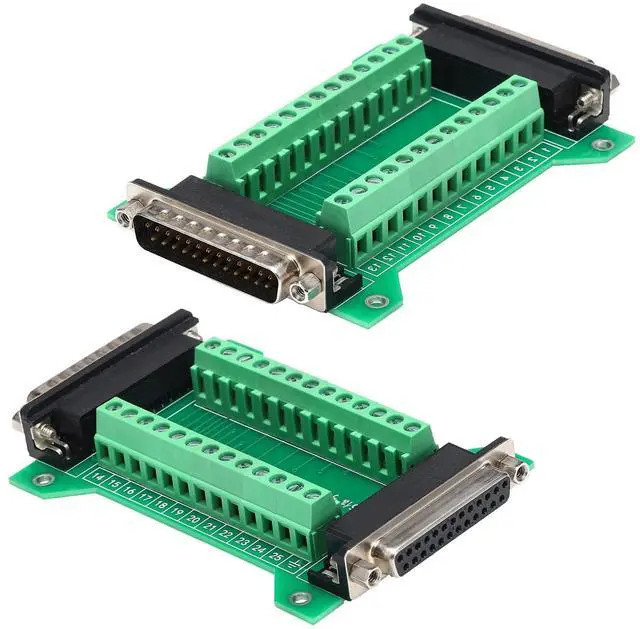

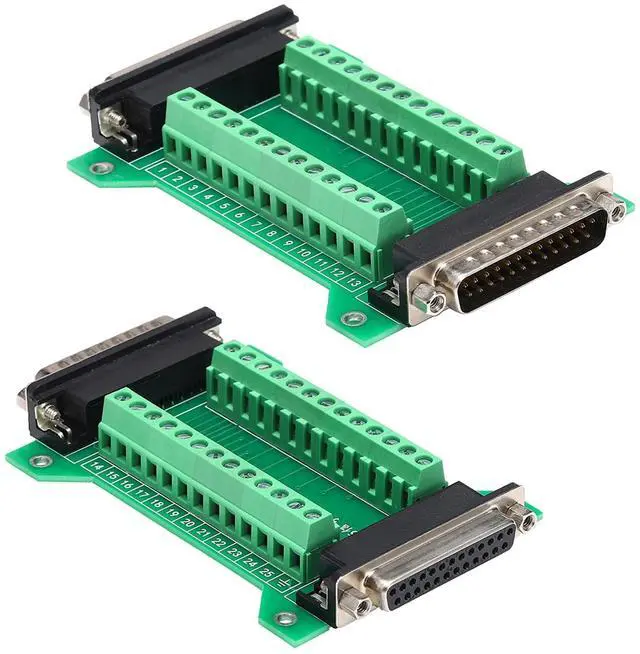

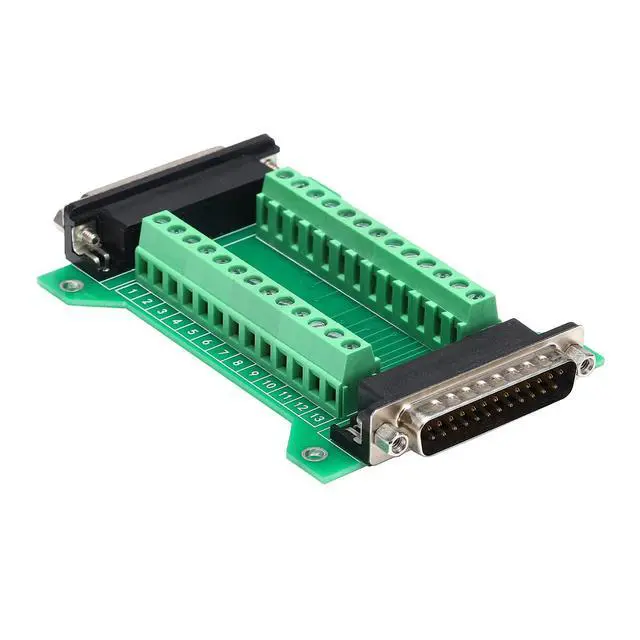

Jienk 2Pcs DB25 Male to Female Terminal Breakout Board, RS232 D-SUB Serial to 25pin Port Terminal Block Gender Changer Connector
- DB25 Female and Male Connector in One Breakout Board, one end is DB25 male connector, other end is DB25 female connector. Convert a DB25 female connection to a DB25 male connection, use for serial applications.
- DurableAll copper base with gold plated joints thickened FR-4 fiber glass PCB board, ensures good contact anti-oxidation and a long serve life.
- Wildly ApplicationsThis db25 breakout board connect all kinds of serial devices. Such as automatic control equipment, industrial control equipment, cash register,computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
- FlexibilityThe terminal block it's more easier than soldering wires onto a connector. Can be used for test purpose and check pinouts, cables or any devices with RS232 interface.
- No Soldering Required Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

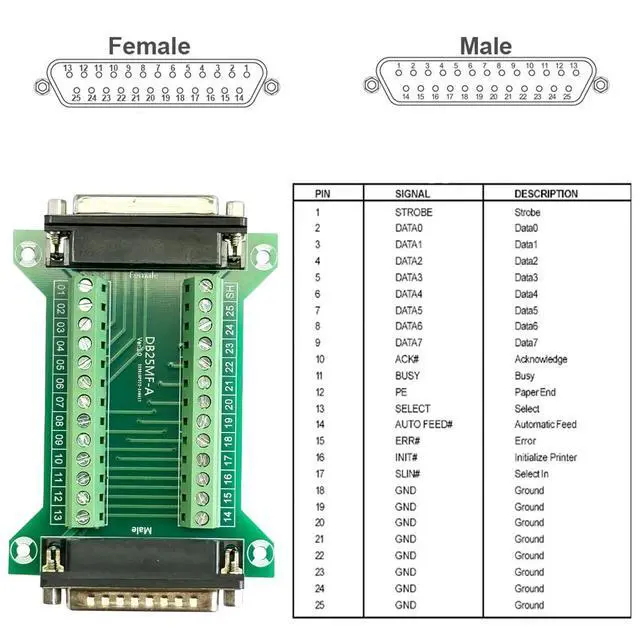

This is a DB25 solderless male/female breakout connector. It is a RS232 serial DB25 25-pin to 25 position screw terminal block. Every terminal is clearly marked, they can easily be connected to a custom length cable, creating a permanent and durable connection for all serial devices. SpecificationsPCB dimensions (L x
W): 110
x 70mmTerminal hole diameter: 0.12
''/3mmTerminal hole center distance: 5.08 mmWire
Range: 22-12AWG
Rated Voltage: 24VRated
Current: 2AConnect
Type: Male/Female
with nutMaterial: Copper
base and plasticTorque: 0.2N m ( 1.7L b-In.
)Screws: Steel, Cr3+ Zn platedPin header and cage: Gold
plated brassPackage included: 2 x DB25 breakout board male/female adapter with nut
W): 110
x 70mmTerminal hole diameter: 0.12
''/3mmTerminal hole center distance: 5.08 mmWire
Range: 22-12AWG
Rated Voltage: 24VRated
Current: 2AConnect
Type: Male/Female
with nutMaterial: Copper
base and plasticTorque: 0.2N m ( 1.7L b-In.
)Screws: Steel, Cr3+ Zn platedPin header and cage: Gold
plated brassPackage included: 2 x DB25 breakout board male/female adapter with nut
