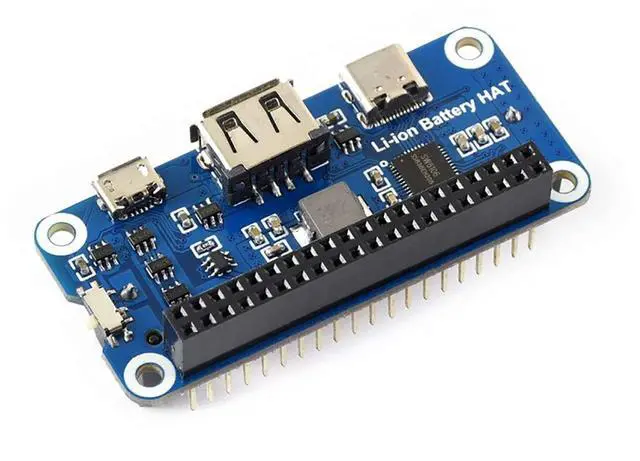

waveshare Li-ion Battery HAT for Raspberry Pi 5V Regulated Output Bi-Directional Quick Charge Integrates SW6106 Power Bank Supports PD/QC/FCP/PE/SFCP
- The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device.
- It will charge the battery as well, supports bi-directional quick charge.
- Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection.
- This module can be used as a universal mini power bank, also works with other 5V devices.
- This is not a UPS, please note that the Raspberry Pi will restart when you connect it to the Pi. If you need a UPS, please check the UPS HAT.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Li-Ion Battery HAT For Raspberry Pi, 5V Regulated Output, Bi-Directional Quick ChargeFeaturesOnboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and
short circuit protectionOnboard indicators: quick charge, warning, and
power capacitySpecificationsOutput voltage: 5VApplicable

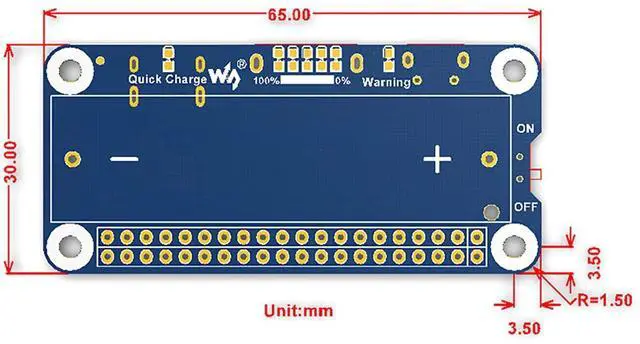

battery: 3.7V 14500 lithium battery ( 4.2V when full charged)Dimension: 65mm
30mmMounting hole size: 3.0 mmDevelopment ResourcesPlease contact us or visit the official website of WavesharePACKAGE CONTENT

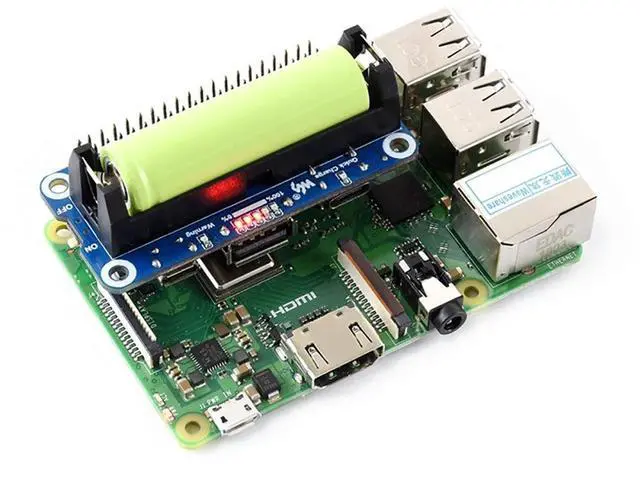

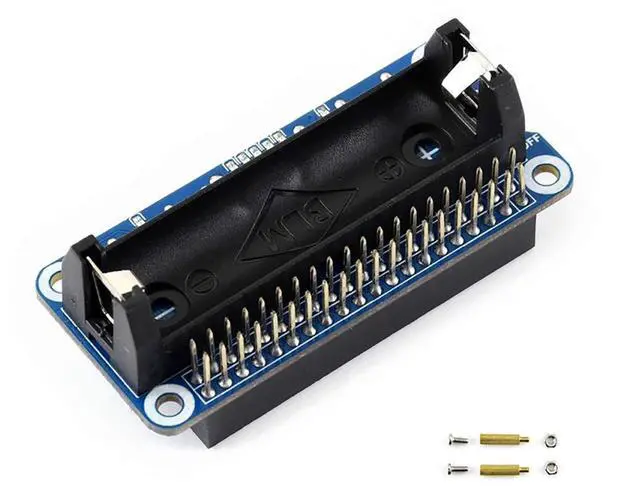

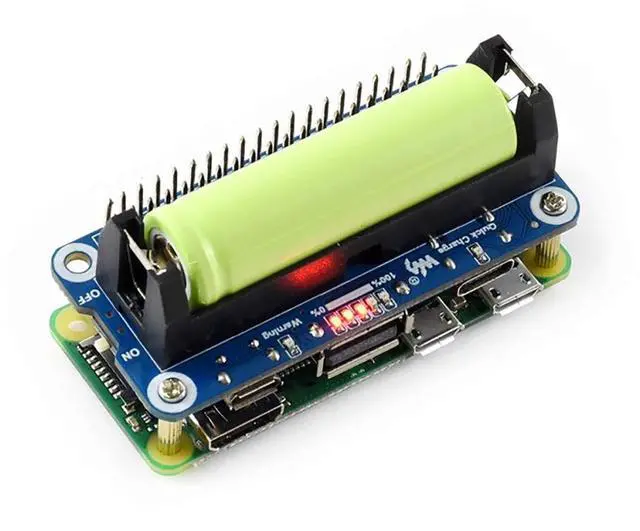

Note: the Raspberry Pi and 14500 battery in the photo are NOT included. Li-ion Battery HAT x1RPi screws pack (2pcs) x1
Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and
short circuit protectionOnboard indicators: quick charge, warning, and
power capacitySpecificationsOutput voltage: 5VApplicable
battery: 3.7V 14500 lithium battery ( 4.2V when full charged)Dimension: 65mm
30mmMounting hole size: 3.0 mmDevelopment ResourcesPlease contact us or visit the official website of WavesharePACKAGE CONTENT
Note: the Raspberry Pi and 14500 battery in the photo are NOT included. Li-ion Battery HAT x1RPi screws pack (2pcs) x1
