A Pair Gigabit Ethernet SFP Fiber Media Converters with Dual Core LC Transceiver Module, Single-Mode LC, SMF RJ45 to SFP Slot up to 20KM, 10/100/1000Base-Tx to 1000Base-SX (2 Pack)

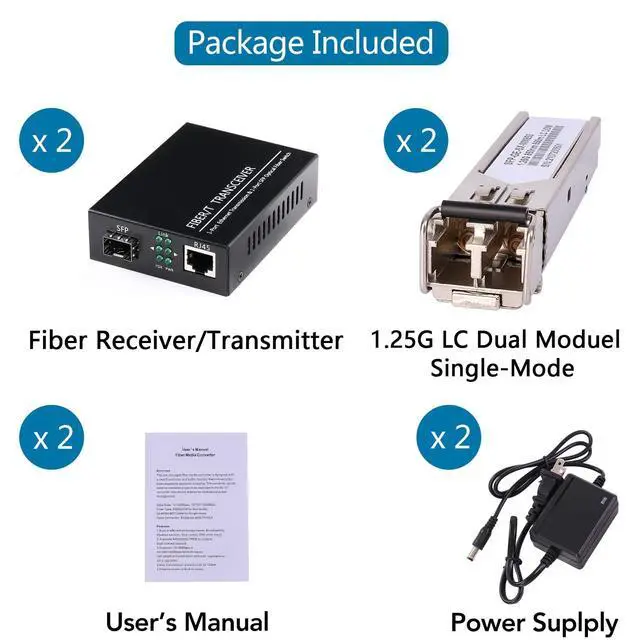

- Whats Included: 2pcs Gigabit Single-mode Ethernet SFP Slot media converters; 2pcs SFP Bidi LC Dual Core transceiver; 2pcs AC/DC Power Supply; 1 x Users Manual. Support wide power supply voltage (100V-240V), Power Supply: 5V-1A, UL Certified.
- RJ45 Port: 10M/100M/1000M Auto-negotiation, full Duplex or half Duplex, Auto-negotiation, Supports MDI/MDIX auto-crossover, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.

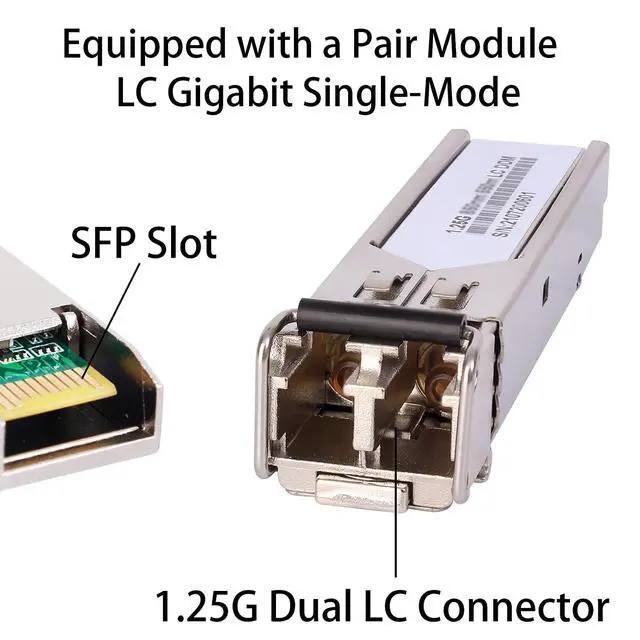

- Fiber Optical Port: 1.25Gbps 1310-nm wavelength SFP port, connecting the BiDi transceivers up to 20km(2 SFP LX Transceiver included); Fiber Type: SMF, Cable Type: UTP/STP Cat.5e for 100 meters.
- Plug & Play: Simply plug in optical port and RJ45 port, and it will work immediatelly. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status. Supports jumbo frame size 9K bytes; Supports working temperature range from 0C to 60C.
- 100% Money Guarantee15 years OEM factory competency, Most efficient technical support with superb processing technology.Our com
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

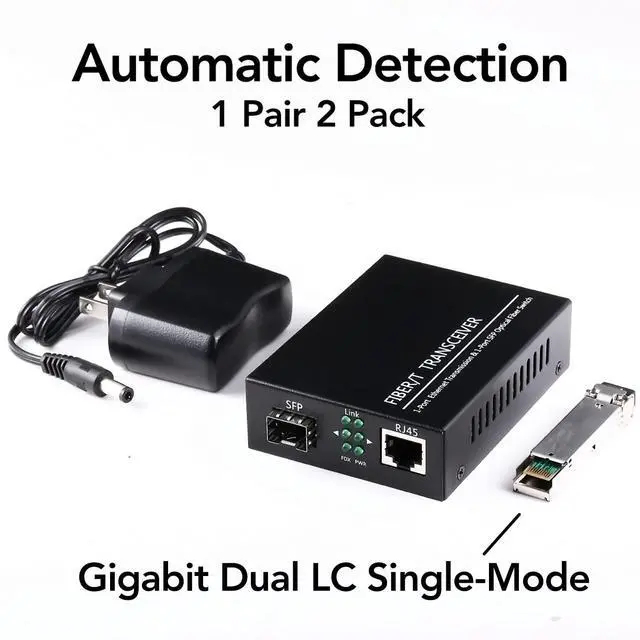

Product Include (LC Dual Core) 2xSingle-mode Gigabit Ethernet SFP Fiber Media Converter2xBiDi Dual Core SFP slot LC Transceiver module up to 20km2xDC
Power Adapter Output voltage: 5V DC/1A1xProduct Manual, Multi-Language Quick Installation GuideFeature Introduction1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX Dual Core SFP Fiber Gigabit Media Converter2.
Fiber Type: Single-mode, Fiber
Connector: Dual LC, Wavelength: 1310nm, Reach: 20km,
Included Power Supply Weight: 0.35 kg3.
Interface: SFP Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiationExcellent Function1. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.

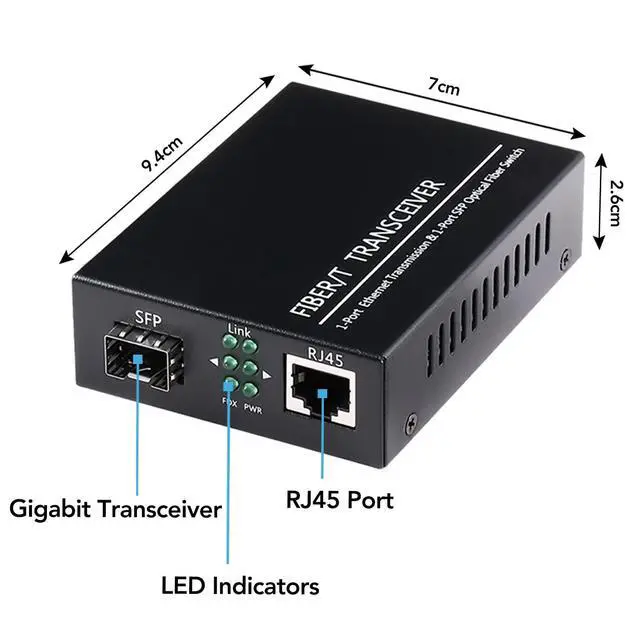

Dimensions: 95x72x27mm (DxWxH) 2.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life3. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion4.
Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation 3 watts, External
Power: AC100V~240V5. High-quality Conversion Chip & Easy Installation, Operating-Storage
temperature: -20C to 70C.
Humidity: 5% to 90% RHWide Applications1. Extend or bridge networks using fiber cable2. Ideal for secure connections required by government or corporations where EMI is not acceptable3. Provide connectivity to users in an isolated area of a large complex or in a separate buildingLED Indicators1.
FP: Light on when fiber speed is 1000Mbps, else light off2.
TP: Light on when TP speed is 1000Mbps, else light off3.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active4.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving5.
PWR: Light on when DC power on, else light off.
Power Adapter Output voltage: 5V DC/1A1xProduct Manual, Multi-Language Quick Installation GuideFeature Introduction1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX Dual Core SFP Fiber Gigabit Media Converter2.
Fiber Type: Single-mode, Fiber
Connector: Dual LC, Wavelength: 1310nm, Reach: 20km,
Included Power Supply Weight: 0.35 kg3.
Interface: SFP Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiationExcellent Function1. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Dimensions: 95x72x27mm (DxWxH) 2.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life3. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion4.
Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation 3 watts, External
Power: AC100V~240V5. High-quality Conversion Chip & Easy Installation, Operating-Storage
temperature: -20C to 70C.
Humidity: 5% to 90% RHWide Applications1. Extend or bridge networks using fiber cable2. Ideal for secure connections required by government or corporations where EMI is not acceptable3. Provide connectivity to users in an isolated area of a large complex or in a separate buildingLED Indicators1.
FP: Light on when fiber speed is 1000Mbps, else light off2.
TP: Light on when TP speed is 1000Mbps, else light off3.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active4.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving5.
PWR: Light on when DC power on, else light off.
