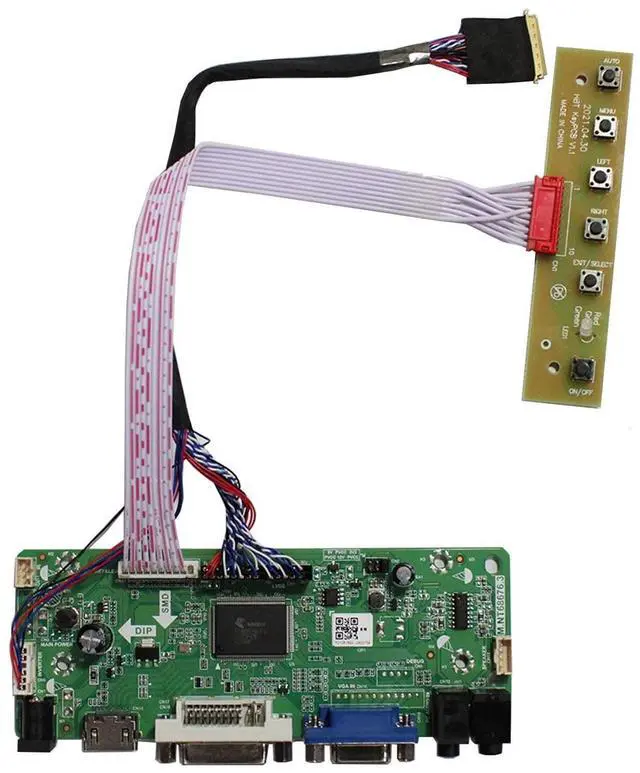

VGA DVI Audio LVDs Controller Board 40 Pin for 15.6" 17.3" 1920x1080 B156HW01 LP156WF1 N173HGE-L21 B173HW01 LP173WF1 WLED LCD Screen

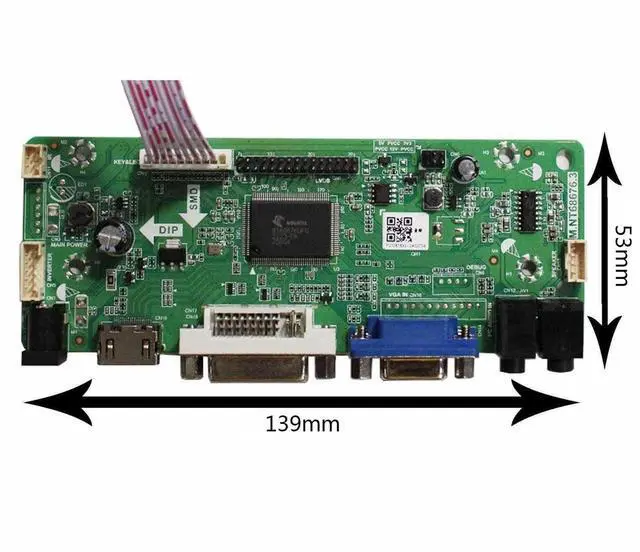

- LCD Controller Board Work for 1920x1080 WLED 40 Pin LVDs LCD Screen,Video input: VGA DVI ,Audio Output: Speaker Connector 8ohm 2W 70x33x15mm 4Pin PH2.0 connection)
- Input Power Supply12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself.
- Compatible Screen modelsB156HW01 V.0 B156HW01 V.4 B156HW01 V.7 LP156WF1 (Except LP156WF1-TPB1 ) LP156WF2 N156HGE-L11
- Important The function for this board is to light up the screen. Please use in insulated environment. Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.
- simple Q&ABlack screen :maybe for wrong connecting or no signal enter into screen; White screen: caused by reverse cable connecting with screen port or wrong resolution;So pls double check the cable connecting ,resolution setting,and signal resource entering in ;Restarting again :For the current of power supply is too small ,So Pls try with larger current .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fit For: 15.6

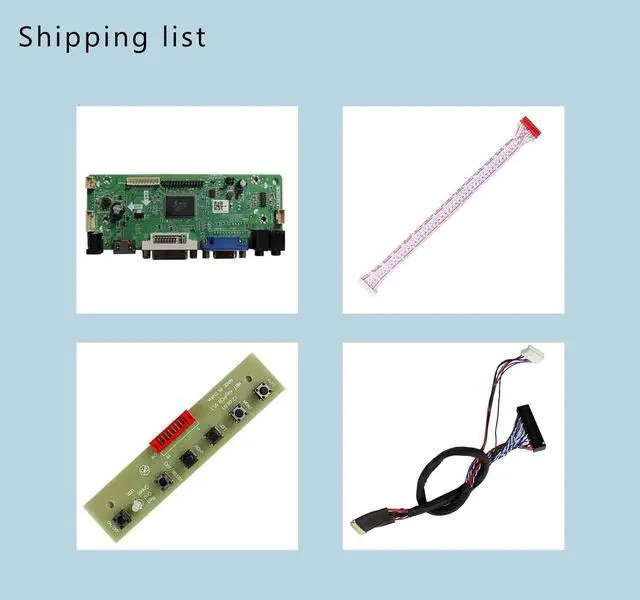

inch 1920*1080: B156HW01 V. 0 B156HW01 V. 4 B156HW01 V. 7 B156HW02 LP156WF1 N156HGE-L 1117.3 inch 1920*1080: LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01Package content: 1 H/D+DVI+VGA+Audio lcd controller board1 40Pin LVDS Cable1
Keyboard with WireNote: 1. Power Supply is NOT included2. If you dont know how to connect the Screen, please feel free to contact us
inch 1920*1080: B156HW01 V. 0 B156HW01 V. 4 B156HW01 V. 7 B156HW02 LP156WF1 N156HGE-L 1117.3 inch 1920*1080: LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01Package content: 1 H/D+DVI+VGA+Audio lcd controller board1 40Pin LVDS Cable1
Keyboard with WireNote: 1. Power Supply is NOT included2. If you dont know how to connect the Screen, please feel free to contact us
