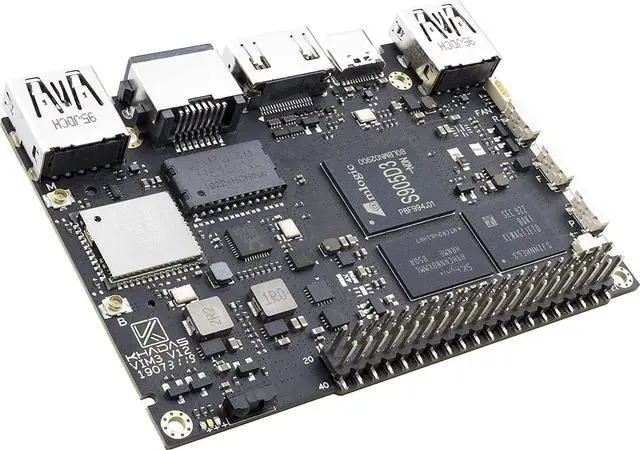

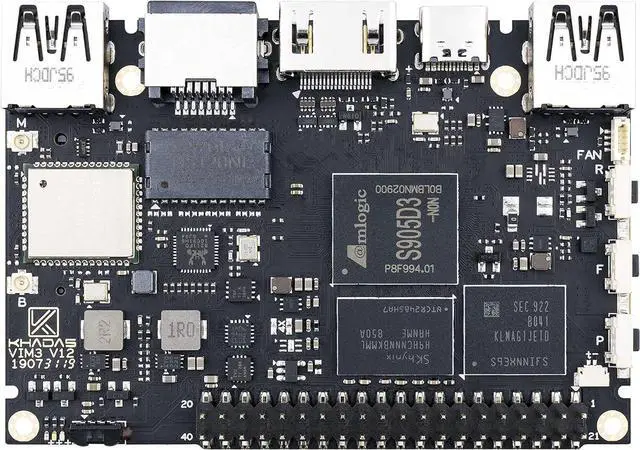

khadas VIM3L Amlogic S905D3 Single Board Computer with 1.2 Tops,16MB SPI Flash,MCU Programmable,4K Playback at 75fps, Gigabit Ethernet with WOL, Bluetooth 5.0, DIY Home Theatre PC(VIM3L)
- High Performance:Amlogic S905D312nm process for low heat & high efficiency2T2R AC Wi-Fi with RSDB FeaturesBluetooth 5.0USB 3.0 AvailableGigabit Ethernet with WOL supportLPDDR4/XUSB-C PD for heavy applications
- Neural Network Accelerator:NPU: Supports a maximum frequency of 800MHz at 1.2 TOPS;INT8 inference up to 1536 MAC;Internal L2 cache (512KB) and system workspace buffer (1MB);Supports all major deep learning frameworks including; TensorFlow and Caffe
- Dual independent displays with GSensor;H.264 / H.265 Encoding; Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps; VIN Power Input

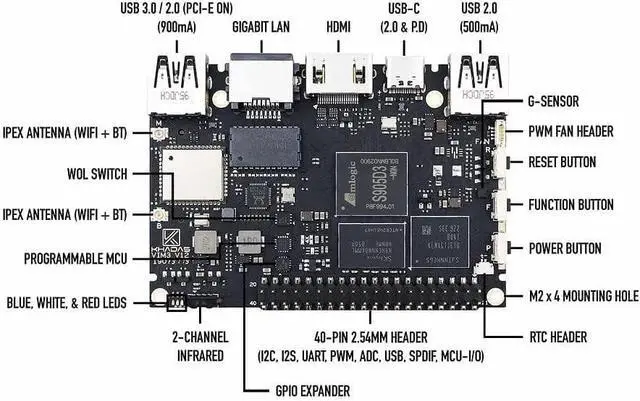

- Rich IO:40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc);8-ch I2S for Microphone Array application (over M.2 Connector);MIPI-DSI;MIPI-CSI;Designed with GPIO Extender Chip
- What's in the Box: VIM3L; Wi-Fi Antenna x2
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Key Features: High-performanceAmlogic S905D3 SoC 1.9GH z Quad core ARM Cortex-A55 ARM G31 MP2 GPU up to 800MHz Built-in 1.2 TOPS Performance NPU AP6398S 2T2R Wi-Fi 5 Module Gigabit Ethernet with WoL support Up to 4K@60fps decoding and up to 1080p@60fps encoding M. 2 Slot for SSD & LTE module
