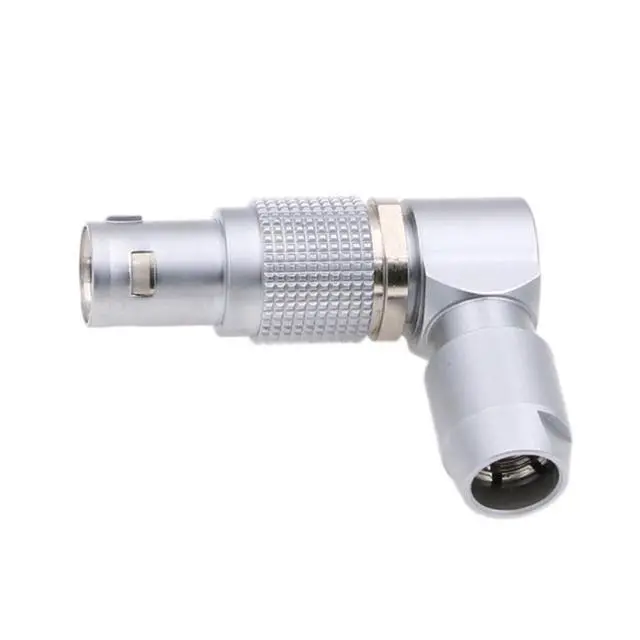

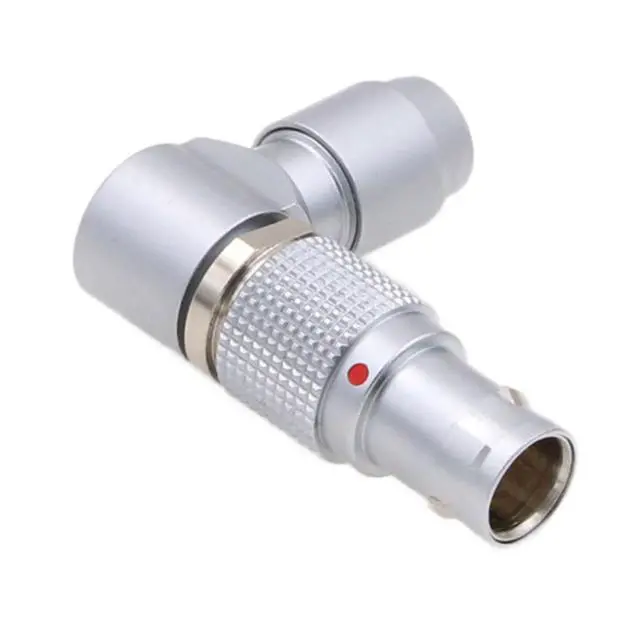

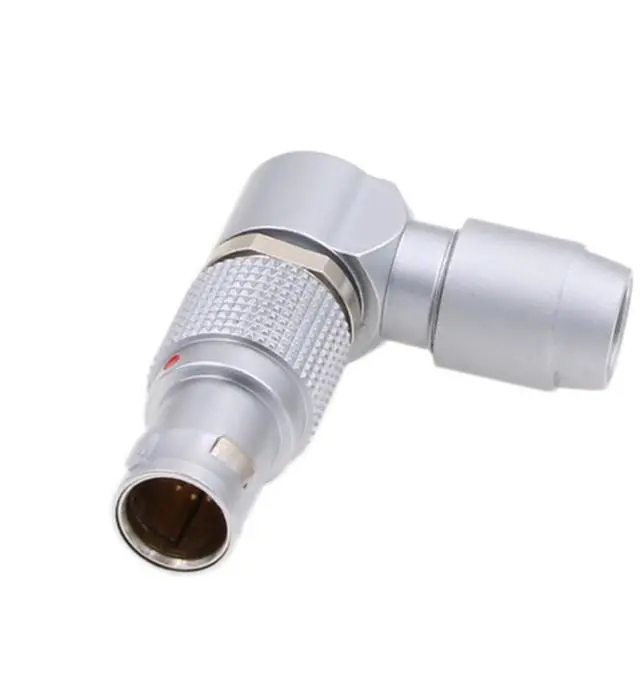

HangTon Silver 1B FSG 3-Pin Right-Angle Connector, Rotated Adjustable Elbow Male, M12 OD, Circular Push Pull Cable Plug Compatible for Lemo, 20AWG 12A

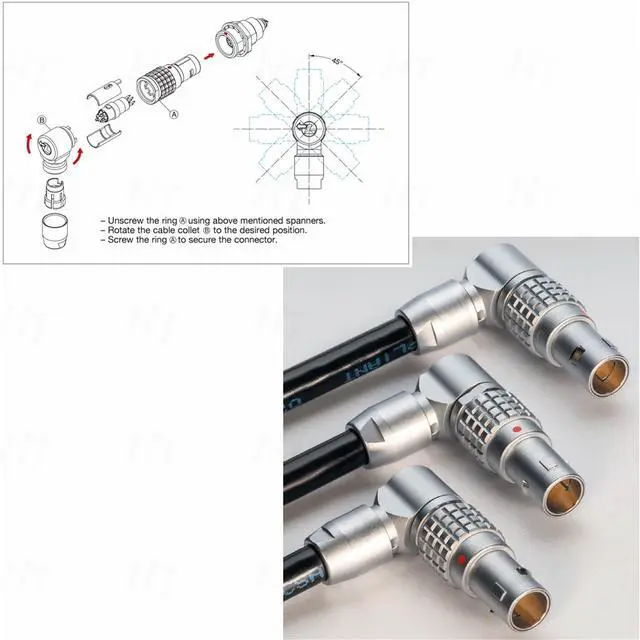

- Silver 90-degree right angle 3 pin male connector, compatible for Lemo 1B.FSG.303, right angle and adjustable rotated. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available
- Rated current: 12 Amps. AWG wire size: 20, cable diameter: 2.5mm-7.9mm. Contact diameter: 1.3 mm, max. stranded conductor section: AWG 20
- It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV
- Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating
- Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Silver 90-degree right angle 3 pin male connector, compatible for Lemo 1B. FSG. 303, right angle and adjustable rotated. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available ^^
Rated current: 12 Amps.
AWG wire size: 20, cable
diameter: 2.5 mm- 7.9 mm.
Contact diameter: 1.3 mm, max.
stranded conductor section: AWG 20 ^^ It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV ^^ Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating ^^ Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
Rated current: 12 Amps.
AWG wire size: 20, cable
diameter: 2.5 mm- 7.9 mm.
Contact diameter: 1.3 mm, max.
stranded conductor section: AWG 20 ^^ It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV ^^ Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating ^^ Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
