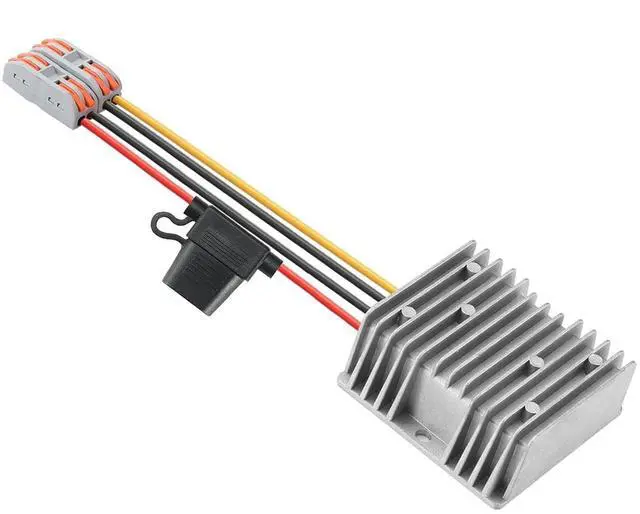

9-32V to 12V10A DC Down Converter, DC Voltage Regulator with Waterproof Fuse and Terminal Block (9-32V to 12V10A)
- Input voltage: 9-32V; Output voltage: DC 12V (fixed output).
- Output current: 10A; Output power:120W. (Caution: Do not exceed the maximum load specified by the converter to avoid damage).

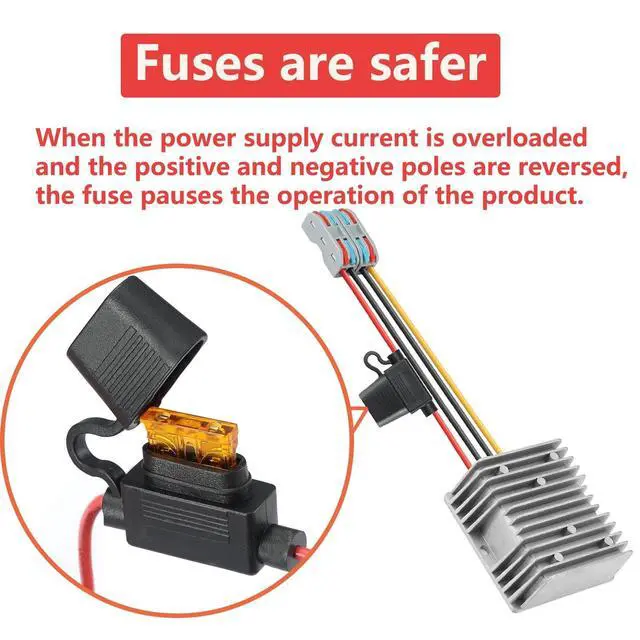

- The DC converter is equipped with short circuit, overload and over temperature protection fuses to ensure safe operation of the DC converter.

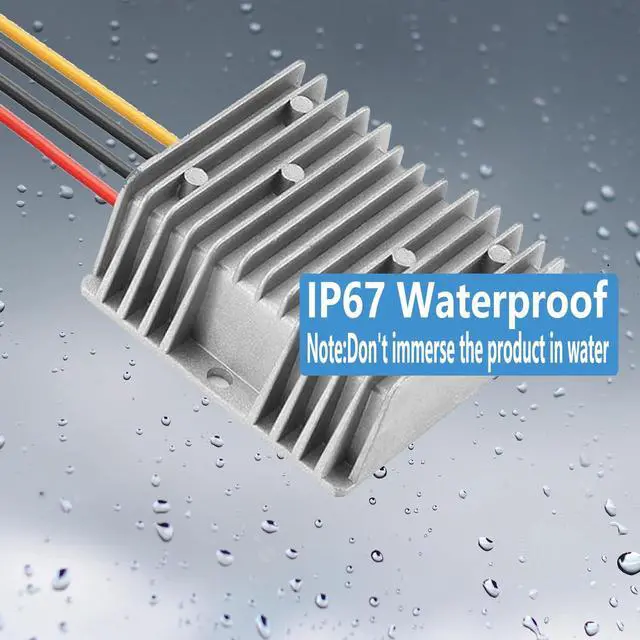

- The transformer uses non-insulated synchronous step-down technology and has IPX-7 waterproof performance, making it more durable.
- DC-DC Buck Converters are widely used in automotive trucks, surveillance systems, advertising screens, medical devices, LED light strips, speakers, DIY and more.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input voltage range: 9-32VTransmission
efficiency: >90%Output
voltage: 12VMaximum
output current: 10AMaximum
output power: 120WHousing
operating temperature:

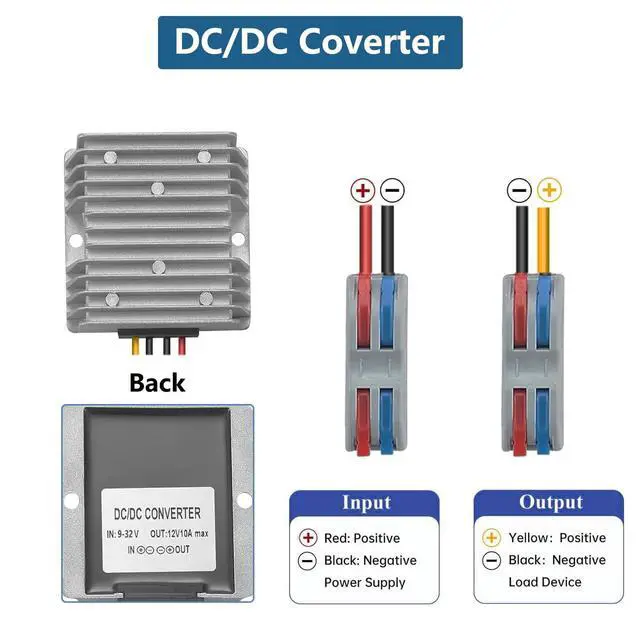

-40~85CInput: Red (+) Black (grounded)
Output: Yellow (+) Black (grounded)

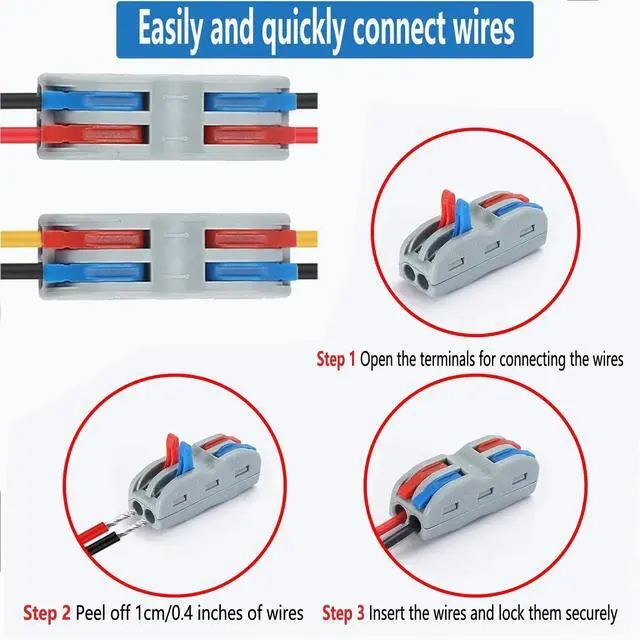

Easy to use: Remove the wire by about 10mm ( 0.4 inch) and insert it into the clamp. Please note that there is no input short circuit protection or reverse connection protection. Please wire it properly, otherwise it may burn out the power supply.
efficiency: >90%Output
voltage: 12VMaximum
output current: 10AMaximum
output power: 120WHousing
operating temperature:
-40~85CInput: Red (+) Black (grounded)
Output: Yellow (+) Black (grounded)
Easy to use: Remove the wire by about 10mm ( 0.4 inch) and insert it into the clamp. Please note that there is no input short circuit protection or reverse connection protection. Please wire it properly, otherwise it may burn out the power supply.
