YABOANG DC/DC Converter Buck 20-72V to 12V, Voltage Converter 24V/36V/48V/60V/72V to 12V10A 120W MAX Power Transformer Waterproof Step Down Module for Automotive, LED Lights, Trucks, Instruments

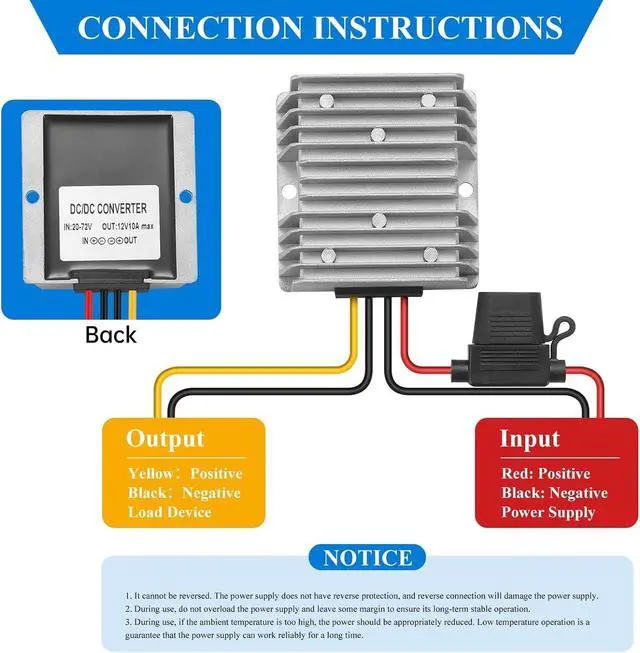

- 20-72V to 12V DC Voltage TransformerInput range:24V/36V/48V/60V/72V to 12V; output voltage : 12V(fixed output) output current : 10A output power : 120W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.
- Heat Dissipation PerformanceThe 20-72V to 12V voltage regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance.
- Intelligent ProtectionAssembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the 20-72V to 12V power transfomer voltage.
- Widely ApplicationThe 20-72V to 12V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.
- Please NoteThe load connected to the transformer converter output should not exceed t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
A. Test the environmental conditionsB. Unless otherwise specified, the tests in this specification shall be conductedunder the standard atmospheric conditions testedC.
temperature: 15~35. D.
Relative humidity: 45%~75%E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 K / V. F. The instrument accuracy of measuring current shall not be less than the 0.5 levelG. The accuracy of the instrument used for measuring the temperature shall not be less than 1Input range: 20-72VRated
input voltage: 24V/36V/48V/60V/72Vtransfer
efficiency: 95%incoming
line: 15-16CM(R+
B-)output voltage:
12Voutput: 10A
MAXmaximumoutput: 120W MAX
No-load adjustment rate: 2%load
regulation: 3%quiescent
dissipation: 30MADo not use it near a heat source (such as a fire or a heater) Do not connect the input line to 220V electricityDo not put the product into the fire or heat itDo not short-circuit the positive or negative poles of the product with wires or other metal objectsNon-professional personnel are prohibited to disassemble and repair by themselves
temperature: 15~35. D.
Relative humidity: 45%~75%E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 K / V. F. The instrument accuracy of measuring current shall not be less than the 0.5 levelG. The accuracy of the instrument used for measuring the temperature shall not be less than 1Input range: 20-72VRated
input voltage: 24V/36V/48V/60V/72Vtransfer
efficiency: 95%incoming
line: 15-16CM(R+
B-)output voltage:
12Voutput: 10A
MAXmaximumoutput: 120W MAX
No-load adjustment rate: 2%load
regulation: 3%quiescent
dissipation: 30MADo not use it near a heat source (such as a fire or a heater) Do not connect the input line to 220V electricityDo not put the product into the fire or heat itDo not short-circuit the positive or negative poles of the product with wires or other metal objectsNon-professional personnel are prohibited to disassemble and repair by themselves
