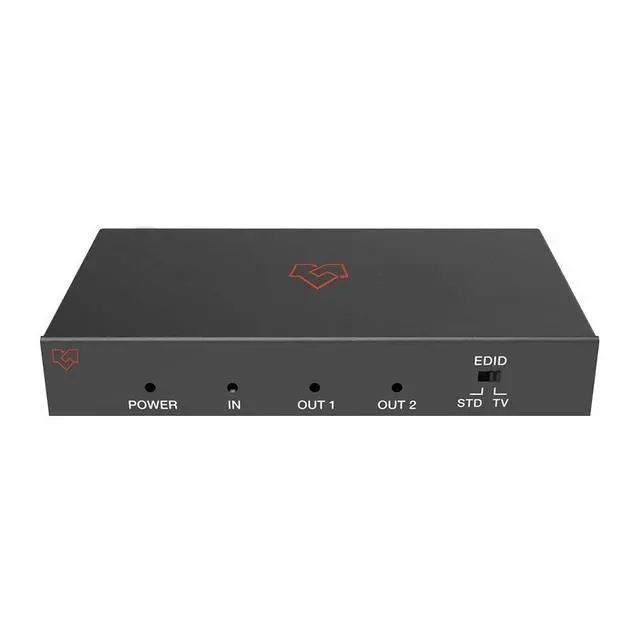

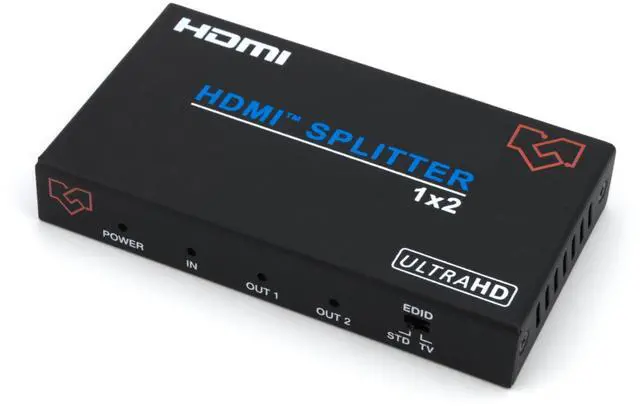

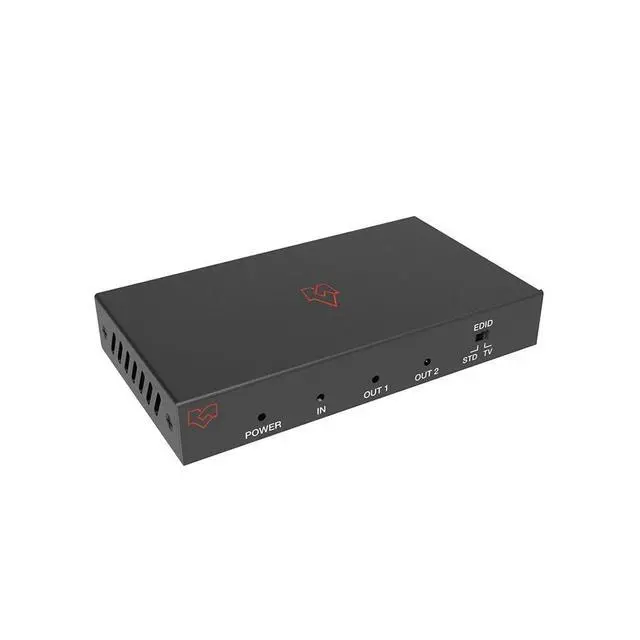

VigilLink 1x2 HDMI 2.0 Splitter Distribution Amplifier 18 G/VLSP-12H20
- 18Gbps HDMI 2.0b splitter: Up to 4K 60Hzwith 24bit RGB/YCBCR 4:4:4
- 6 year manufacturer warranty from VigilLink
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Built-in equalizer, retiming, and driver
- Smart EDID, STD (1080p) mode, and TV (copy OUT1) mode
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
VigilLink 1x2 HDMI 18Gbps Splitter is an advanced solution for splitting HDMI content to 2 HDMI outputs synchronously. It provides high-performance audio and video up to 4K2K@60Hz ( 4:4: 4) and can receive, retiming, and transmit up to 18Gbps of bandwidth with no data loss. Featured Highlights- HDMI 2.0 b, HDCP 2.2 compliant- Up to 4K2K@60Hz with 24bit
RGB/YCBCR 4:4: 4- VESA format up to QSXGA@60Hz- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio- Built-in equalizer, retiming, and driver- Smart EDID, STD (1080p) mode, and TV (copy OUT1) mode- Compact design for an easy and flexible installationSpecificationsTechnical-
Video Bandwidth: 600MHz/18Gbps-

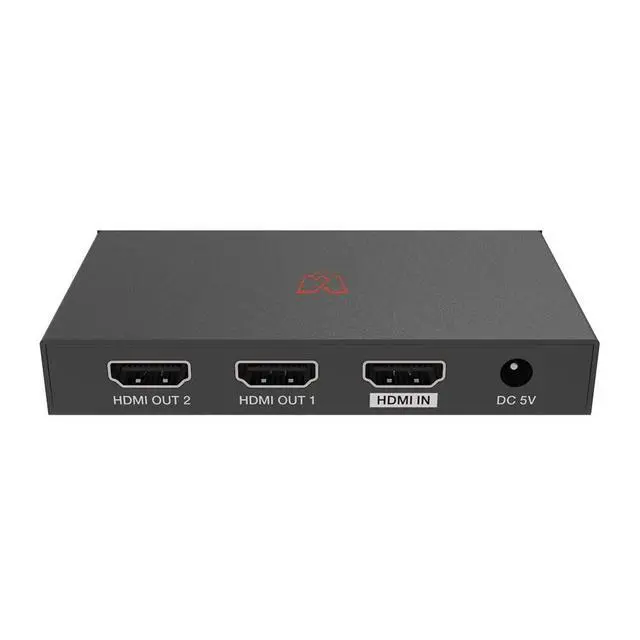

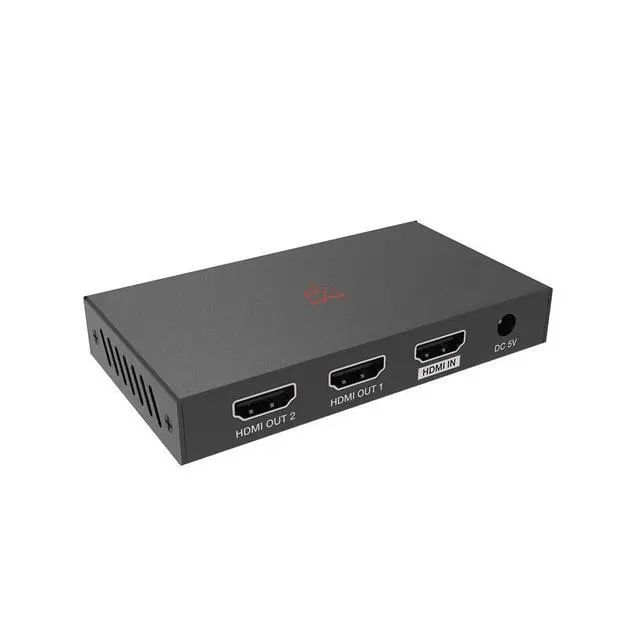

Input Ports: 1HDMI Type A (19-pin female)-
Output Ports: 2HDMI Type A (19-pin female)-
Video Resolution: 4K2K@24/25/30/60Hz-
ESD Protection: 8kV (Air-gap discharge) & 4kV (Contact discharge)
MechanicalChassis Material: MetalPower
Consumption:
2WWeight: 165gPower
Supply:
Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A, (US/EU standard, CE/FCC/UL
certified)Dimensions: 56 mm (W) 100 mm (D) 16mm (H)
Operating Temperature: 0C ~ 45C / 32F ~ 113FStorage
Temperature: -20C ~ 60C / -4F ~ 140FRelative
Humidity: 20 - 90% RH (No condensation)
RGB/YCBCR 4:4: 4- VESA format up to QSXGA@60Hz- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio- Built-in equalizer, retiming, and driver- Smart EDID, STD (1080p) mode, and TV (copy OUT1) mode- Compact design for an easy and flexible installationSpecificationsTechnical-
Video Bandwidth: 600MHz/18Gbps-
Input Ports: 1HDMI Type A (19-pin female)-
Output Ports: 2HDMI Type A (19-pin female)-
Video Resolution: 4K2K@24/25/30/60Hz-
ESD Protection: 8kV (Air-gap discharge) & 4kV (Contact discharge)
MechanicalChassis Material: MetalPower
Consumption:
2WWeight: 165gPower
Supply:
Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A, (US/EU standard, CE/FCC/UL
certified)Dimensions: 56 mm (W) 100 mm (D) 16mm (H)
Operating Temperature: 0C ~ 45C / 32F ~ 113FStorage
Temperature: -20C ~ 60C / -4F ~ 140FRelative
Humidity: 20 - 90% RH (No condensation)
