Douk Audio Q100 Balanced DAC: AK4499EX & AK4191 Hi-Res DAC (PCM 768kHz/32-bit & DSD512) - Bluetooth 5.1 LDAC - XLR/RCA Outputs for Audiophiles & Studio Use
- Flagship DAC Performance for Audiophiles: Powered by premium AK4499EX & AK4191 DAC chips (with XMOS XU316 & QCC5125 processors), the Q100 decodes music with stunning clarity and detail. Supports PCM up to 768kHz/32-bit and native DSD512 for true hi-res audio.

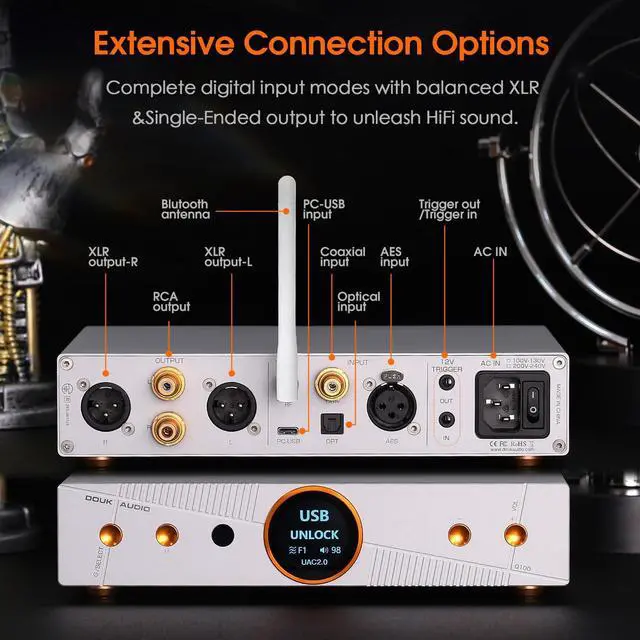

- All-In-One Digital Connectivity: The Q100 offers USB-C, AES/EBU, optical, coaxial, and Bluetooth 5.1 inputs (with LDAC & aptX-HD support). Effortlessly connect everything from PCs, streamers, and CD players to TVs and phones with high-fidelity clarity.

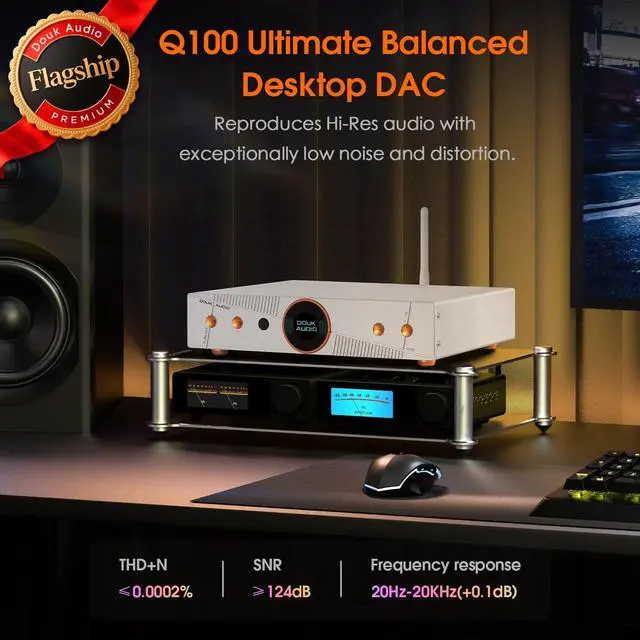

- Studio-Grade Balanced Outputs: Enjoy pure, dynamic sound via both balanced XLR and single-ended RCA outputs (both active simultaneously for flexible use). With SNR 124 dB and THD+N as low as 0.0002%, the Q100 delivers ultra-transparent audio and pinpoint stereo imaging.

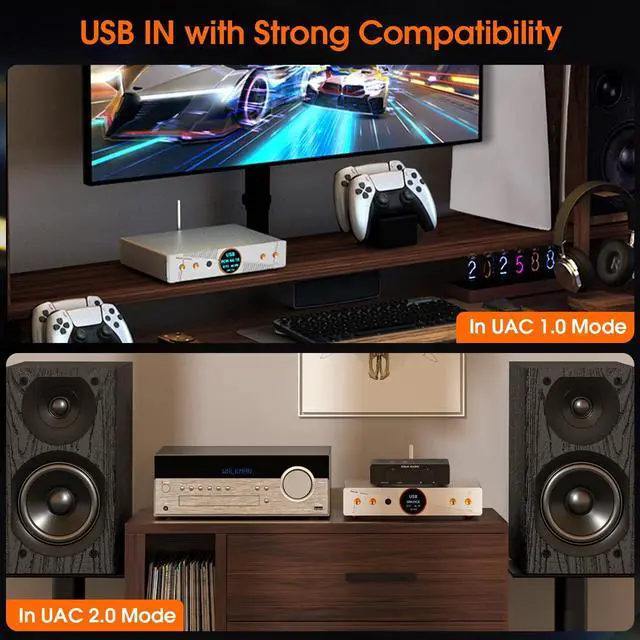

- Universal USB Mode Switch: Flip between UAC1.0 (for plug-and-play with PS5, Switch, and legacy systems) and UAC2.0 (for up to 768kHz/DSD512 high-res audio on modern Windows, Mac, Linux). Enjoy seamless USB a
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FAQs:
Q: Which systems require driver
installation?
A: UAC
1.0: Driver-free on all systems.
UAC 2.0: Windows 7/8 requires drivers. Windows 10/11 are driver-free for PCM, but need drivers for DSD. MacOS and Linux are driver-free.
Q: Q100 can't work with my phone via USB, is a driver required?
A: No, it's drive-free. Please use the supplied OTG-compatible USB cable and ensure the phone support OTG. On some phones, you may need to enable OTG in settings. For iPhones/iPads with a Lightning port, a high-current camera kit is required.
Q: Do the XLR and RCA outputs work simultaneously, and is the volume synchronized?
A: Yes, both outputs work at the same time, with volume control applied to both simultaneously.
Q: What op-amps are used, and can they be replaced?
A: The Q100 uses five OPA1612 surface-mount op-amps, which are soldered directly onto the board and cannot be replaced or swapped out.
Q: Which functions can only be controlled via the remote control?
A: Only clearing Bluetooth pairing and UAC 1.0 / 2.0 switching must require the remote; all other functions can be operated from the panel.
Q: Does switching UAC mode require restarting the Q100?
A: Usually no restart is required. For a small number of computers the USB cable may need to be reconnected.
ParametersBrand: Douk
AudioModel: Q100Audio
input: Bluetooth 5.1 / USB-C / Coaxial / Optical / AES
Audio output: XLR / RCA
Chipset: AK4499 + AK4191 + QCC5125 + XU316 +
OPA1612Bluetooth supported codecs: SBC / AAC / aptX / aptX-HD / LDAC
Max sampling rate supported: USB
input: PCM 768kHz/32bit, DSD512 (native), DSD256 (DoP)
Coaxial/Optical input: PCM 192kHz/24bit, DSD64 (DoP)
AES input: 192kHz/24bitFrequency
response: 20Hz-20KHz
( 0.1 dB)SNR:
124dBTHD+N: 0.0002
%@1kHzMax output level:
RCA: 2.3V;
XLR: 4.5VUSB
compatible operating systems: Windows 7/8/10/11, macOS, Linux, Android, iOSFilter
modes:
PCM: 6 modes, DSD: 2
modesBrightness of display screen: 10-100%Screen
display time: 15s / 30s / solid onWorking voltage: Adaptive
AC 100-130VDimensions (W*D*H): 228*170*46mm / 8.98 * 6.69 * 1.81 inPackage dimensions (W*D*H): 400*230*80mm / 15.74 * 9.05 * 3.15 inNet weight: 1.73 kg / 3.81 lbPackage weight: 3.0 kg / 6.61 lbPacking list* Q100 DAC 1* Bluetooth Antenna 1* Remote Control 1* Power Cord 1* USB-A/C to USB-C Cable 1* Optical Cable 1* User Manual 1
Q: Which systems require driver
installation?
A: UAC
1.0: Driver-free on all systems.
UAC 2.0: Windows 7/8 requires drivers. Windows 10/11 are driver-free for PCM, but need drivers for DSD. MacOS and Linux are driver-free.
Q: Q100 can't work with my phone via USB, is a driver required?
A: No, it's drive-free. Please use the supplied OTG-compatible USB cable and ensure the phone support OTG. On some phones, you may need to enable OTG in settings. For iPhones/iPads with a Lightning port, a high-current camera kit is required.
Q: Do the XLR and RCA outputs work simultaneously, and is the volume synchronized?
A: Yes, both outputs work at the same time, with volume control applied to both simultaneously.
Q: What op-amps are used, and can they be replaced?
A: The Q100 uses five OPA1612 surface-mount op-amps, which are soldered directly onto the board and cannot be replaced or swapped out.
Q: Which functions can only be controlled via the remote control?
A: Only clearing Bluetooth pairing and UAC 1.0 / 2.0 switching must require the remote; all other functions can be operated from the panel.
Q: Does switching UAC mode require restarting the Q100?
A: Usually no restart is required. For a small number of computers the USB cable may need to be reconnected.
ParametersBrand: Douk
AudioModel: Q100Audio
input: Bluetooth 5.1 / USB-C / Coaxial / Optical / AES
Audio output: XLR / RCA
Chipset: AK4499 + AK4191 + QCC5125 + XU316 +
OPA1612Bluetooth supported codecs: SBC / AAC / aptX / aptX-HD / LDAC
Max sampling rate supported: USB
input: PCM 768kHz/32bit, DSD512 (native), DSD256 (DoP)
Coaxial/Optical input: PCM 192kHz/24bit, DSD64 (DoP)
AES input: 192kHz/24bitFrequency
response: 20Hz-20KHz
( 0.1 dB)SNR:
124dBTHD+N: 0.0002
%@1kHzMax output level:
RCA: 2.3V;
XLR: 4.5VUSB
compatible operating systems: Windows 7/8/10/11, macOS, Linux, Android, iOSFilter
modes:
PCM: 6 modes, DSD: 2
modesBrightness of display screen: 10-100%Screen
display time: 15s / 30s / solid onWorking voltage: Adaptive
AC 100-130VDimensions (W*D*H): 228*170*46mm / 8.98 * 6.69 * 1.81 inPackage dimensions (W*D*H): 400*230*80mm / 15.74 * 9.05 * 3.15 inNet weight: 1.73 kg / 3.81 lbPackage weight: 3.0 kg / 6.61 lbPacking list* Q100 DAC 1* Bluetooth Antenna 1* Remote Control 1* Power Cord 1* USB-A/C to USB-C Cable 1* Optical Cable 1* User Manual 1
