ESP32-C6 1.69inch Touch LCD Development Board, ESP32 with Display 240280 Pixels, Supports Wi-Fi 6/BLE 5, 160MHz RISC-V Processor, SPI Interface, AI Speech, Support AI Voice Interaction, with Speaker

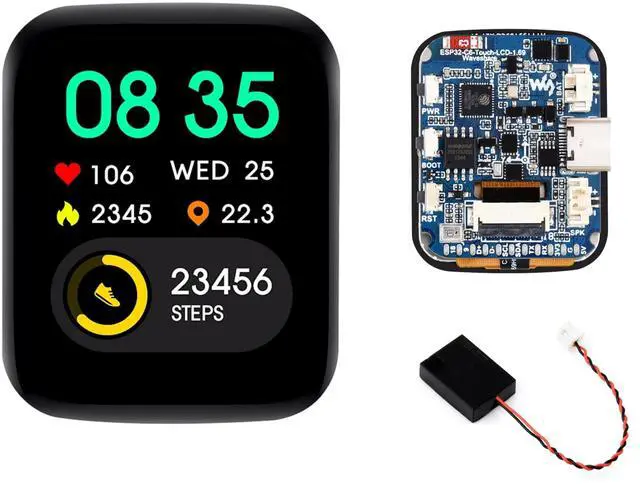

- ESP32-C6-Touch-LCD-1.69 is a tiny size, low-cost, high-performance MCU board. Onboard 1.69inch 262K LCD display, Lithium batt-ery recharge manager, audio codec chip, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, which makes it easy for you to develop and integrate into products quickly.

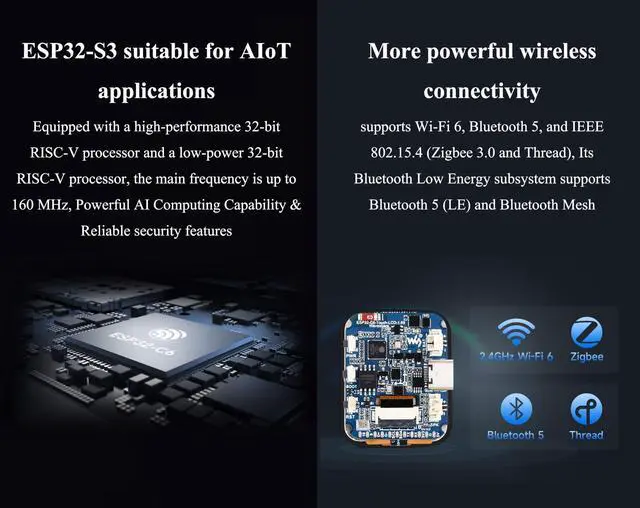

- ESP32-S3 suitable for AIoT applications: Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features.
- Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 16MB Flash memory. Type-C connector for easier use.

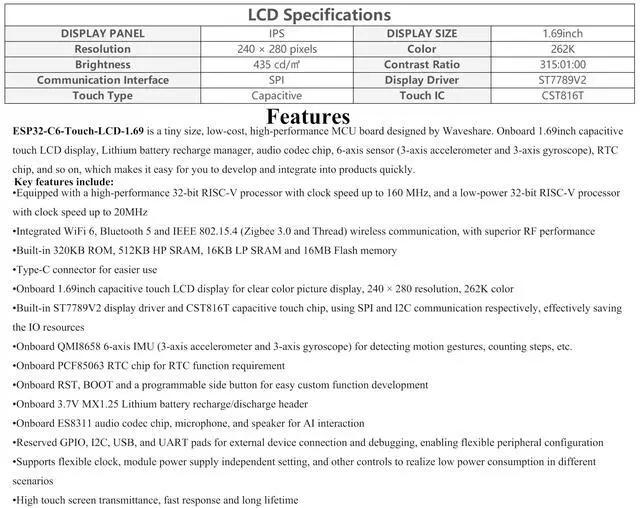

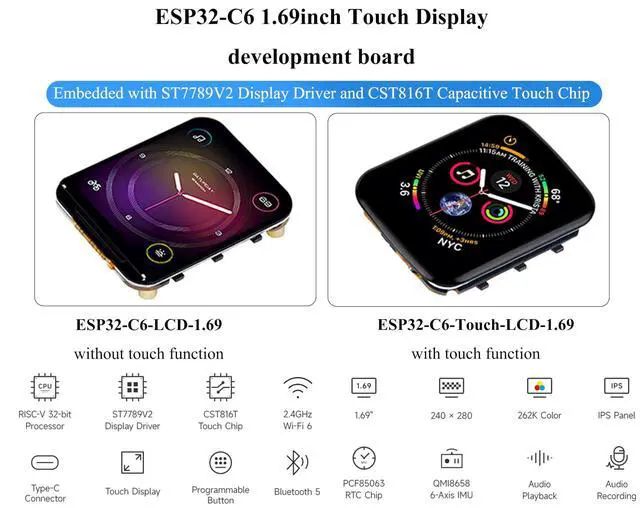

- Onboard 1.69inch Touch LCD display for clear color picture display, 240 280 resolution, 262K color. Built-in ST7789V2 driver chip, using SPI communication, effectively saving the IO resources.
- Su
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-C6-Touch-LCD- 1.69 is a tiny size, low-cost, high-performance MCU board. Onboard 1.69 inch 262K LCD display, Lithium batt-ery recharge manager, audio codec chip, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, which makes it easy for you to develop and integrate into products quickly. ^^ ESP32-S3 suitable for
AIoT applications: Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features. ^^ Integrated WiFi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 16MB Flash memory. Type-C connector for easier use. ^^ Onboard 1.69 inch Touch LCD display for clear color picture display, 240 280 resolution, 262K color. Built-in ST7789V2 driver chip, using SPI communication, effectively saving the IO resources. ^^

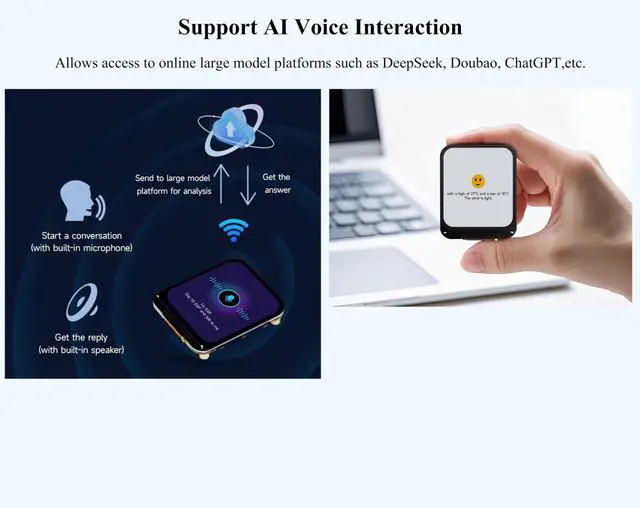

Support AI voice interaction: Allows access to online large model platforms such as DeepSeek, Doubao, ChatGPT, etc. Onboard ES8311 audio codec chip, microphone, and speaker for AI interaction. ^^ Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 RTC chip for RTC function requirement. Onboard RST, BOOT and a programmable side button for easy custom function development. ^^ Onboard 3.7V MX 1.25 Lithium batt-ery recharge/discharge header. Reserved GPIO, I2C, USB, and UART pads for external device connection and debugging, enabling flexible peripheral configuration. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/dubgl
AIoT applications: Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features. ^^ Integrated WiFi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 16MB Flash memory. Type-C connector for easier use. ^^ Onboard 1.69 inch Touch LCD display for clear color picture display, 240 280 resolution, 262K color. Built-in ST7789V2 driver chip, using SPI communication, effectively saving the IO resources. ^^
Support AI voice interaction: Allows access to online large model platforms such as DeepSeek, Doubao, ChatGPT, etc. Onboard ES8311 audio codec chip, microphone, and speaker for AI interaction. ^^ Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 RTC chip for RTC function requirement. Onboard RST, BOOT and a programmable side button for easy custom function development. ^^ Onboard 3.7V MX 1.25 Lithium batt-ery recharge/discharge header. Reserved GPIO, I2C, USB, and UART pads for external device connection and debugging, enabling flexible peripheral configuration. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/dubgl
