HDMI Matrix 4 in 2 Out 4K 60Hz 4:4:4 ARC HDR D-olby Vision Atmos SPDIF 5.1CH Breakout 3.5mm Stereo HDCP2.2- PC Console 16 EDID HDMI Scaler 4K 1080P Sync, HDCP2.2 HDMI2.0 Matrix 4x2 IR Remote

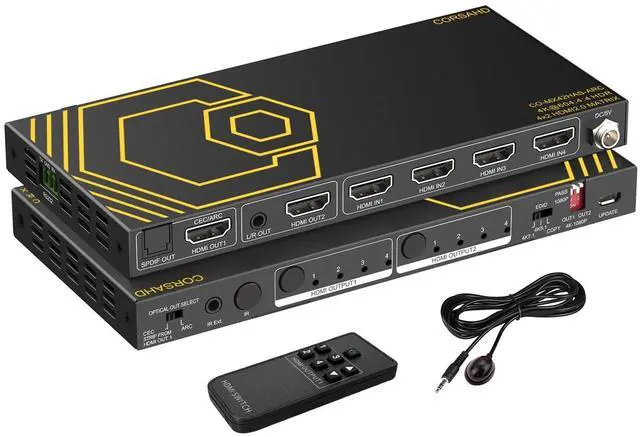

4x2 HDMI Matrix 4K 60Hz SPDIF TOSLINK---4K HDMI Matrix 4 in 2 out is designed to switch between four HDMI sources to two displays. The two output signals can be different or the same. converts it to Optical S/PDIF or high-quality stereo 3.5 mm audio output. Comes with EDID management, Down scaler function, IR remote, panel control; IR Extension cable; RS232. ^^ UHD Lossless Audio Video Formats -- Video Format - 4K@60Hz, 1080p@120Hz/60Hz 3D, 3840x2160@60Hz, 1440p@60Hz, HDR, D-olby Version, HDCP 2.2, HDCP 2.3 bypass, IMAX DIGITAL(2K/4K), 4:4: 4 8bit - Audio Format - Supports ARC, Dolby Atmos, Digital 7.1CH, DTS: X, Dolby True HD, DTS-HD Master Audio. Soundbar supported.

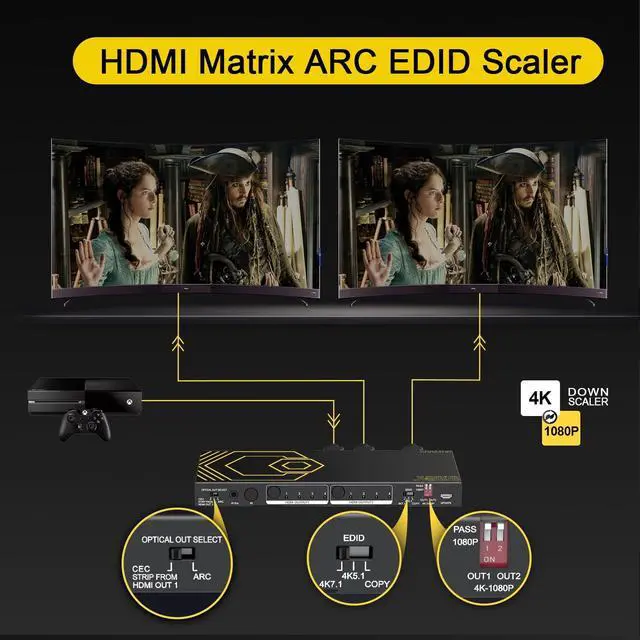

^^ Easy Usage: Plug and play. Power on with 5V/2A. Supports 4K&1080P TV work in syncSimply connect HDMI source with Input port & HDMI receive device with Output port through HDMI 2.0 cable less than 3m, the led light will indicate which port is working. Easily switch between 4 HDMI sources by pressing the panel button. HDMI OUTPUT1 support SPDIF CEC -ARC ^^ HDMI Down-Scaler USAGEHDMI matrix switcher two outputs down-scale 4K/ HDR 10 to 1080p60Hz only. Set down-scale OUT 1 2 to 1080p separately>>NOT down-scale 4K

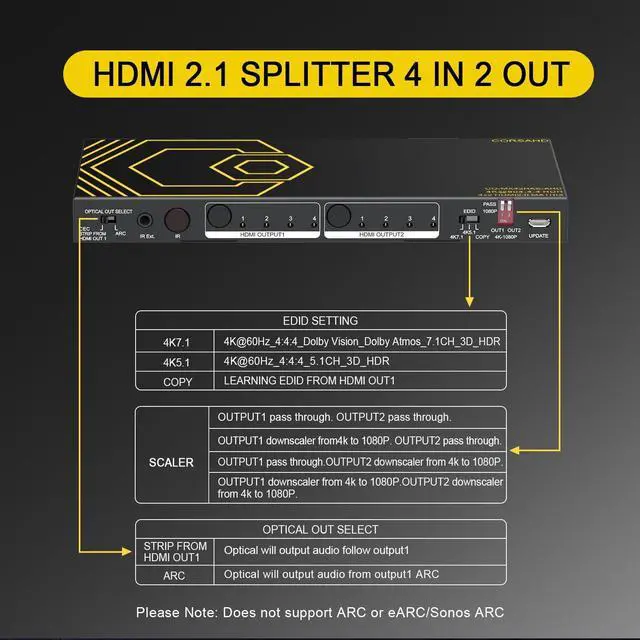

HDR D-olby Vision (4K60Hz 4:2: 2), VRR, otherwise screen wash out >> Pls read EDID DIP Switch picture, HDMI OUTPUT1 support CEC ARC (OPTICAL OUT SELECT) MUST SET TO CEC/STRIP FROM HDMI OUT1)Optical out support ARC (OPTICAL OUT SELECT MUST SET TOARC) ^^ Please NOTE -- Does NOT support e-ARC/Sonos ARC, VRR, 4K@120Hz, Upscale. If you have any questions or concerns about our products, please contact us directly through the order number.. HDMI Matrix does NOT extend screen, only duplicate/copy/mirror. EDID pass through only, does not create.
Does NOT down-scale to 4:2: 2.
