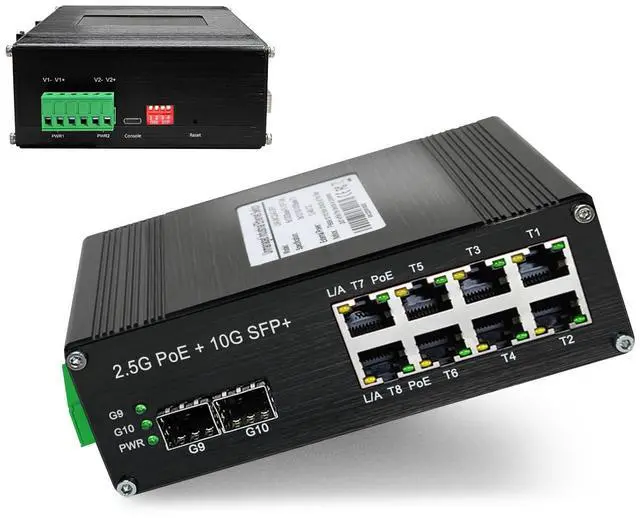

Managed 8-Port 2.5G Switch with 2-Port 10G SFP+, Industrial IEEE 802.3af/at 30W PoE Ethernet Switch, 48~57VDC Power Input, Plug & Play, Support QoS, Vlan, IGMP
- 10G&2.5G High-speed transmissionThe network switch equipped with 8 10/100/1000M/2.5Gbps RJ45 ports and 2 10G SFP Ports, providing higher-speed connectivity for your devices and allowing you to easily upgrade your network to support the latest 2.5G Ethernet standard.
- Smart Web ManagementThe smart managed switch is equipped with Software Features, including PoE management, device/port status query and various configurations: such as VLAN, QoS, Multicast, MAC, Static Aggregation, etc., through the management interface of web login.

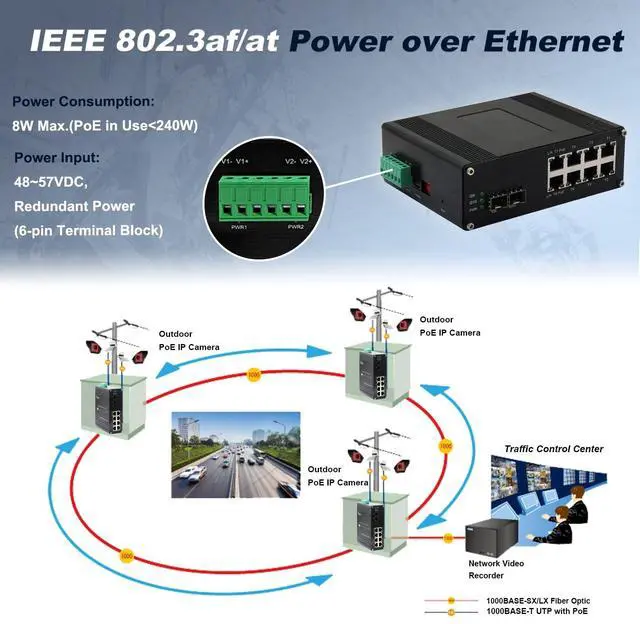

- IEEE802.3af/at PoE compliantThe industrial PoE switch provides 8-port IEEE802.3af/at PoE+(30W) function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable.
- DIP Switch & USB-C ConnectivityThe ethernet Switch with DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network, which also support connecting USB-C port for easy management.
- Reliable design & Din-rail installationWith its reliable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: It is the managed 8-port 10/100/1000M/ 2.5G Base-T 802.3 at PoE + 2-port 10G Base-X SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000M/ 2.5G Base-T (X), Full/Half duplex mode, and auto MDI/MDI-X connection; 10G Base-X SFP+ port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features: 1. Support 8x10/100/1000M/ 2.5G Base-T + 2x10G Base-X SFP+2. 10/100/1000M/ 2.5G bps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX3. IEEE 802.3 af/at compliant4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all6. IEEE 802.3 az Energy Efficient Ethernet (EEE) 7. 48-57VDC Redundant Power Input8. Industry standard design, dust-proof and close design IP40 Aluminum Case9. Supports DIN-Rail installation10. Environmentally hardened -40C to 80C (-40F to 176F) operating temperatureSpecification: 1.

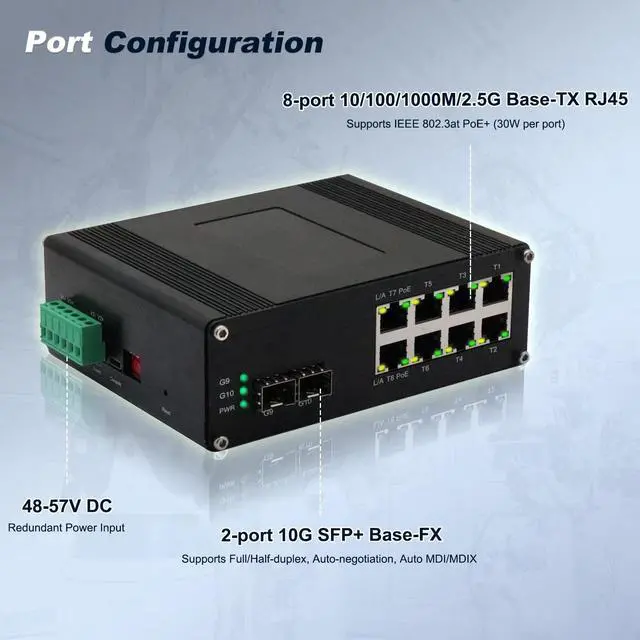

Connector: 8 x RJ45 (10/100/1000M/ 2.5G Base-TX)2.
Optical Port: 2 x 10G SFP+3.
Packet Buffer: 12M bits4.
Packet Length: 9K bytes5.
MAC Address Table: 8K6.
Processing Type: Store-and-Forward7.
Backplane bandwidth: 110Gbps8.
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 9.
Input Power: 48~57VDC, 6-pin terminal block10.
PoE Standard: IEEE 802.3 af/at11.
PoE Budget: Up to 240-watt PoE budget12.
Power Consumption: 8W Max. (PoE in Use<240W)13.
Power PIN Assignment: 4/5(+), 7/8(-)14.
Certification: CE, FCC, RoHS15.
Mounting Options: DIN-Rail16.
Casing: Aluminum Case17.
Operating Temperature: -40C to 80C (-40F to 176F)18.
Storage Temperature: -40C to 85C (-40F to 185F)19.
Dimensions (WxDxH): 150 x 115 x 50 mm20.
Weight: 0.6
kgPackages: 1* Managed 8-port 2.5G PoE RJ45 + 2-port 10G SFP Ethernet Switch1* Terminal block1* User Manual
Features: 1. Support 8x10/100/1000M/ 2.5G Base-T + 2x10G Base-X SFP+2. 10/100/1000M/ 2.5G bps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX3. IEEE 802.3 af/at compliant4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all6. IEEE 802.3 az Energy Efficient Ethernet (EEE) 7. 48-57VDC Redundant Power Input8. Industry standard design, dust-proof and close design IP40 Aluminum Case9. Supports DIN-Rail installation10. Environmentally hardened -40C to 80C (-40F to 176F) operating temperatureSpecification: 1.
Connector: 8 x RJ45 (10/100/1000M/ 2.5G Base-TX)2.
Optical Port: 2 x 10G SFP+3.
Packet Buffer: 12M bits4.
Packet Length: 9K bytes5.
MAC Address Table: 8K6.
Processing Type: Store-and-Forward7.
Backplane bandwidth: 110Gbps8.
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 9.
Input Power: 48~57VDC, 6-pin terminal block10.
PoE Standard: IEEE 802.3 af/at11.
PoE Budget: Up to 240-watt PoE budget12.
Power Consumption: 8W Max. (PoE in Use<240W)13.
Power PIN Assignment: 4/5(+), 7/8(-)14.
Certification: CE, FCC, RoHS15.
Mounting Options: DIN-Rail16.
Casing: Aluminum Case17.
Operating Temperature: -40C to 80C (-40F to 176F)18.
Storage Temperature: -40C to 85C (-40F to 185F)19.
Dimensions (WxDxH): 150 x 115 x 50 mm20.
Weight: 0.6
kgPackages: 1* Managed 8-port 2.5G PoE RJ45 + 2-port 10G SFP Ethernet Switch1* Terminal block1* User Manual
