TWAYRDIO 144/430 MHz Dual Band Heavy Duty Fiberglass Vertical Base Antenna - 2Meter/70CM 68.9inches Base Antenna 4.5/7.2dBi with SO-239 Connector for Repeater Mobile Radio Transceiver
- Electrical specifications - Frequency Range: 144/430 MHz; Impedance: 50 ohm; Gain: 4.5/7.2 dBi; Polarization: Vertical; Lighting Protection: Direct Ground; VSWR <1.5; Maximum input power: 200 W
- Mechanical specifications - Antenna Height: 68.9 inches; Weight: 2.2 lbs; Connector: UHF Female (SO-239); Radome Material: Fiberglass; Sections: 2; Material of Hardware-supplied: Aluminum Alloy; Hold Pole Diameter: 1.182.4 inches

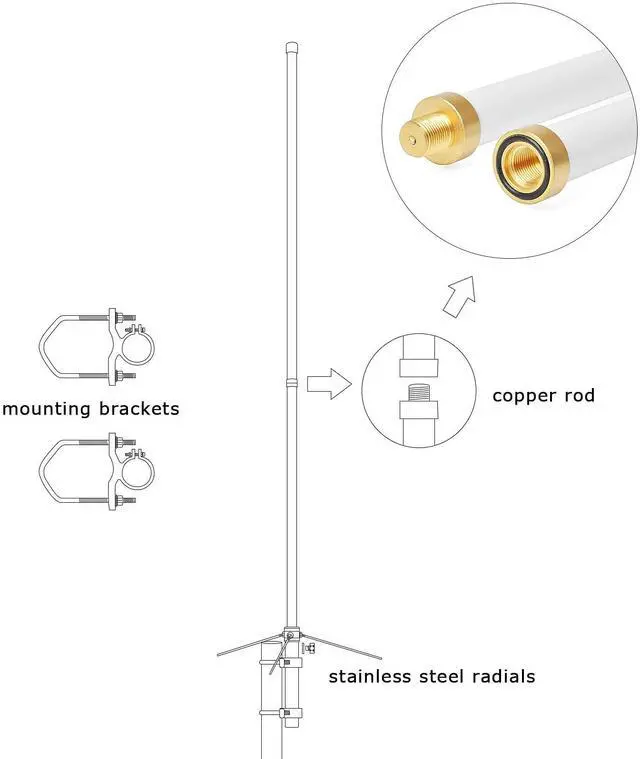

- The antenna is made up of 2 sections of white fiberglass, and is connected by copper rod to reduce power loss and make the antenna have better reception and transmission.
- The antenna is pre-tuned, no tuning needed. Heavy-duty fiberglass construction greatly improves the outdoor working life of the antenna.

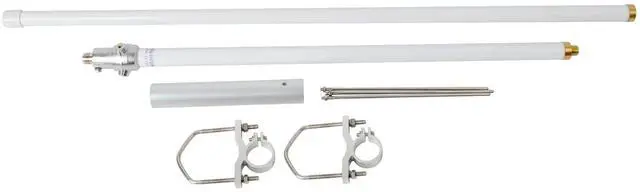

- Includes mounting brackets, hardware and stainless steel radials. Coax cable sold separately. If you have any questions about antenna installation, please feel free to contact the seller Trust communication.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Electrical specifications -
Frequency Range: 144/430 MHz;
Impedance: 50 ohm;
Gain: 4.5 / 7.2 dBi;
Polarization: Vertical;
Lighting Protection: Direct Ground; VSWR < 1.5;
Maximum input power: 200 W ^^ Mechanical specifications -
Antenna Height: 68.9 inches;
Weight: 2.2 lbs;

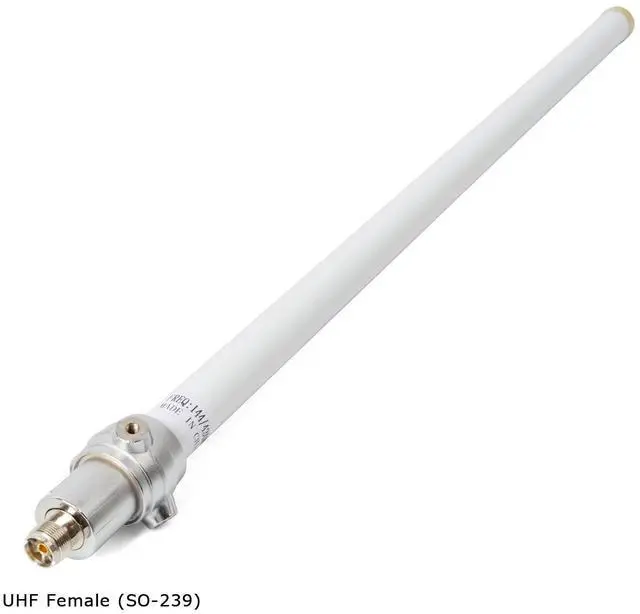

Connector: UHF Female (SO-239);
Radome Material: Fiberglass;
Sections: 2;
Material of Hardware-supplied: Aluminum Alloy; Hold
Pole Diameter: 1.182. 4 inches ^^ The antenna is made up of 2 sections of white fiberglass, and is connected by copper rod to reduce power loss and make the antenna have better reception and transmission. ^^ The antenna is pre-tuned, no tuning needed. Heavy-duty fiberglass construction greatly improves the outdoor working life of the antenna. ^^ Includes mounting brackets, hardware and stainless steel radials. Coax cable sold separately. If you have any questions about antenna installation, please feel free to contact the seller Trust communication.
Frequency Range: 144/430 MHz;
Impedance: 50 ohm;
Gain: 4.5 / 7.2 dBi;
Polarization: Vertical;
Lighting Protection: Direct Ground; VSWR < 1.5;
Maximum input power: 200 W ^^ Mechanical specifications -
Antenna Height: 68.9 inches;
Weight: 2.2 lbs;
Connector: UHF Female (SO-239);
Radome Material: Fiberglass;
Sections: 2;
Material of Hardware-supplied: Aluminum Alloy; Hold
Pole Diameter: 1.182. 4 inches ^^ The antenna is made up of 2 sections of white fiberglass, and is connected by copper rod to reduce power loss and make the antenna have better reception and transmission. ^^ The antenna is pre-tuned, no tuning needed. Heavy-duty fiberglass construction greatly improves the outdoor working life of the antenna. ^^ Includes mounting brackets, hardware and stainless steel radials. Coax cable sold separately. If you have any questions about antenna installation, please feel free to contact the seller Trust communication.
