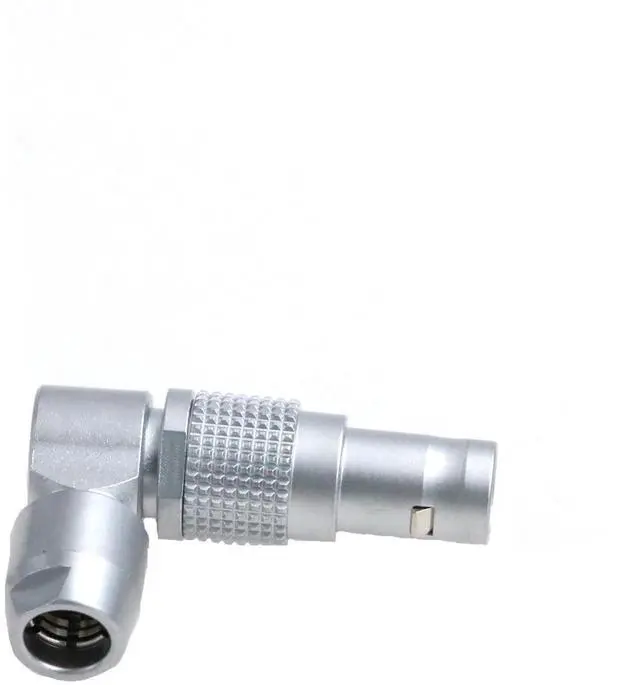

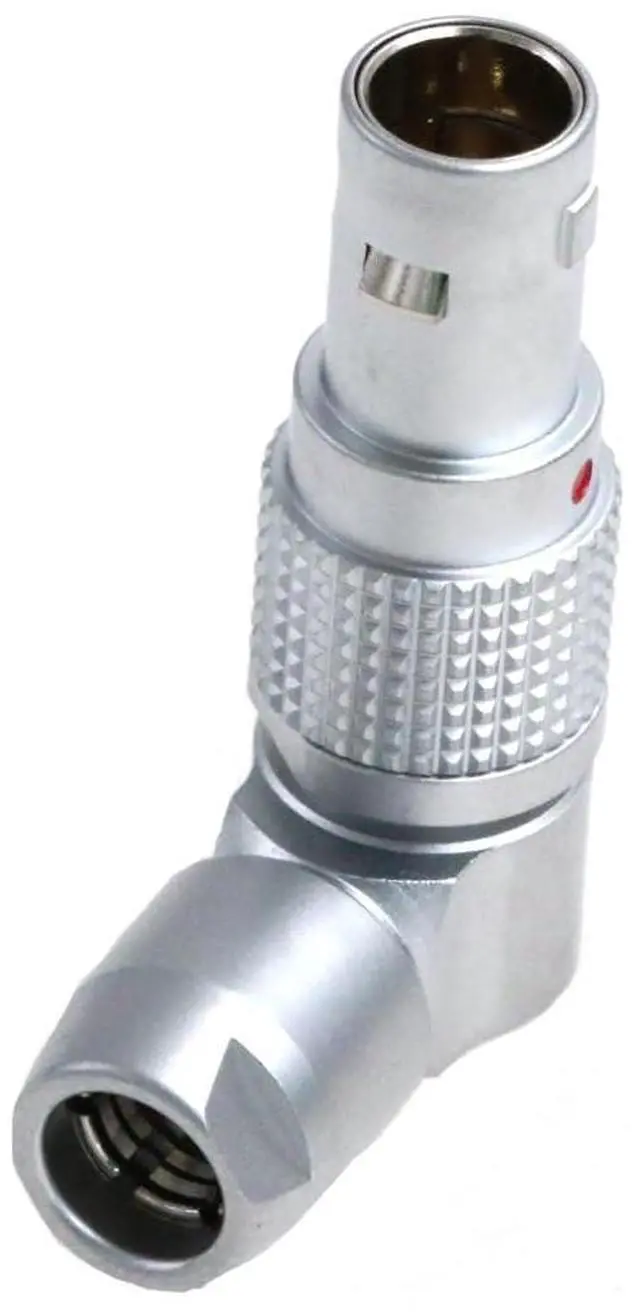

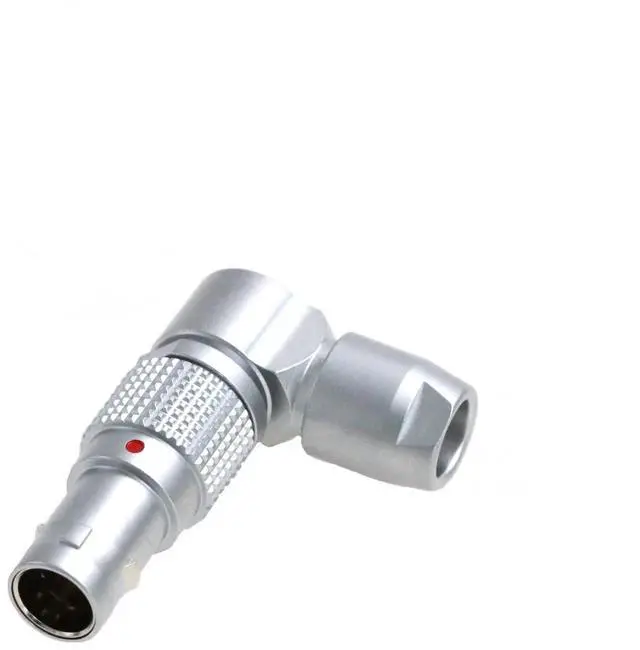

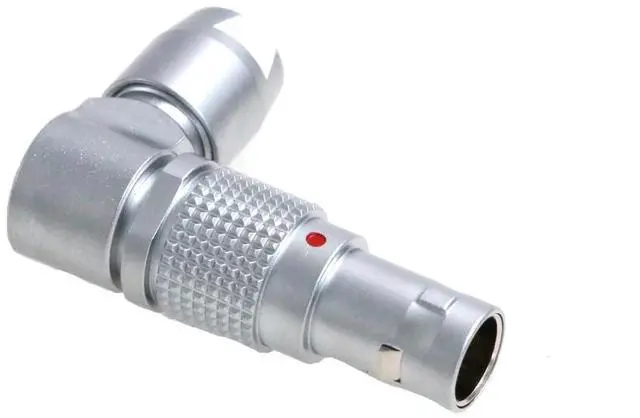

ZBLZGP FSG 0B 4 Pin Rotatable L-Shaped Plug Male Connector Adjustable Right Angle for ARRI Master Grips OCU-1 cmotion Zoom Alexa Camera to cforce Mini Plus Motor
- Fully Compatible, Widely Used, Compatible to Replace Well-known Foreign Brands, Stable Transmission, Easy to Use, Push-pull Self-locking, High Precision.
- The plating thickness of every product is strictly controlled to guarantee the high quality of the metal and the high precision quality. Save space and install more easily.
- Super long life. Tested by industry standards, the plug and socket can be plugged and unplugged for about 5000 times without affecting the mechanical properties of the plug and socket.
- Gold-plated copper plug. The inside of the plug is made of gold-plated material, which has strong conductivity, low resistance, corrosion resistance, longer service life and stable conduction.
- Making it an ideal choice for test and measurement, instrumentation, medical devices, research and audio/video applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

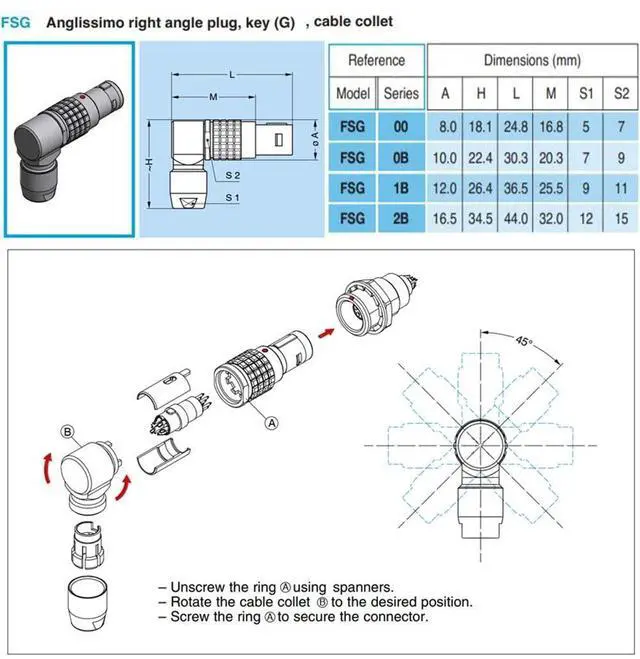

Right Angle plug: FSG. 0B (2 3 4 5 6 7 9 pin available).
2pin3pin: Rated
current (A): 10ADiameter
contact number: 0, 9x2/0, 9x3Rated voltage (ac. V. ): 500V (2 pins), 400V (3 pins) Resistance voltage (A
DC V) 1 minute: 1000V (2 pins), 875V (3 pins)
Contact resistance: 6mCable
specification: <
1.5 m /16AWG4pin5pin: Nominal
current (A): 7ADiameter
number of contact: 0, 7x4/0, 7x5Rated voltage (ac. V. ): 300VResistance voltage (A
DC V) 1 minute: 875V (4 pins), 750V (5 pins)
Contact resistance: 7.5
mWire specification: <
0.785 m /18AWG6pin7pin9pin: Rated
current (A): 5A (6, 7pin), 2A (9pin).
Diameter contact number: 0.5 x6/ 0.5 x7/ 0.5 x9. Rated voltage (ac. V. ): 750V(6, 7 pins), 600V (9 pins) Resistance voltage (A
DC V) 1 minute: 300V(6, 7 pins), 200V (9 pins)
Contact resistance: 5
MCable specification: < 0.785 m /18AWG
2pin3pin: Rated
current (A): 10ADiameter
contact number: 0, 9x2/0, 9x3Rated voltage (ac. V. ): 500V (2 pins), 400V (3 pins) Resistance voltage (A
DC V) 1 minute: 1000V (2 pins), 875V (3 pins)
Contact resistance: 6mCable
specification: <
1.5 m /16AWG4pin5pin: Nominal
current (A): 7ADiameter
number of contact: 0, 7x4/0, 7x5Rated voltage (ac. V. ): 300VResistance voltage (A
DC V) 1 minute: 875V (4 pins), 750V (5 pins)
Contact resistance: 7.5
mWire specification: <
0.785 m /18AWG6pin7pin9pin: Rated
current (A): 5A (6, 7pin), 2A (9pin).
Diameter contact number: 0.5 x6/ 0.5 x7/ 0.5 x9. Rated voltage (ac. V. ): 750V(6, 7 pins), 600V (9 pins) Resistance voltage (A
DC V) 1 minute: 300V(6, 7 pins), 200V (9 pins)
Contact resistance: 5
MCable specification: < 0.785 m /18AWG
