EDID Manager, EDID Feeader EDID Manager Emulator Support 4K CEC EDID Manager Audio/Video Control.

Specification: The EDID Manager easily resolves compatibility issues between source and display through 16 EDID modes. Make your audio and video equipment easier and more comfortable to use.

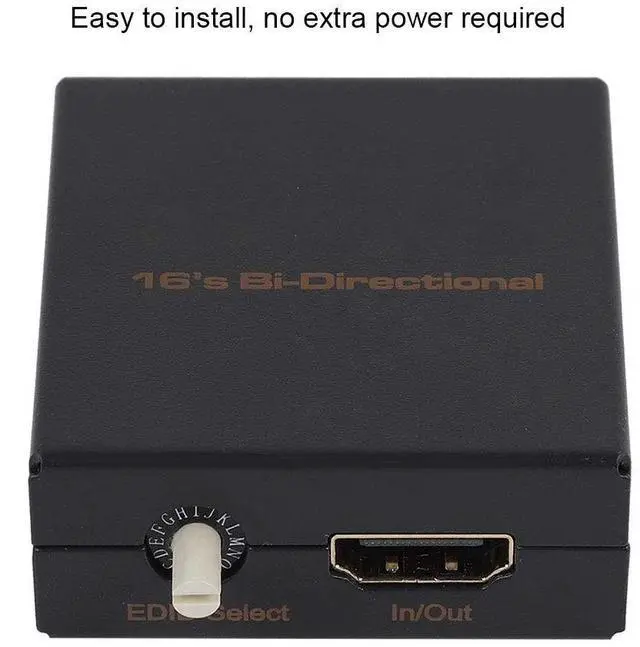

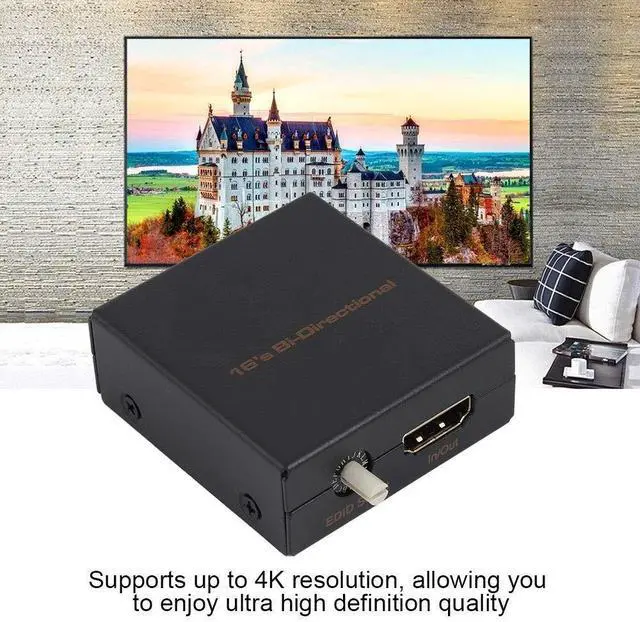

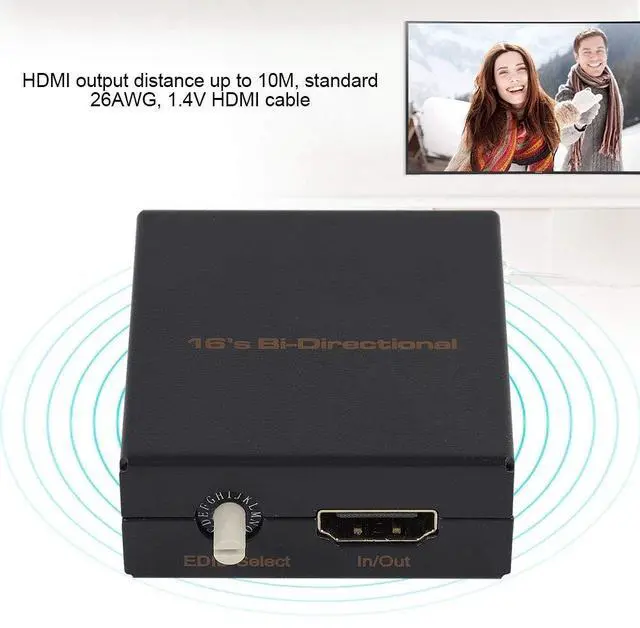

Features: 1. One channel input, one channel output. 2. 16 kinds of EDID mode, adjust the source EDID, compatible with the back-end display device. 3. Supports up to 4K resolution, allowing you to enjoy ultra high definition quality. 4. Support CEC. 5. output distance up to 10M, standard 26AWG, 1.4V cable. 6. Easy to install, no extra power required.
16 EDID modes: A. 4K 2CHB. 4K 5.1CHC. 4K HDD. 1080P 2CHE. 1080P 5.1CHF. 1080P HDG. 1080P 3D 2CHH. 1080P 3D 5.1CHI. 1080P 3D HDJ. 1080i 2CHK. 1080I 5.1CHL. 1080i HDM. 720P 2CHN. 720P 5.1CHO. 720P HDP. sink EDID

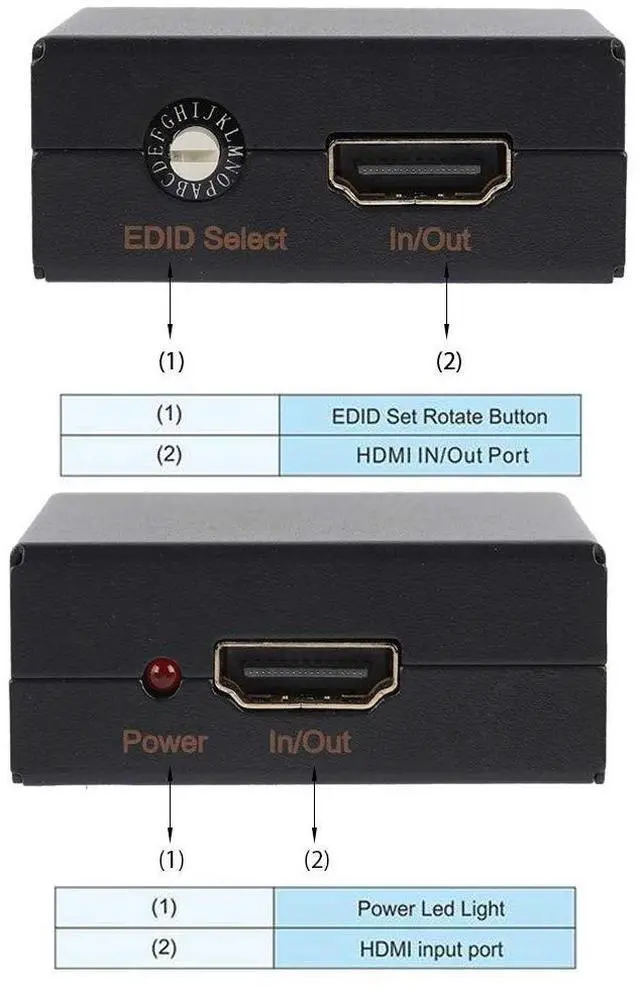

Connection and: 1. Connect a source (such as a - player, computer, etc. ) to the input of the EDID via the cable. 2. Connect to an input device (such as a TV, etc. ) via an cable. 3. Manually adjust the EDID Manager 16 modes according to the resolution supported by the backend display device.
Specification: Product
Name: EDID
ManagerModel: HDSW0006M1input
audio format: LPCM
2.0 /DTS/Dolby-AC3output cable length:? 10m, 1.4V 26AWG
Maximum operating current: 300mA/5V
DCOperating temperature range: 0
to +40COperating humidity range: 5 to 85% (no condensation)
Storage temperature range: -10 to +55
CStorage humidity range: 0 to 90% (no condensation)
Size: approx. 5.2 *
