aeco RCA Plug ARP-1512R, 4pcs/1set, Rhodium Plating

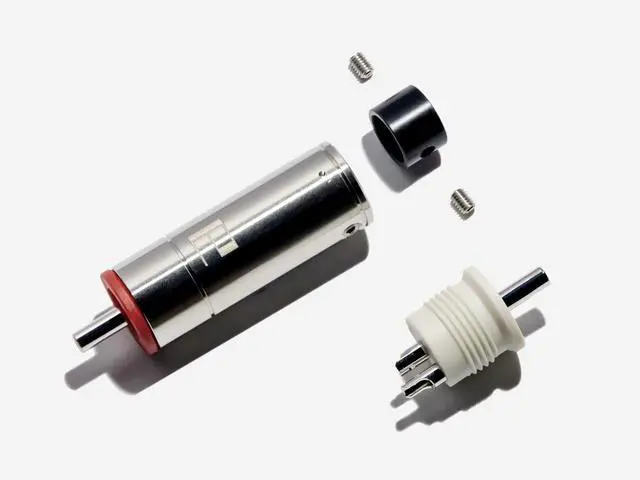

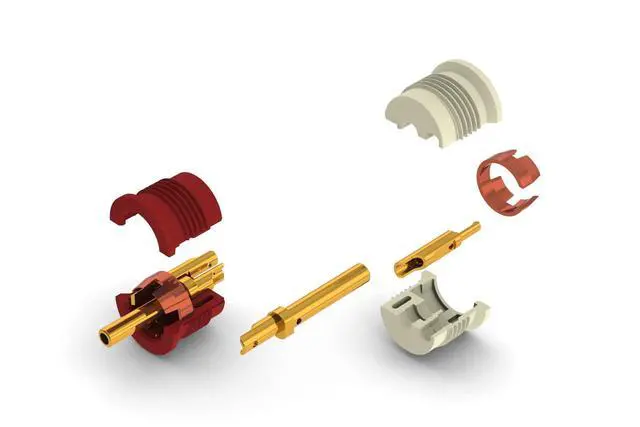

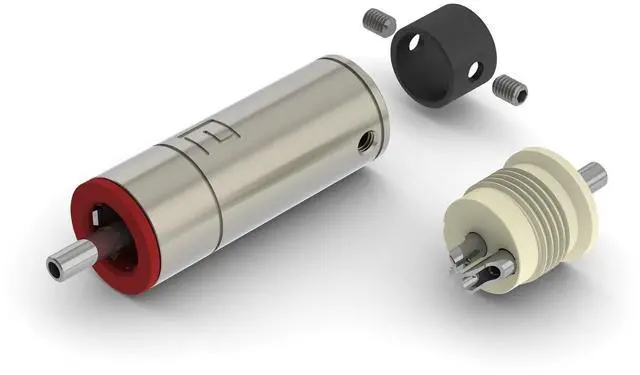

Mechanical structureThe C ring is placed in the groove near the interface end of the lower cover body. The contact pin and the ground pin pass through the C ring in sequence and put them into the lower cover body. Close the upper cover body and the lower cover body to complete the assembly of the body set. The body set and the shell are locked to each other with screws. The sleeve is fixed on the end of the shell with screws. Screws with the finished products. (4/3mm 4 screws per each.

)MaterialContact
Pin: Tellurium Copper(#C14500 / copper contains over 99%)Ground
Pin: Tellurium Copper(#C14500 / copper contains over 99%)C
Ring: Phosphor Bronze (C5441)
Body: Glass fiber reinforced nylon (Red /
White)Shell: Brass
alloy (#C3604)Sleeve: POM
Screw: IronFinishContact
Pin: Rhodium plating (no nickel base)
Ground Pin: Rhodium plating (no nickel base)
C Ring:
noneBody:
noneShell: none/
laser engravingSleeve:
noneScrew: noneDimensionBiggest OD 13.9 mmCable holeSleeve is contained in finished product 9.0 mm. Sleeve is not contained in finished product 11.5 mm. Total Length 45.7 mmPackingVacuum Bag(4Pcs/1Set)Recommend soldering temperatureTemperature Soldering Iron, please keep 380 C within 5~8 second. Temperature Soldering Iron, please keep 360 C within 9~13 second. Temperature Soldering Iron, please keep 340 C within 13~18 second. Temperature Soldering Iron, please keep 320 C within 19~25 second. Product production process comply with RoHS.
