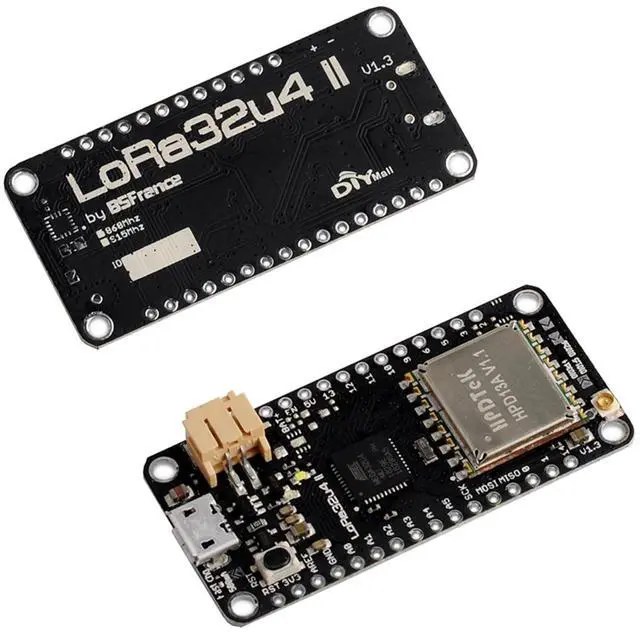

DIYmall LoRa32u4 II LoRa Development Board Low Consumption Atmega/328 SX1276 HPD13 Module with 915MHz LoRa Antenna for Arduino LoRa/WAN

LoRa32u4 II is a light and low consumption board based on the Atmega/32u4 and HPD13 915MHz LoRA module and an USB battery charging circuit. Ideal for creating long range wireless networks that can exceed 2.4 GHz 802.15. 4 and similar, it is more flexible than Bluetooth-LE, does not require high power unlike WiFi and offers long range ^^ The ATmega/32u4 is clocked at 8 MHz and 3.3 V. This chip has 32 K of flash, 2 K of RAM and built-in USB to Serial communication, debugging and programming capabilities without the need for an external F T D I chip, it can also act as an HID device (mouse, keyboard, USB MIDI device, etc) ^^ This board is also equipped with a LiPo and Liion charging circuit and a standard battery interface.

It is fully compatible with Arduino. A white user led is tied to pin 13. An orange LED is used for charging status ^^ HPD13 wireless module, using high-performance, highly integrated RF transceiver chip SX1276 design. Advanced LoRaTM spread spectrum communication technology to ensure that the module communication distance and anti-jamming capability greatly improved, and also achieved a very low current consumption ^^ In the LoRaTM mode, the HPD13 provides higher reception sensitivity performance, more robust anti-jamming capability, and improved communication distance and reliability compared to the same transmit and receive modules on the market.

In normal (G) FSK mode, it also provides industry-specific receiver sensitivity, as well as very high communication rates ^^

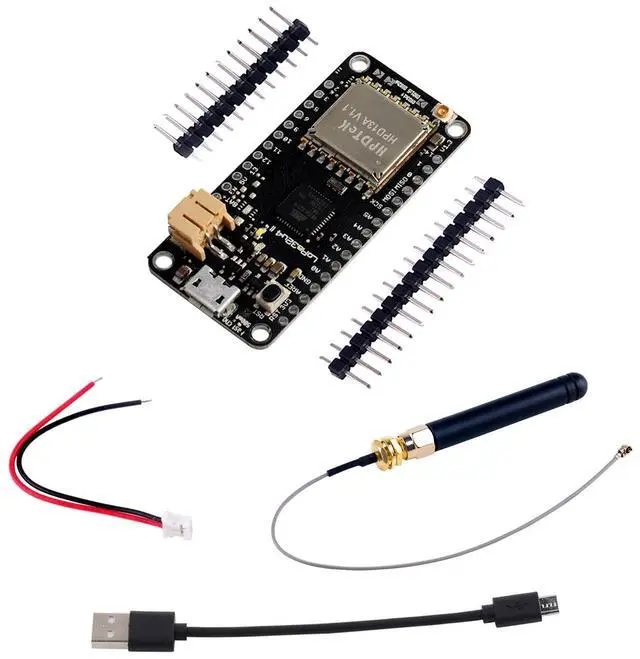

What you will get: 1 x LoRa32u4 II LoRa Development Board + 1 x JST-PH 2.0MM -2P Cable + 1 x 10cm Micro-USB Cable + 2 x Pin ^^

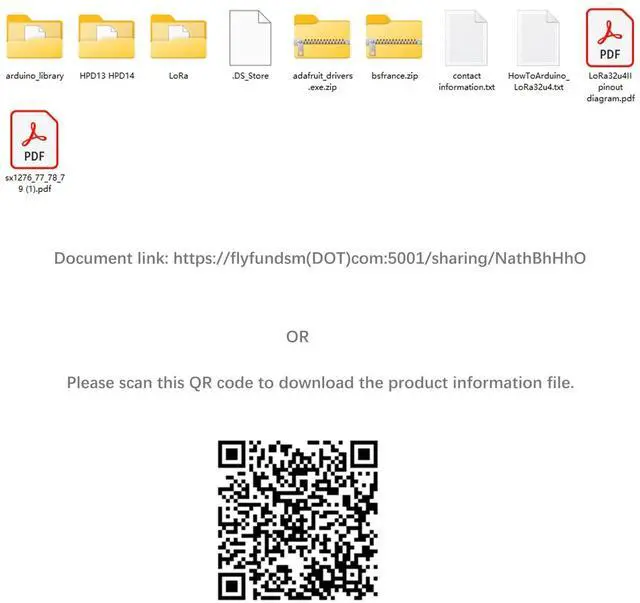

Document link:
https: //flyfundsm
(DOT) com: 5001/sharing/NathBhHhO
