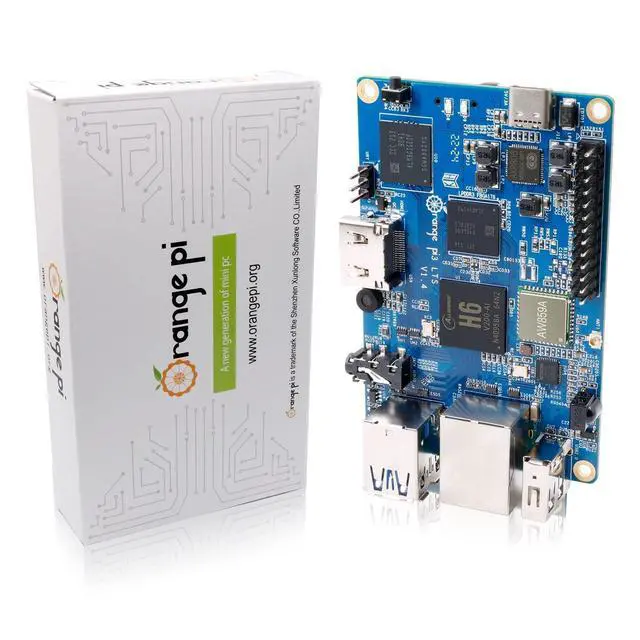

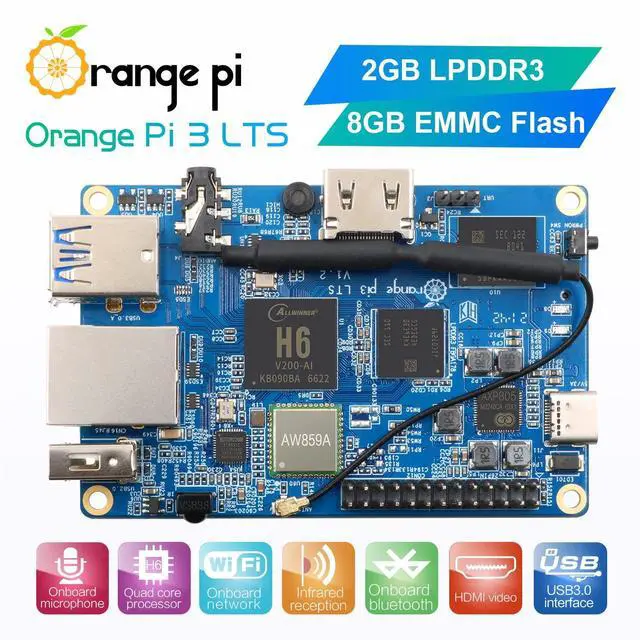

Orange Pi 3 LTS 2GB LPDDR3 Allwinner H6 4-Core 64 Bit with 8GB eMMC Flash Single Board Computer, WiFi/Bluetooth 5.0, Development Board Run Linux/Android/Ubuntu/Debian (2GB+8GB eMMC)
- [High Performance Single Board Computer]: Orange Pi 3 LTS is powered by the Allwinner H6 SoC, featuring 2GB of LPDDR3 SDRAM and built-in 8GB eMMC Flash storage. This single-board computer supports Android 9, Ubuntu, and Debian operating systems, making it ideal for a wide range of applications, from multimedia to networking projects.

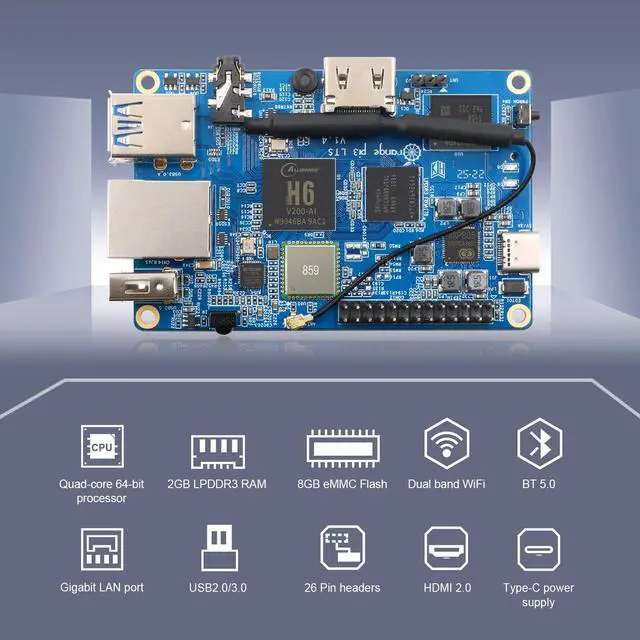

- [Comprehensive Port Options]: Equipped with HDMI output, a 26-pin header, a Gigabit Ethernet port, 1USB 3.0, and 2USB 2.0 ports, the Orange Pi 3 LTS offers extensive connectivity options. Its Type-C power supply ensures a stable power source, making it perfect for high-performance tasks that require reliable networking capabilities.
- [Multi-Functional Networking]: Orange Pi 3 LTS features both Gigabit Ethernet for high-speed wired connections and onboard wireless networking with Bluetooth 5.0. This combination of connectivity options provides flexibility for a wide range of IoT and networking projects.
- [Support for Open Source]: Orange Pi 3
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

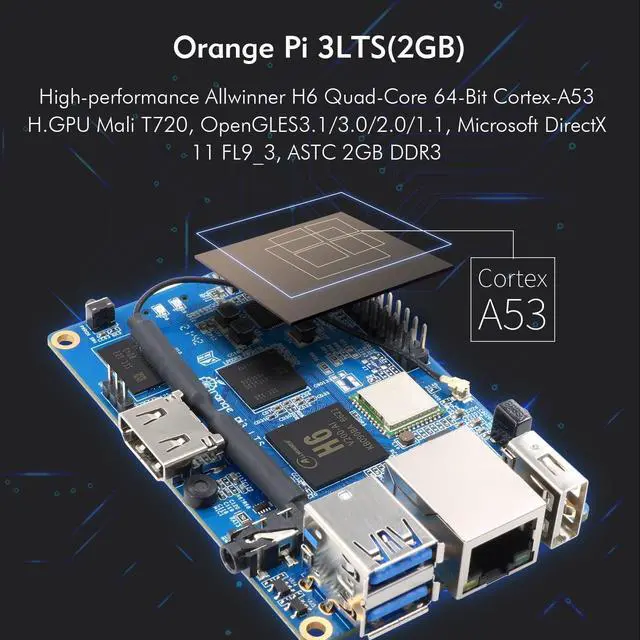

Hardware specificationCPU: Allwinner H6Quad-core 64-bit 1.8GH z high-performance
Cortex-A53 processorGPU: High-performance multi-core GPU Mali T720 OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 Microsoft DirectX 11 FL9_3 ASTC (Adaptive Scalable Texture Compression) Floating point operation greater than 70 GFLOPS
Power management chip:
AXP805RAM: GB LPDDR3 (shared with
GPU) Onboard Storage: Micro SD card slot 8GB
EMMC FlashOnboard Network: YT8531C Chip Support 10/100M/1000M
EthernetOnboard WiFi+Bluetooth: 859 Chip Support IEEE 802.11 a/b/g/n/ac Support BT 5.0V ideo
Output: HDMI 2.0 a
TV CVBS OutputAudio output: HDMI Output 3.5 mm
Audio PortPower Source: 5V3A
Type-CUSB: 1* USB 3.0 HOST2* USB 2.0 HOST
Low-level peripherals 26pin connector with1* I2C, 1*SPI, 1*UART &Multiple
GPIO PortsDebug serial port: UART-TXUART-RX & GND
Button: Power
Button (SW4) LED: Power LED&
Status LEDIR Receiver: Support IR
Remote ControlSupported OS: Android 9.0, Ubuntu, Debian
Cortex-A53 processorGPU: High-performance multi-core GPU Mali T720 OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 Microsoft DirectX 11 FL9_3 ASTC (Adaptive Scalable Texture Compression) Floating point operation greater than 70 GFLOPS
Power management chip:
AXP805RAM: GB LPDDR3 (shared with
GPU) Onboard Storage: Micro SD card slot 8GB
EMMC FlashOnboard Network: YT8531C Chip Support 10/100M/1000M
EthernetOnboard WiFi+Bluetooth: 859 Chip Support IEEE 802.11 a/b/g/n/ac Support BT 5.0V ideo
Output: HDMI 2.0 a
TV CVBS OutputAudio output: HDMI Output 3.5 mm
Audio PortPower Source: 5V3A
Type-CUSB: 1* USB 3.0 HOST2* USB 2.0 HOST
Low-level peripherals 26pin connector with1* I2C, 1*SPI, 1*UART &Multiple
GPIO PortsDebug serial port: UART-TXUART-RX & GND
Button: Power
Button (SW4) LED: Power LED&
Status LEDIR Receiver: Support IR
Remote ControlSupported OS: Android 9.0, Ubuntu, Debian
