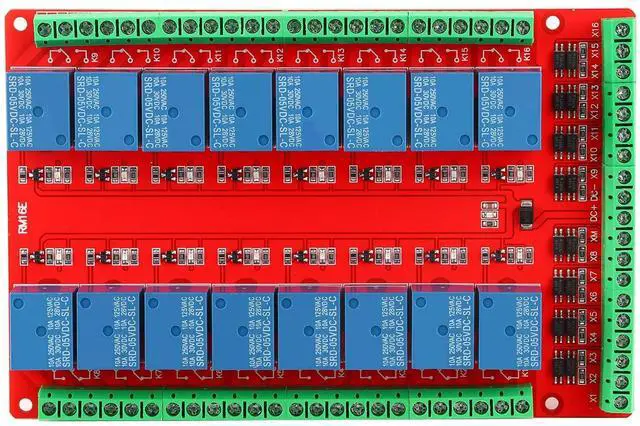

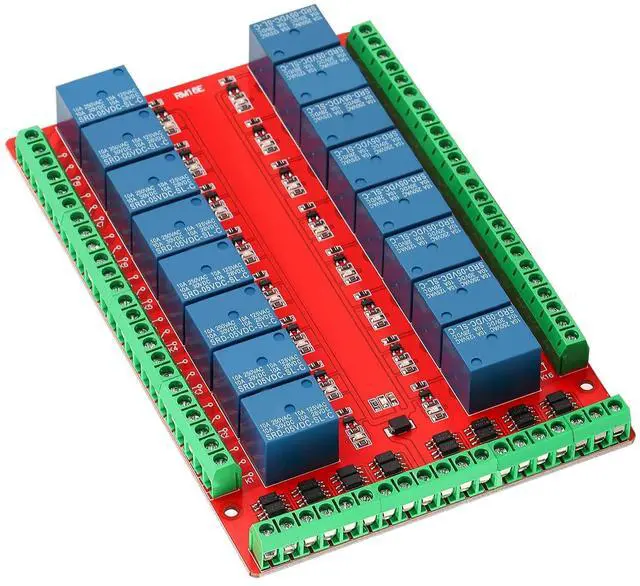

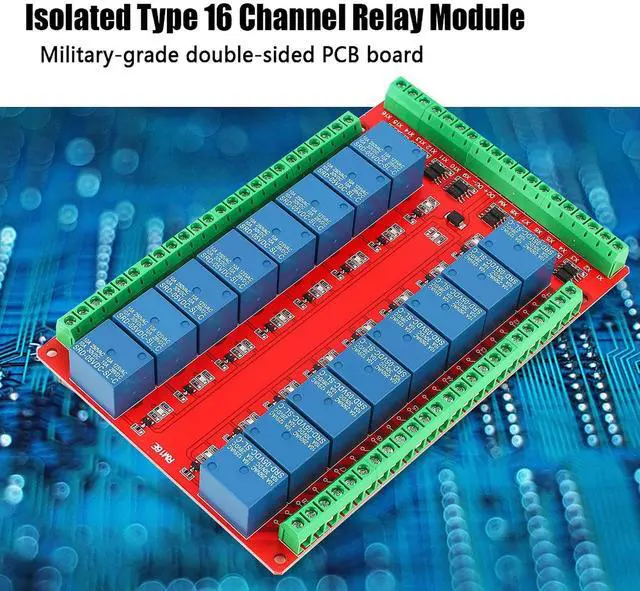

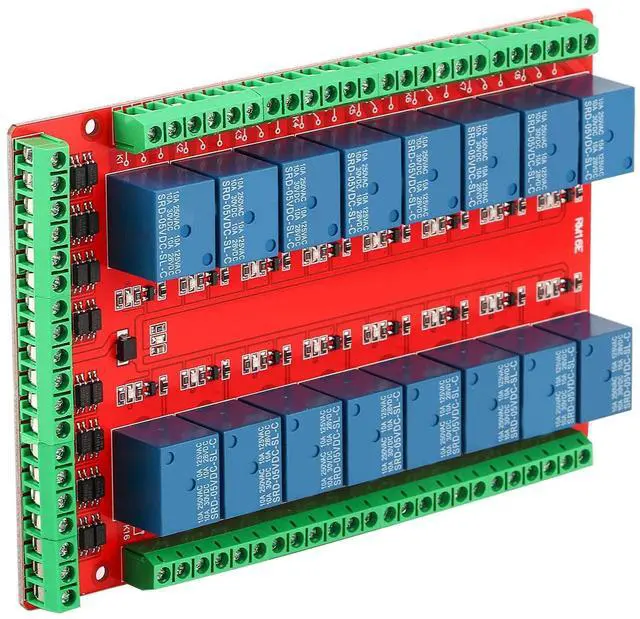

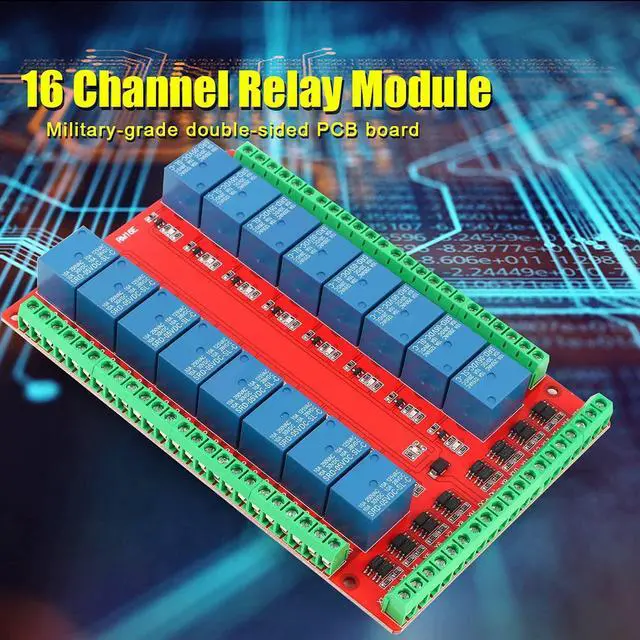

16 Channel Relay Board, High Low Level DC 5/12/24V Two Way Isolated Optocoupler Interface Module, AC 250V 10A, DC 30V/10A, User Friendly Interface, Power Reverse Connection, Strong
- [POWER REVERSE CONNECTION] This module features a power supply reverse connection function to prevent any damage. It employs genuine relays with a rated load of AC 250V/10A, DC 30V/10A, ensuring reliability. The strong anti-interference ability and good performance of the small-sized two-way isolated optocoupler, with a current of only 5mA, make it a robust choice.
- [SELECTABLE CONTROL LEVEL] Users have the flexibility to choose between high-level pull-in or low-level pull-in for the relay control, catering to various needs. With a user-friendly interface design allowing for direct connection via wiring terminals, this module is convenient to use. The presence of power and relay status indicators aids in easy monitoring.
- [VERSATILE USAGE] With a reasonable layout and good performance, this relay module is suitable for a wide range of applications, including pulverized coal control. It can be widely used in power control scenarios due to its relay, optocoupler, and grade PCB board,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. With power supply reverse connection function to prevent damaging the module. 2. The module uses genuine relay, rated load of normally open interface: AC 250V/10A, DC 30V/10A. 3. Using small-sized two-way isolated optocoupler, with strong anti-interference ability and good performance; current is only 5mA. 4. Users can select the control level of the relay, which can be high level pull-in or low level pull-in. 5. The module has built-in finite current resistor. The positive and negative pole control of the power supply can be used directly, or use the I/O port of the single-chip to control.
Specification: Supply
voltage: DC 5V/12V/24V (Optional)
Mounting hole diameter: 3mmModule
size (L*W*H): 15.3 *10* 2.0 cm / 6.0 * 3.9 * 0.8 inPackage weight: Approx.
246g/ 8.7 ozModule interface: Module control interfaces have 16 wiring terminals. 1.
DC+: Connect to DC power supply + (5V, 12V and 24V modules optional)2.
DC-: Connect to DC power supply -3.
XM: Common terminal of optoelectronic isolation chipPackage list: 1 * 16 Channel Relay Module
Specification: Supply
voltage: DC 5V/12V/24V (Optional)
Mounting hole diameter: 3mmModule
size (L*W*H): 15.3 *10* 2.0 cm / 6.0 * 3.9 * 0.8 inPackage weight: Approx.
246g/ 8.7 ozModule interface: Module control interfaces have 16 wiring terminals. 1.
DC+: Connect to DC power supply + (5V, 12V and 24V modules optional)2.
DC-: Connect to DC power supply -3.
XM: Common terminal of optoelectronic isolation chipPackage list: 1 * 16 Channel Relay Module
