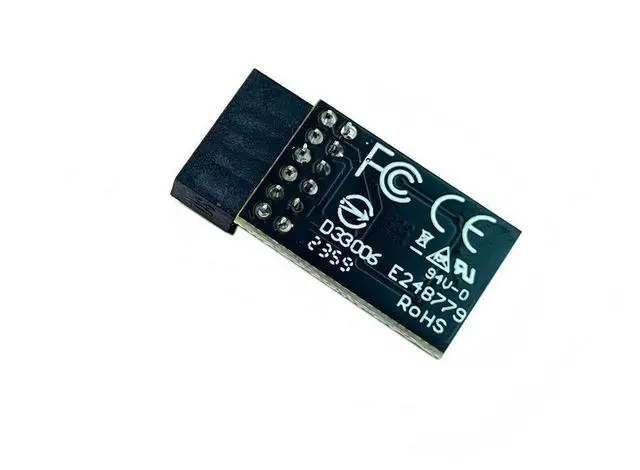

IFIXAI TPM 2.0 Module TPM SPI 12Pin Module for Gigabyte Motherboard B650 Gaming X AX B650E B650M Gaming Z690 UD AX, Z690 AERO Z690M Elite Z790 Compatible with GC-TPM2.0 SPI 2.0

Important Notes: 1. This product is only compatible with older motherboards such as Intel and AMD. It is not compatible with newer motherboard models featuring firmware TPM, all-in-one PCs, or laptops. 2. The minimum hardware requirements for upgrading to Windows 11 via
TPM 2.0 are as follows: a 1 GHz or faster 64-bit processor (dual-core/multi-core), 4 GB of memory, 64 GB of storage space, firmware supporting UEFI Secure Boot and TPM 2.0, a DirectX 12-compatible graphics card, and a display with a resolution of 720p or higher. 3. This product has a 12-pin-1 connector. Please carefully check the pin positions in the image to ensure compatibility with your motherboard before purchasing.
Compatible models: for Gigabyte MotherboardB650 Gaming X AXB650E STEALTH ICEB650E ELITE X AX ICEB650M D3HX SIB650M S2HB650M HB650E PRO X USB4B650M GAMING PLUS WIFIB650M GAMING WIF
Ifor Gigabyte Motherboard Z690 UD AXZ690 UD AX DDR4Z690 UD AX DDR4 V2Z690 UD DDR4 V2Z690 GAMING X DDR4 V2Z690 GAMING X DDR4Z690 MASTERZ690 ELITE AX DDR4 V2Z690 ELITEZ690 ELITE AXZ690 AERO G DDR4Z690 AERO GZ690M ELITE AX DDR4Z690M ELITE DDR4How to select and install a security module: 1. Confirm whether the host has TPM 2.0 or if TPM 2.0 is enabled. 2.
Click Run,
enter: tpm. msc (Win+R keys), and check if the TPM version is ready. 3. If version 2.0 is displayed but not ready, you need to configure settings in the BIOS; consult the motherboard manufacturer's customer service. 4. Open the host and inspect the TPM pins on the motherboard. 5. When installing the module, ensure the chip-side faces inward, align with the pins, and insert fully to prevent loosening. (See image for direction)
Product PerformanceCompatible with: GC-TPM 2.0
SPI 2.0C hipset: SLB9670PIN
DEFINE: 12-pinCore
Applications:
1: Seamless upgrade to
Windows 11: Resolve TPM 2.0 verification issues and easily upgrade to the latest operating system.
2: Enhanced
hardware-level security: Provides an independent secure encryption chip specifically designed for securely storing sensitive data (such as encryption keys, digital certificates, and login credentials), thereby enhancing overall system security.
3: Hardware
encryption acceleration: Reduces CPU load by accelerating encryption operations via dedicated hardware, indirectly improving system response speed and enhancing the smooth operation of certain encryption-dependent applications (such as games and security software).
