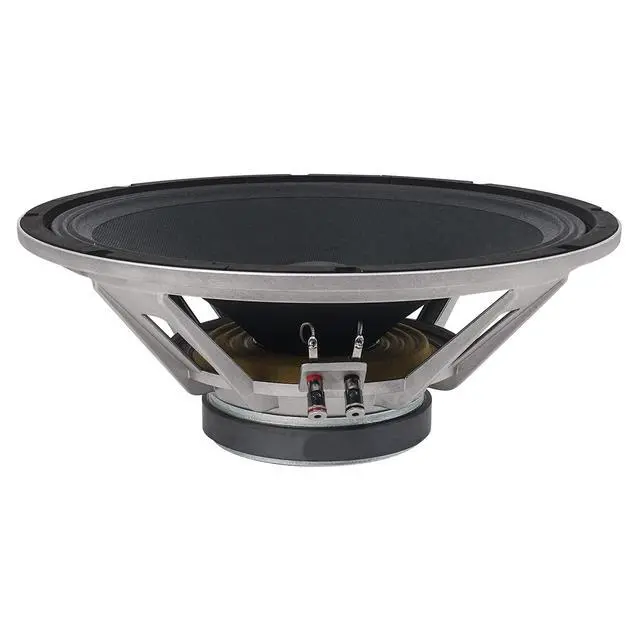

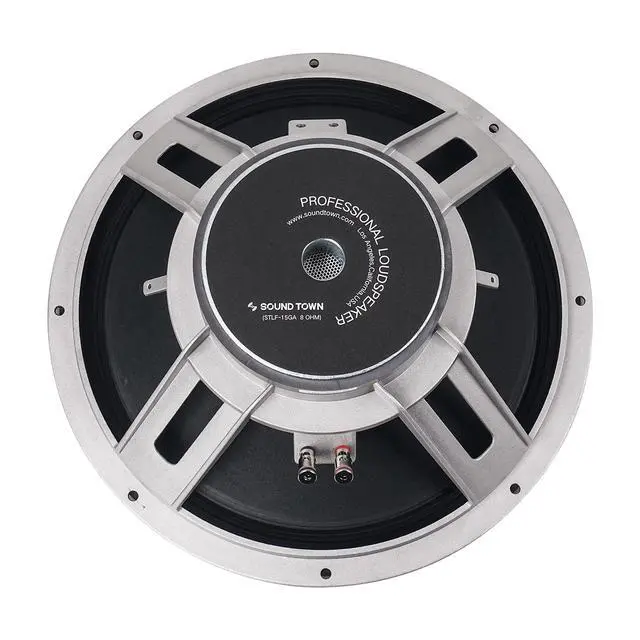

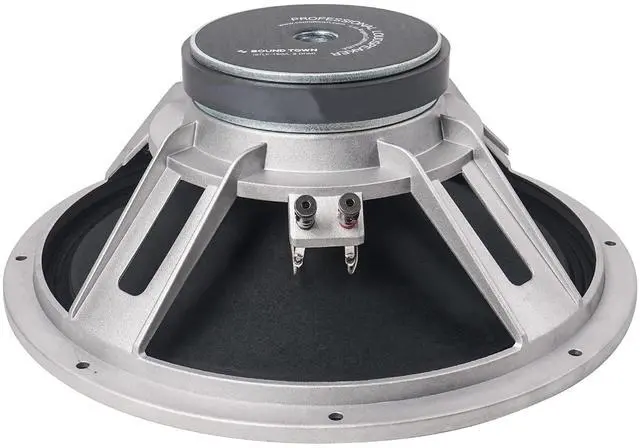

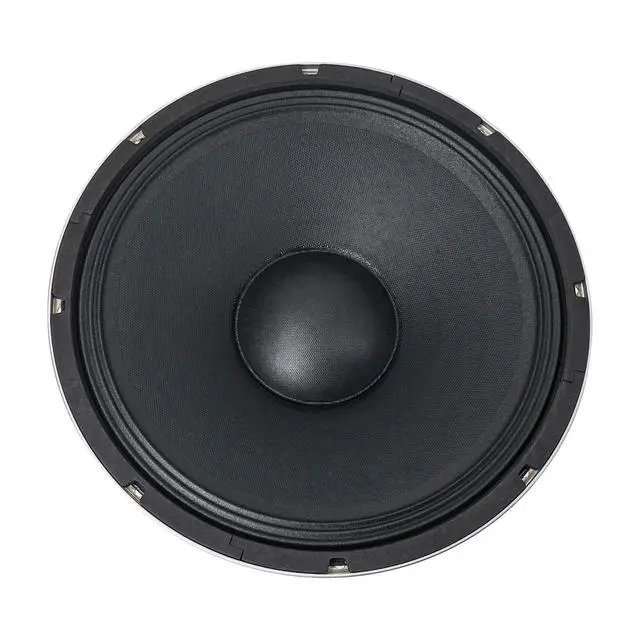

Sound Town 15" 300W Cast Aluminum Frame Woofer w/ 3" Voice Coil, Replacement Woofer for PA/DJ Speaker, Bass Guitar Cabinets (STLF-15GA)

The Sound Town STLF-15GA is a 15" universal replacement woofer for PA/DJ speakers and bass guitar cabinets; it is compatible with the Sound Town PA speakers and speakers of other brands which need a 15" low-frequency driver. The woofer comes with 8-ohm impedance and has a frequency range of 45 Hz - 3.5 kHz. It is built in a cast aluminum chassis and has a paper cone with cloth edge. With 300W RMS, 600W peak power handling capability, the STLF-15GA delivers massive and deep bass and makes a great replacement woofer for your 15-inch PA speakers or bass guitar cabinets.

FEATURES 15" cast aluminum frame 300W RMS, 600W peak power handling at 8-ohm 45 Hz - 3.5 kHz frequency response 3a voice coil and one 50 oz magnet produce super sound Available in single (STLF-15GA)A pair (STLF-15GA-PAIR) or SPECIFICATIONS

Details

Model STLF-15GA Resonance 45Hz Nominal Basket Diameter 15" Frequency Response 45Hz - 3.5 kHz Nominal Impedance 8I Sensitivity 94A3dB Power Rating 300W RMS Magnet Weight 50oz Peak Power 600W Peak Voice Coil Diameter 3" VC Thiele & Small Parameters Resonant Frequency (fs) 45Hz Compliance Equivalent Volume (Vas) 154A liters DC Resistance (Re) 6.3I Mechanical Compliance of Suspension (Cms) 0.145 mm/N Mechanical Q (Qms) 4.32 BL Product (BL) 14.38 Tm Electromagnetic Q (Qes) 0.717 Diaphragm Mass Inc.

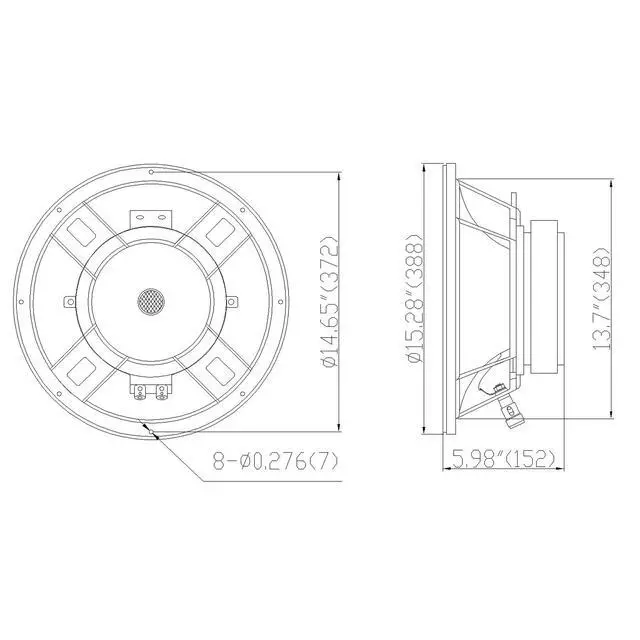

Airload (MMs) 88.53A g Total Q (Qts) 0.615 Surface Area of Cone (Sd) 865.8A cm2 Mounting Information Efficiency Bandwidth 63 Baffle Hole Diameter 13.70", 348mm Sealed 394.8A liters /A 13.94 cu. ft. Installation Position Diameter 14.65", 372mm Vented 496.8A liters / 17.54 cu. ft. Mounting Holes Diameter 8- 0.276", 7mm Overall Diameter 15.28", 388mm Net Weight 10.12 lbs, 4.6 kg Depth 5.98", 152mm Materials ofA Construction Coil Construction Round copper Cone Composition Paper cone Coil Former Aluminum Cone Edge Composition Cloth edge Magnet Composition Ferrite Dust Cap Composition Paper cap Basket Materials Die Cast Aluminum A A Shipping Weight & Dimensions (Single) Shipping Weight 13.0 lbs A Shipping Dimensions 18.3" x 16.3" x 7.6 a A Warranty/Certifications Manufacturer Warranty 1 year A A
