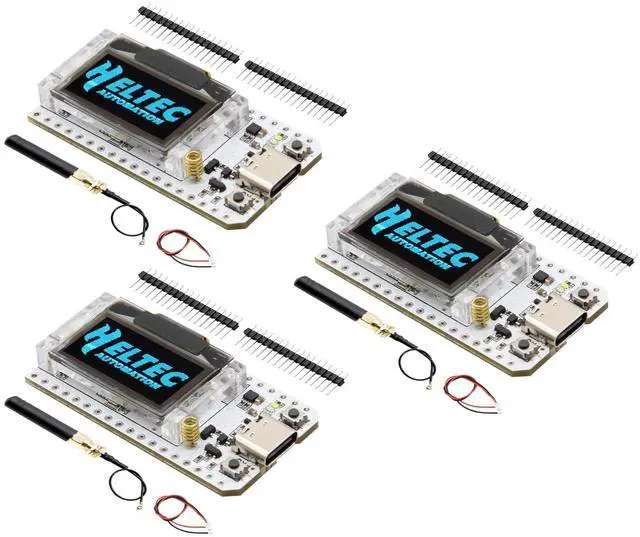

AYWHP 3 PCS ESP32-LoRa-V3 Development Board, LoRa V3 Meshtastic WiFi, ESP32-LoRa V3 WiFi Bluetooth Dual Core SX1262 CP2102 Chip with 0.96" OLED Display and Antenna for Meshtastic Arduino
- Perfect Design: Integrated WiFi, Lora, Bluetooth, three types of network connections, laid WIFI, Bluetooth, and special 2.4GHz metal spring antenna.
- Easy to Use: Reserved IPEX (U.FL) interface for LoRa use. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.
- Supports Arduino Development: Supports LoRaWAN protocol. The Arduino library is a standard LoRa WAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol.
- 0.96inch OLED Display: The LoRa development board is equipped with a 0.96-inch OLED display to show debugging information, battery operation and other information.
- Wide Range of Applications: Because lora has good RF circuit design and low-power design, it is the best choice for smart cities, farms, family, industrial control, family security, wireless metering and IoT developers.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

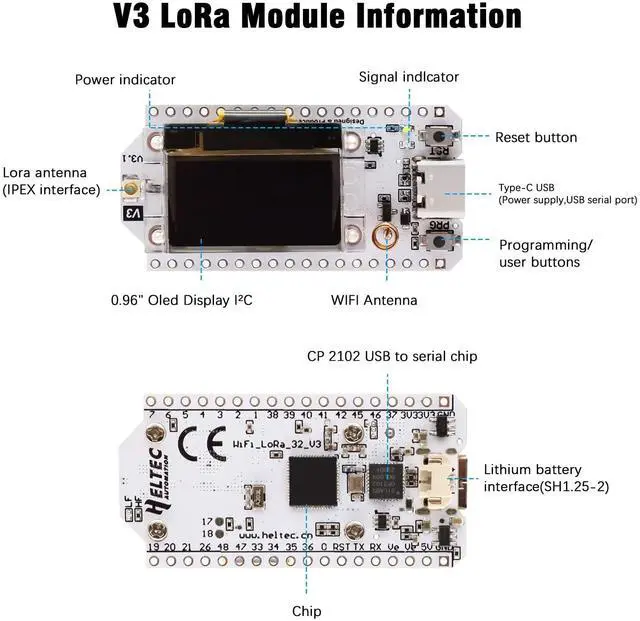

Description: The LORA V3 development board is based on the dual-core microcontroller and integrates WiFi, Bluetooth, and LoRa communication modules to support the 915MHz frequency band, making it suitable for Internet of Things (IoT) project development. The on-board 0.96 -inch OLED display can show real-time data information.
Features:
Processor: Dual
Core,
240MHzWireless: WiFi 802.11 b/g/nBLE 4.2L oRa (SX1262 chip, frequency:
915MHz)Display: 0.96 -inch OLED display (128x64 pixels)
Interface: Arduino pin-compatible design for easy expansionPower supply voltage: 5V USB or 3.7V lithium batteryLow
Power Consumption: Supports deep sleep mode, suitable for low-power applications.
Development Support: Compatible with Arduino IDE
Support LoRaWAN protocolSupport Meshtastic, MicroPython development
Features:
Processor: Dual
Core,
240MHzWireless: WiFi 802.11 b/g/nBLE 4.2L oRa (SX1262 chip, frequency:
915MHz)Display: 0.96 -inch OLED display (128x64 pixels)
Interface: Arduino pin-compatible design for easy expansionPower supply voltage: 5V USB or 3.7V lithium batteryLow
Power Consumption: Supports deep sleep mode, suitable for low-power applications.
Development Support: Compatible with Arduino IDE
Support LoRaWAN protocolSupport Meshtastic, MicroPython development
