SUPERBAT 4G LTE Cellular GPS Combined Antenna Fixed Bracket Wall Mounting SMA Male MIMO Antenna Compatible with 4G LTE Industrial Gateway Mobile Router Trail Camera Modem Vehicle Real Time Tracking
- Active GPS Navigation and MIMO 4G LTE Cellular Omni-directional Combined Antenna;Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 2 x Screws (As the Picture Shown)

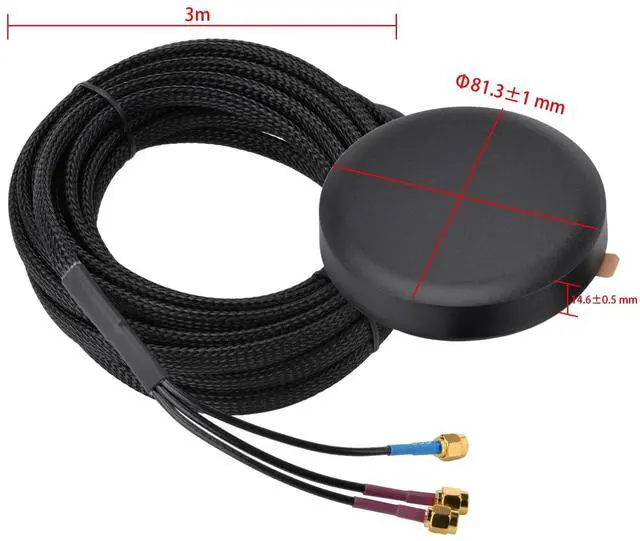

- Feature: 2 x MIMO 4G LTE Cellular Antenna + 1 x GPS Antenna; Mounting: Through Hole Fixed Bracket Wall Mounting; Connector: SMA Male Connector; Cable Length: 3 bars 3 Meters/10ft Cable
- Durable Design: The outer layer of the cable is added with high temperature resistant, high quality braided mesh, which is not easy to break during use and protects the coaxial cable from mechanical abrasion, prolonging its service life
- Compatible with: Vehicle Car 4G LTE TCU Telematics; 4G LTE GPS Tracker Locator; Vehicle Car Real Time Tracking; Vehicle RV Bus Truck Boat Mobile DVR Camera Security Real Time Video Recorder; Bus Truck RV Van Security Alarm System
- Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; Industrial Vending Machine DTU Gateway M
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: 2 x 4G LTE Cellular MIMO + 1 x GPS Combined Antenna; 4G LTE CellularAntenna Specification: Frequency
Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHzV. S. W.
R: <2.0Polarization: LinearGain: 5dBiImpendance: 50GPS Antenna Specification:Center Frequency: L1:1575.42MHz1.023 MHzBand
Width > 9MHzPolarization: RHCP
Gain: 2dBicZenithV. S. W.
R: <
1.5I mpendance: 50Axial
Ratio: 3dBmaxLNA
Gain: 282dBLNA
Noise Figure: < 1.5LNA V. S. W.
R: < 2.0LNA
Supply Voltage: 2.2 ~5V DCLNA
Current Consumption:
5~15mAMechanical:
Cable: RG174 coaxial cableCable
Length: 3
Meters/10ftConnector: 3

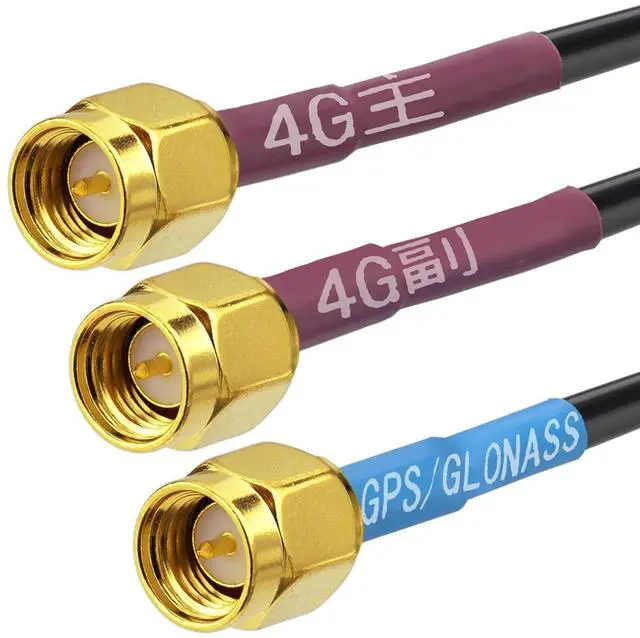

SMA Male ConnectorMaterial: ABS

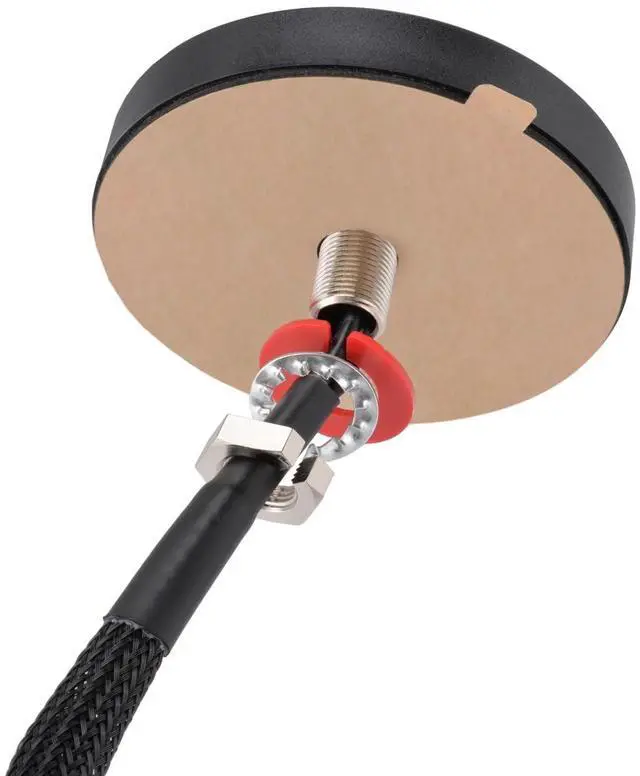

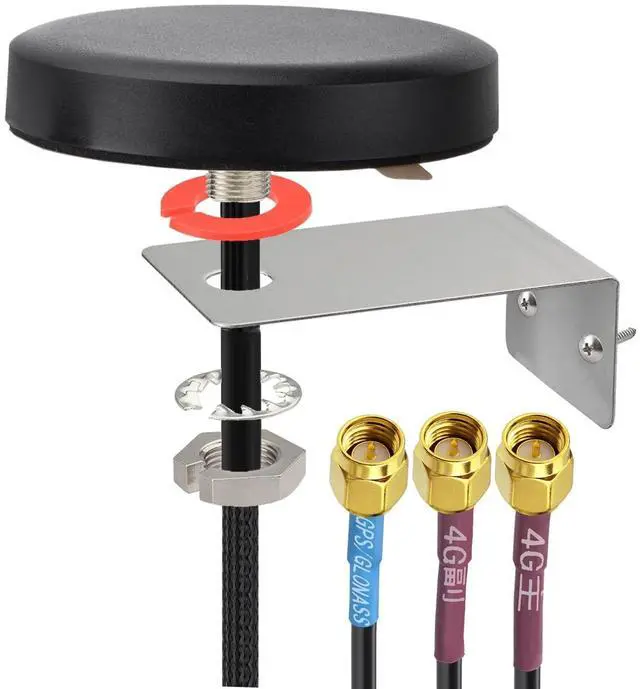

Mounting Method: L-Bracket
Fixed Wall MountingPackage List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 2 x Screws
