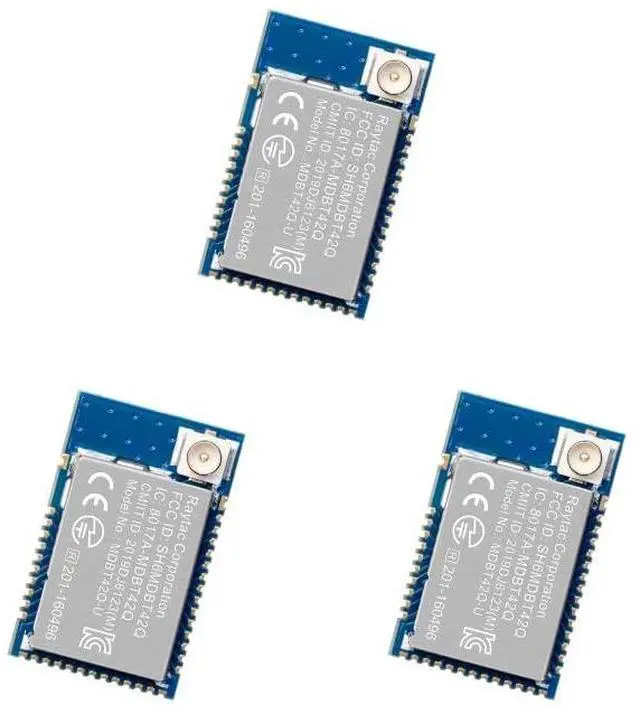

MDBT42Q-U512KV2 Nordic nRF52832 Solution u.FL Connector 32 GPIO Bluetooth Module BT5.2 FCC IC CE Telec KC SRRC (3pcs Pak)
- Nordic nRF52832 u.FL Connector for External Antenna Module / MDBT42Q-U512KV2
- Supports multiprotocol for Bluetooth Low Energy, ANT+, 2.4Ghz RF
- BT5.2, FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM Pre-Certified

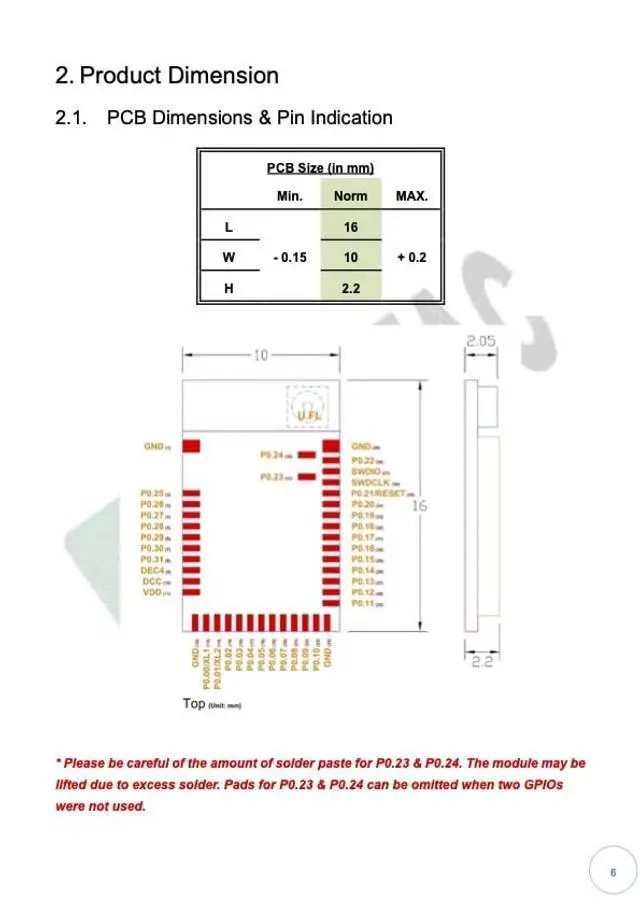

- 32 GPIO / 10 x 16 x 2.2 mm / 512KB Flash Memory / 64kB RAM
- Interface: I2C & SPI & UART & I2S & PDM & PWM & NFC
- RoHS & Reach Compliant
- Operation Temp.: -40C to 85 C (-40F~185F) / 1.7 to 3.6 V supply voltage
- Raytac Part No.: MDBT42Q-U512KV2
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Raytacs MDBT42Q-U512KV2 is a BT 5.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52832 SoC solution, which
incorporates: GPIO, SPI, UART, I2C, I2S, PMD, PWM, ADC, and NFC interfaces for connecting peripherals and sensors.
Features: Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 16 x (W) 10 x (H) 2.2 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
incorporates: GPIO, SPI, UART, I2C, I2S, PMD, PWM, ADC, and NFC interfaces for connecting peripherals and sensors.
Features: Embedded 2.4GH z transceiver supports Bluetooth 5.2 ( ), 2.4G hz RF & ANT+ upon customers preference Compact size with (L) 16 x (W) 10 x (H) 2.2 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
