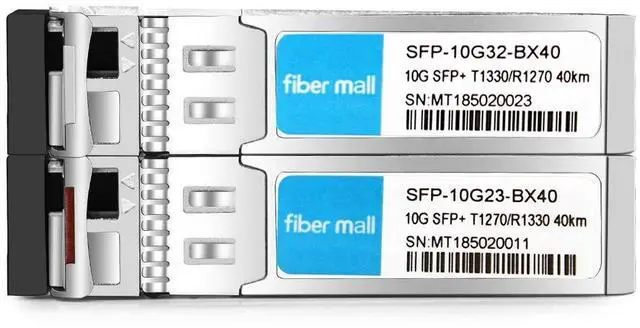

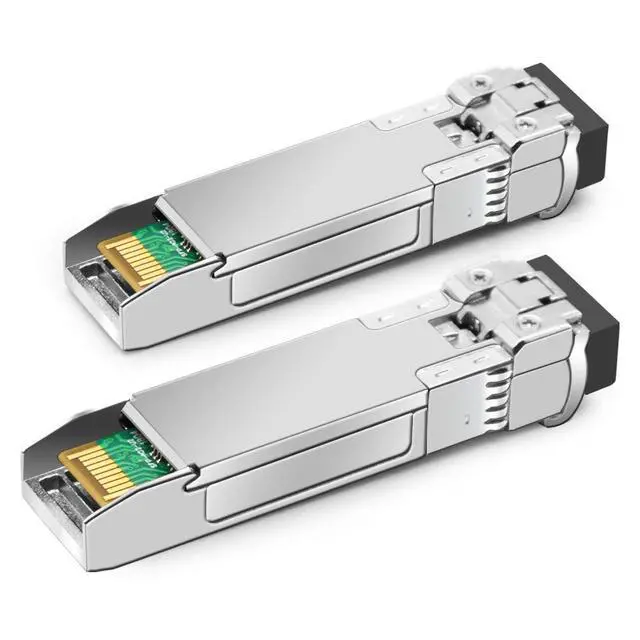

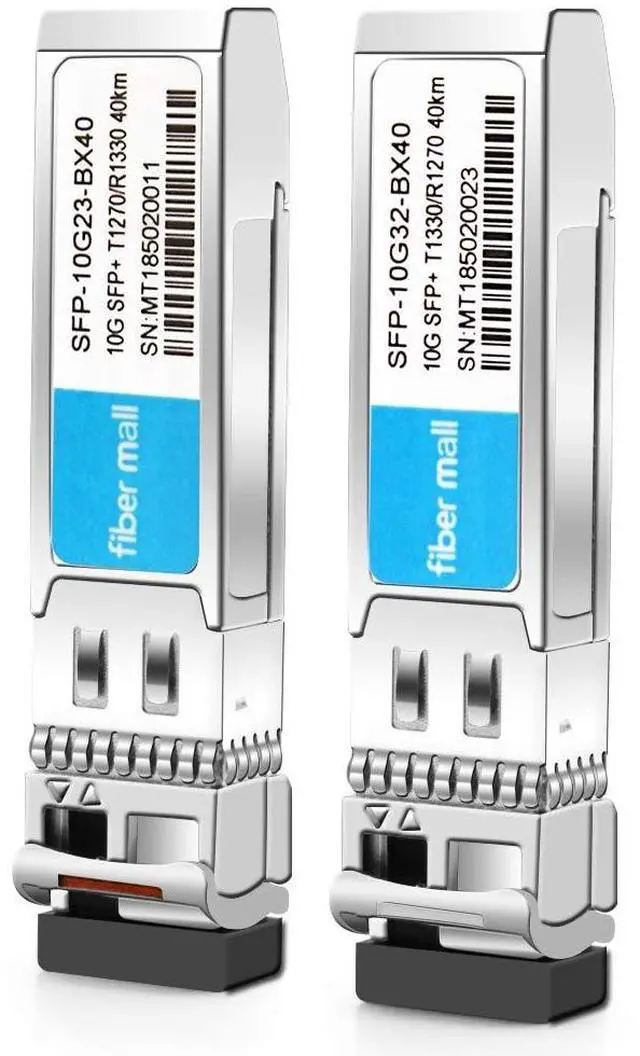

10G BiDi SFP+ Transceiver a Pair for Dell GP-SFP-10GBX-D-40/GP-SFP-10GBX-U-40 Compatible 10GBASE-BX40-D/BX40-U BiDi SFP+ 1270nm and 1330nm 40km DOM Transceiver Module
- 10GBase-BIDI :TX1270nm/RX1330nm and TX1330nm/RX1270nm Use in pairs with Simplex LC Fiber Connector, 10Gbps,40km, 0C~+70C, with DDM
- Wide Compatibility - for Cisco, Ubiquiti, Netgear, D-Link, TP-Link, Linksys, Broadcom, Edge-core, EMC, F5, Meraki, Mikrotik, Norkia, QTC, Supermicro, and Other Open Switches.
- 10GBase-BIDI SFP+ Transceivers modules supporting data rate of 10Gbps and 40km The transceivers are compatible with SFP+ Multi-Source Agreement and SFF-8472 digital diagnostics functions.
- Easy to Use - Easy installation, plug and play, fully hot-pluggable. Widely used in fiber switches routers NIC server or other fiber optic equipments with 10Gb SFP+ ports.
- 3 Warranty - Enjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance Fibermall supports regular custom service for your options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fiber MallDell GP-SFP-10GBX-D-40 and DellGP-SFP-10GBX-U40 Compatible 10G BX SFP+ BIDI Transceiver Modules (1270nm/1330nm SMF 40km LC DDM) should be used together. Both modules follow the SFP Multi-Source Agreement and SFF-8472 digital.

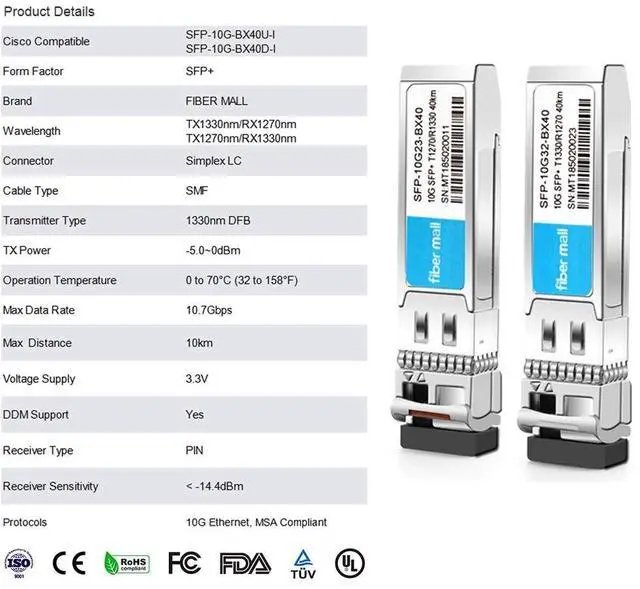

Specificationsv Dell Genuine: GP-SFP-10GBX-D-40/GP-SFP-10GBX-U-40v
Form Type: 10g bidi sfp+v Supports up to 10.7G bps bit ratesv Hot-pluggable SFP+ footprintv 1270nm DFB laser and PIN photodiode, Up to 40km for SMF transmissionv Compliant with SFP+ MSA and SFF-8472 with simplex LC receptaclev Compatible with RoHSv Single + 3.3V power supplyv Real Time Digital Diagnostic Monitoringv Standard: 0 to +70Cv
Industrial: -40 to +85CIntroductionBiDi optical moduleuses WDM (Wavelength Division Multiplexing) to achieve transmission of optical signal in both directions on one fiber. Different from commo optical modules that have one transmit port (TX) and one receive port (RX), this module has only one port to send and receive signals at different wavelengths afterits filter finishes wave filtering. A pair of BiDi modules shall be used together. Applicationsv 10Gbps Optical systemsv 10GBASE-LR at 10.3125G bpsv 10GBASE-LW at 9.953G bpsPackage1*sfp dust cover1 *pair 10Gbps BIDI fiber transceiver module1* package box
Specificationsv Dell Genuine: GP-SFP-10GBX-D-40/GP-SFP-10GBX-U-40v
Form Type: 10g bidi sfp+v Supports up to 10.7G bps bit ratesv Hot-pluggable SFP+ footprintv 1270nm DFB laser and PIN photodiode, Up to 40km for SMF transmissionv Compliant with SFP+ MSA and SFF-8472 with simplex LC receptaclev Compatible with RoHSv Single + 3.3V power supplyv Real Time Digital Diagnostic Monitoringv Standard: 0 to +70Cv
Industrial: -40 to +85CIntroductionBiDi optical moduleuses WDM (Wavelength Division Multiplexing) to achieve transmission of optical signal in both directions on one fiber. Different from commo optical modules that have one transmit port (TX) and one receive port (RX), this module has only one port to send and receive signals at different wavelengths afterits filter finishes wave filtering. A pair of BiDi modules shall be used together. Applicationsv 10Gbps Optical systemsv 10GBASE-LR at 10.3125G bpsv 10GBASE-LW at 9.953G bpsPackage1*sfp dust cover1 *pair 10Gbps BIDI fiber transceiver module1* package box
