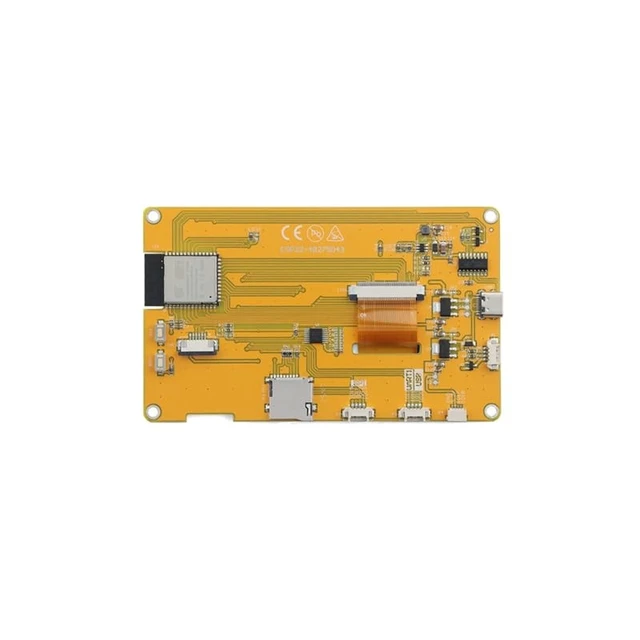

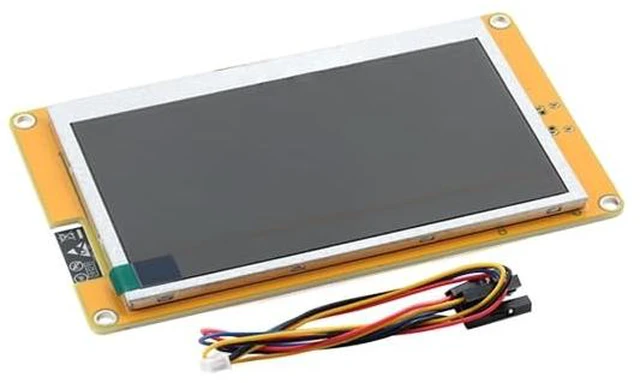

EC Buying ESP32-S3 4.3 Inch LCD Development Board 480x272 TFT Display with WiFi & Bluetooth, Non-Touch Screen, 16MB Flash 8MB PSRAM, LVGL HMI GUI Module
- 4.3 480272 Standard Definition TFT Display: Equipped with a 4.3-inch TFT LCD featuring 480272 resolution and 16-bit RGB 65K color output. The display delivers stable image quality and clear visuals, suitable for dashboards, monitoring interfaces, embedded systems, and automation control panels
- Powerful ESP32-S3 with Integrated WiFi & Bluetooth: Powered by the ESP32-S3 dual-core processor (up to 240MHz), this development board supports 2.4GHz WiFi and Bluetooth for reliable wireless communication. With 16MB Flash and 8MB PSRAM, it provides strong processing capability and memory resources for IoT systems, smart control panels, and industrial HMI applications
- Expandable Interfaces with Memory Card Slot: Provides GPIO, UART, I2C, and SPI interfaces for connecting sensors and peripherals. Includes a memory card slot for storing images, configuration files, and operational data. Operates at 5V with stable current consumption for long-term applications
- Non-Touch Version for E
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description The ESP32-S3 4.3 -inch LCD Development Board is a compact and reliable smart display module designed for HMI (Human-Machine Interface), IoT control systems, and embedded GUI applications. It integrates a 4.3 -inch standard-definition TFT LCD with the powerful ESP32-S3 dual-core MCU, delivering wireless connectivity, display capability, and flexible expansion options in one platform. This version features a 480272 resolution non-touch display, making it suitable for projects controlled by external hardware inputs or communication systems.
Product
Wireless: 2.4GH z WiFi +
Bluetooth Flash Memory: 16MB
PSRAM: 8MB
Display Size: 4.3 inch TFT
LCD Resolution: 480 272 pixels
Display Color: RGB 65K (16-bit)
Touch Type: Non-Touch
Operating Voltage: 5V
DC Working Current: Approx.
400500mA Operating Temperature: -20C to 70C
Storage Temperature: -30C to 80C Main Pin Functions 5V Power supply input GND Ground 3V3 3.3V output for external modules GPIO General-purpose input/output pins UART (TX/RX) Serial communication and debugging I2C (SDA/SCL) Peripheral communication interface SPI (MOSI/MISO/SCK/CS) High-speed communication interface USB Port Programming and power supply Memory Card Slot External storage expansion How to Use Connect the board to a stable 5V power source or PC via USB. Install required drivers and select ESP32-S3 board in Arduino IDE or ESP-IDF. Install LVGL and necessary display libraries. Upload example code to verify display functionality. Develop your custom GUI interface according to your application requirements. Connect external sensors or modules via GPIO, I2C, or SPI. Use the memory card slot to store graphical assets or data files if needed. This 4.3 -inch ESP32-S3 LCD development board provides a dependable and expandable solution for smart home panels, industrial automation systems, and embedded GUI projects requiring wireless connectivity and flexible external control.
Product
Specifications
MCU: ESP32-S3 Dual-Core Processor (up to 240MHz)Wireless: 2.4GH z WiFi +
Bluetooth Flash Memory: 16MB
PSRAM: 8MB
Display Size: 4.3 inch TFT
LCD Resolution: 480 272 pixels
Display Color: RGB 65K (16-bit)
Touch Type: Non-Touch
Operating Voltage: 5V
DC Working Current: Approx.
400500mA Operating Temperature: -20C to 70C
Storage Temperature: -30C to 80C Main Pin Functions 5V Power supply input GND Ground 3V3 3.3V output for external modules GPIO General-purpose input/output pins UART (TX/RX) Serial communication and debugging I2C (SDA/SCL) Peripheral communication interface SPI (MOSI/MISO/SCK/CS) High-speed communication interface USB Port Programming and power supply Memory Card Slot External storage expansion How to Use Connect the board to a stable 5V power source or PC via USB. Install required drivers and select ESP32-S3 board in Arduino IDE or ESP-IDF. Install LVGL and necessary display libraries. Upload example code to verify display functionality. Develop your custom GUI interface according to your application requirements. Connect external sensors or modules via GPIO, I2C, or SPI. Use the memory card slot to store graphical assets or data files if needed. This 4.3 -inch ESP32-S3 LCD development board provides a dependable and expandable solution for smart home panels, industrial automation systems, and embedded GUI projects requiring wireless connectivity and flexible external control.
